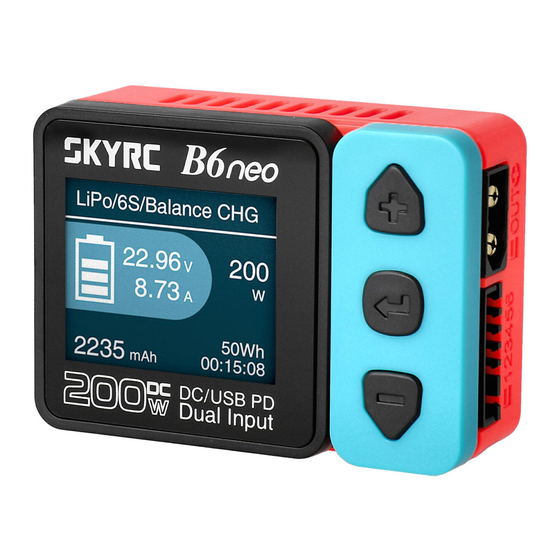

Skyrc B6neo Instruction Manual

Smart charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

V1.0
Smart Charger
Instruction Manual
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B6neo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skyrc B6neo

Summary of Contents for Skyrc B6neo

  • Page 1 V1.0 Smart Charger Instruction Manual - 1 -...

  • Page 2: Table Of Contents

    Introduction Chart Specification Warning Standard Battery Parameters Explanation of Buttons Power and Battery Connection Operation Description Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-Acid Battery Program DC Power Voltage Calibration Errors and Warnings System Setting Conformity Declaration Warranty and Service - 2 -...

  • Page 3: Introduction

    Therefore, it is extremely important that you read the Operating Instructions, Warnings and Safety Notes thoroughly before using B6neo. It is our hope that B6neo will give you many years of pleasure and success.

  • Page 4: Chart

    Chart PD INPUT 123456 DC IN 10-28V - 2 -...
  • Page 5 DC Input, 10.0-28.0V/12A current program, enter into the setting, etc. PD Input, must comply with PD3.0 specification scroll down, decrease the current, etc. Package 1*SkyRC B6neo Charger 1*Quick Start Guide - 3 -...

  • Page 6: Specification

    Specifications Item Option Specs 10.0-28.0V Input voltage PD3.0/QC 12.0-20.0V Input current 200W Max. output power LiPo/LiFe/LiIon/LiHV Balance CHG, Charge, Storage, Discharge Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, NiMH/NiCd Discharge Working mode Normal, AGM Charge, Cold Charge, Discharge DC power supply 5.0-27.0V, 1.0-10.0A - 4 -...
  • Page 7 LiPo/LiFe/LiIon/LiHV 1S-6S Battery type/cells NiMH/NiCd 1S-15S 3S/6S LiPo/LiFe/LiIon/LiHV 0.2A-10.0A Charge current NiMH/NiCd 0.2A-10.0A 0.2A-10.0A Discharge current Current 0.1A-2A Power Max. 24W (±10%) based on 6S(4.2V/cell) Balance current LiPo/LiFe/LiIon/LiHV Max.500mA Size 70x50x32mm Weight - 5 -...

  • Page 8: Warning

    Warning B6neo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety.

  • Page 9: Standard Battery Parameters

    Always use only rechargeable batteries designed for use with this type of charger. Never use the charger on car seats, carpets, or similar surfaces. Always operate the charger away from flammable and explosive materials. Standard Battery Parameters LiPo Lilon LiFe LiHV MiMH NiCd...

  • Page 10: Explanation Of Buttons

    Standard Battery Parameters Go through the menus and increase the parameter value. Enter the setting, confirm the choice, terminate the progress, or go back to the previous screen. Go through the menus and decrease the parameter value. - 8 -...

  • Page 11: Power And Battery Connection

    Standard Battery Parameters 1. Connecting to a power source There are two options of inputs for SkyRC B6neo, DC 10.0-28.0V and PD3.0 12.0-20.0V PD INPUT DC IN 10-28V DC 10.0-28.0V PD3.0 12.0-20.0V power source power supply connection. connection. 2. Connecting the battery TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS TO THE CHARGER FIRST, AND THEN TO THE BATTERY.
  • Page 12 1) Lithium Battery Connection with Balance Adapter For safety reasons, it is highly recommended to charge Lithium batteries (LiPo, Lilon, LiFe and LiHV) using Balance CHG mode, unless the battery comes without a balance wire. The balance wire attached to the battery must be connected to the charger with the black wire aligned with the negative marking.

  • Page 13: Operation Description

    2) NiMH/NiCd or Pb Battery Connection Specifications Battery Type Working Mode Description To charge the lithium battery in balance mode so that the voltages of each cell can be well balanced. Balance CHG The balance lead must be connected. LiPo Lilon Charge To charge the lithium battery without a balance lead connected.
  • Page 14 Cold Charge preferences. To discharge the Pb battery to a specific value, which can be Discharge set before discharging. In this chart, you can see which operations B6neo is capable of performing based on the type of battery. - 12 -...

  • Page 15: Lithium Battery Program(Lipo/Life/Lilon/Lihv)

    Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) Here is a flowchart to guide you to set up the program. LiPo/6S/Balance CHG Enter charge setting 0.00 0.00 Press ENTER to enter Charge Setting; 0.0Wh 00:00:00 Charge Setting LiPo Battery type select Battery Type: LiPo Lilo Battery Cell: 6S(22.2V) Press ENTER to call out the Battery Type menu, and...
  • Page 16 Charge Setting Battery cell select Battery Type: LiPo Call out the Battery Cell menu, and select the battery Battery Cell: 6S(22.2V) cells correspondingly. Task: Balance CHG Conditon: 4.20V Charge Setting Task select Banlance CHG Battery Type: LiPo Charge Call out the Task menu, and select your desired working Battery Cell: 6S(22.2V) Storage mode.
  • Page 17 Charge Setting Charge/Discharge current select 9.6A Conditon: 4.20V 9.7A Call out the Battery Cell menu, and select the battery Charge Current: 10.0A 9.8A cells correspondingly. Start 9.9A 10.0A Back Charge Setting Start Conditon: 4.20V Confirm to initiate the program. Charge Current: 10.0A Start Back Charge Setting...

  • Page 18: Nimh/Nicd Battery Program

    LiPo/6S/Balance CHG Stop 22.96 To terminate the current program, press ENTER 8.73 button once. 50Wh 2235 00:15:08 Do not connect the battery before turning on the charger! NiMH/NiCd Battery Program Here is a flowchart to guide you to set up the program. LiPo/6S/Balance CHG Enter charge setting 0.00...
  • Page 19 Charge Setting Battery type select LiFe Battery Type: LiPo LiHV Press ENTER to call out the Battery Type menu, and Battery Cell: 6S(22.2V) MiMH select NiMH or NiCd. Task: Balance CHG NiCd Conditon: 4.20V Charge Setting Battery cell select Battery Type: LiPo Call out the Battery Cell menu, and select the battery Battery Cell: 6S(22.2V)
  • Page 20 Charge Setting Condition select -4 mV Conditon: -5 mV Call out the Condition menu, and adapt the cut-off Charge Current: -6 mV voltage to the demand. Start -7 mV -8 mV Back Charge/Discharge current select Charge Setting Call out the Charge/Discharge Current menu, and adapt 9.6A Conditon: 4.20V...
  • Page 21 Charge Setting Back Conditon: 4.20V Confirm to initiate the program. Charge Current: 10.0A Start Back LiPo/6S/Balance CHG Stop 22.96 To terminate the current program, press ENTER 8.73 button once. 50Wh 2235 00:15:08 Do not connect the battery before turning on the charger! - 19 -...

  • Page 22: Pb Lead-Acid Battery Program

    Pb Lead-Acid Battery Program Here is a flowchart to guide you to set up the program. LiPo/6S/Balance CHG Enter charge setting 0.00 0.00 Press ENTER to enter Charge Setting; 0.0Wh 00:00:00 Charge Setting Battery type select LiFe Battery Type: LiPo Press ENTER to call out the Battery Type menu, and LiHV...
  • Page 23 Charge Setting Battery cell select Battery Type: LiPo Call out the Battery Cell menu, and select the battery Battery Cell: 6S(22.2V) cells correspondingly. Task: Balance CHG Conditon: 4.20V Charge Setting Task select Normal Battery Type: LiPo AGM Charge Scroll to Task, call out the menu and scroll to select the Battery Cell: 6S(22.2V) Cold Charge working mode.
  • Page 24 Charge Setting Charge/Discharge current select 9.6A Conditon: 4.20V 9.7A Call out the Charge/Discharge Current menu, and adapt Charge Current: 10.0A 9.8A the working current to the demand. Start 9.9A 10.0A Back Charge Setting Start Conditon: 4.20V Confirm to initiate the program. Charge Current: 10.0A Start Back...

  • Page 25: Dc Power

    LiPo/6S/Balance CHG Stop 22.96 To terminate the current program, press ENTER 8.73 button once. 50Wh 2235 00:15:08 Do not connect the battery before turning on the charger! DC Power LiPo/6S/Balance CHG 0.00 On the main interface, hold the ENTER button for 0.00 seconds to enter the system setting.
  • Page 26 Charge Setting *Connect your desired Task Parameters DC equipment. System Setting DC Power Battery Meter >DC Power Select the option Voltage: 12.0V of DC Power, then Current: 4.2V adjust the output Start voltage and current. Back DC Power Start to activate the power function after setting up. 11.86 4.89 Set: 12.00V 5.00A...

  • Page 27: Voltage Calibration

    Voltage Calibration 1. On the main interface, press + twice to enter the interface of battery resistance. 2. Connect the 6S battery to B6neo. 3. Hold the ENTER and + buttons together to enter the calibration interface. 4. Press + button to go through the voltage of each cell.

  • Page 28: Errors And Warnings

    Errors and Warnings In the event of a fault, B6neo will display an error message. Error Message Explanation DC In Too Low! DC input voltage is lower than preset! DC In Too High! DC input voltage is higher than preset!

  • Page 29: System Setting

    System Setting On the main interface, hold the Start button for seconds to enter the system setting. Menu Option Definition Safety Timer Customize a period for program protection. Max.Capacity Customize the protection of capacity. Task Trickle Charge Enable/disable trickle charge. Parameters Holding Voltage Back...

  • Page 30: Conformity Declaration

    System Info Press ENTER to return to the system setting. System Upgrade the charger. Upgrade Back Back to the previous interface. Conformity Declaration SkyRC B6neo satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B. - 28 -...

  • Page 31: Warranty And Service

    This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device.
  • Page 32 Smart Charger DC/USB PD Dual Input Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com The manual is subject to change without notice; please refer to our website for the latest version! 2023.05 - 30 -...
