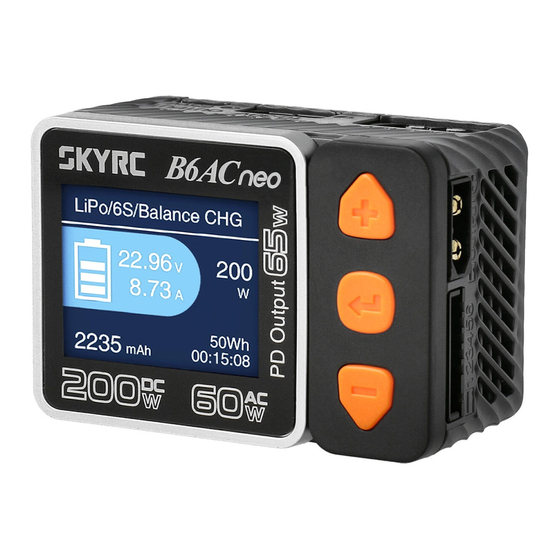

Skyrc B6AC neo Instruction Manual

Skyrc B6AC neo Instruction Manual

Ac/dc smart charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V1.0
AC/DC Smart Charger
Instruction Manual
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for Skyrc B6AC neo

Summary of Contents for Skyrc B6AC neo

  • Page 1 V1.0 AC/DC Smart Charger Instruction Manual - 1 -...

  • Page 2: Table Of Contents

    Introduction Chart Package Specification Warning Standard Battery Parameters Buttons Explained Power and Battery Connection Charging Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-Acid Battery Program DC Power USB Type-C PD/QC3.0 Output Voltage Calibration (For expert user only) Battery Voltage Meter Battery Resistance Meter Firmware Upgrade Charge Settings...

  • Page 3: Introduction

    Introduction Congratulations on your choice of SkyRC B6ACneo smart charger. B6ACneo boasts a stylish and ultra-compact design, but operating it effectively requires some knowledge. These operating instructions aim to quickly acquaint you with its functions. Therefore, it's vital to thoroughly review the Operating Instructions, Warnings, and Safety Notes before using B6ACneo.

  • Page 4: Chart

    Chart - 2 -...

  • Page 5: Package

    LCD display Main Port / DC Output Port Selection Buttons AC Input 100-240V Confirm Button DC Input 10.0-30.0V/12A PD Output 65W Selection Buttons Balance port Smart Ventilation Fan Package 1*SkyRC B6ACneo Charger 1*AC Power Cord 1*Quick Start Guide - 3 -...

  • Page 6: Specification

    Specifications Item Option Specs 100-240V (50/60Hz) Input Voltage 10.0-30.0V Input Current 12.0A Charge Power 200W Main Port Discharge Power Main Port+Balance Port 19W Max (LiPo/6S) LiPo/LiFe/LiIon/LiHV/ Charge Current 0.2-10.0A NiMH/NiCd/Pb LiPo/LiFe/LiIon/LiHV/ Discharge Current 0.1-2.0A NiMH/NiCd/Pb Balance Current LiPo/LiFe/LiIon/LiHV 500mA Max Trickle Charge Current NiMH/NiCd 200mA &...
  • Page 7 Item Option Specs LiPo/LiFe/LiIon/ 1-6S LiHV Battery Types NiMH/NiCd 1-15S 3S/6S LiPo/LiFe/LiIon/ Balance CHG, Charge, Storage, Discharge LiHV Working Modes NiMH/NiCd Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Dishcarge Normal, AGM Charge, Cold Charge, Discharge Voltage 2.0-27.0V DC Power Current 1.0-10.0A Supply AC Input: 60W Power DC Input: 200W QC3.0...
  • Page 8 Item Option Specs Size Length*Width*Height 70.6*50.6*46mm Weight Net Weight 150g Working Temperature 0℃ -40℃ Working Environment 0%-75% Working Humidity Storage Temperature -10℃ -70℃ Storage Environment Storage Humidity 0%-75% - 6 -...

  • Page 9: Warning

    Warning B6ACneo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety. Failure to exercise caution while using this product and comply with the following warnings could result in a product malfunction, electrical issues, excessive heat, FIRE, and ultimately injury and property damage.

  • Page 10: Standard Battery Parameters

    Always use only rechargeable batteries designed for use with this type of charger. Never use the charger on car seats, carpets, or similar surfaces. Always operate the charger away from flammable and explosive materials. Standard Battery Parameters LiPo Lilon LiFe LiHV MiMH NiCd...

  • Page 11: Buttons Explained

    Buttons Explained Go through the menus or increase the parameter value Enter the setting, confirm the choice and stop the progress Go through the menus or decrease the parameter value - 9 -...
  • Page 13 1) LiPo Battery Connection with Balance Adapter For safety reasons, it is highly recommended to charge Lithium batteries (LiPo, Lilon, LiFe and LiHV) using Balance CHG mode unless the battery comes without a balance connector. The battery balance connector must connect to the charger with the black wire aligned with the negative marking.

  • Page 14: Charging

    2) NiMH/NiCd or Pb Battery Connection Charging Battery Type Working Mode Description This mode is to balance charge the lithium battery based on Balance CHG the charging rate the user set. It can balance each cells of the battery. LiPo This mode is to charge the lithium battery based on the charging Charge Lilon...
  • Page 15 This mode is to charge the NiMH/NiCd battery based on the Charge charging rate selected. In re-peak charge mode, the charger can peak charge the Re-Peak battery twice in a row automatically. This is good for confirming the battery is fully charged. 1 to 3 cyclic and continuous process of discharge>charge is NiMH Cycle_C_D...

  • Page 16: Lithium Battery Program(Lipo/Life/Lilon/Lihv)

    Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) Here is a flowchart to guide you to set up the program. LiPo/6S/Balance CHG Enter Charge Setting 0.00 0.00 Press button to enter Charge Setting. 0.0Wh 00:00:00 Charge Setting LiPo Select Battery Type Battery Type: LiPo Lilo Battery Cell: 6S(22.2V) Press button to call out the Battery Type menu, and...
  • Page 17 Charge Setting Select Battery Cell Battery Type: LiPo Press button to select the correct battery Battery Cell: 6S(22.2V) cells. Task: Balance CHG Condition: 4.20V Charge Setting Select Task Banlance CHG Battery Type: LiPo Charge Press button to select your desired working Battery Cell: 6S(22.2V) Storage mode.
  • Page 18 Charge Setting Select Charge/Discharge Current 9.6A Condition: 4.20V 9.7A Press button to select the current. Charge Current: 10.0A 9.8A Start 9.9A 10.0A Back Charge Setting Start Condition: 4.20V Press button to initiate the program. Charge Current: 10.0A Start Back Charge Setting Back Condition: 4.20V...

  • Page 19: Nimh/Nicd Battery Program

    LiPo/6S/Balance CHG Stop 22.96 Press button to stop the program, If prompted to 8.73 stop, short-press the again to confirm, or short-press button to return. 50Wh 2235 00:15:08 Do not connect the battery before turning on the charger! NiMH/NiCd Battery Program Here is a flowchart to guide you to set up the program.
  • Page 20 Charge Setting Select Battery Type LiFe Battery Type: LiPo LiHV Press button to call out the Battery Type menu, and Battery Cell: 6S(22.2V) NiMH select NiMH. Task: Balance CHG NiCd Condition: 4.20V Charge Setting Select Battery Cell Battery Type: LiPo Press button to select the correct battery Battery Cell: 6S(22.2V)
  • Page 21 Charge Setting Select Condition -4 mV Condition: -5 mV Press button to set the delta voltage. Charge Current: -6 mV Start -7 mV -8 mV Back Charge Setting Select Charge/Discharge Current 9.6A Condition: 4.20V 9.7A Press button to select the current. Charge Current: 10.0A 9.8A Start...
  • Page 22 Charge Setting Back Condition: 4.20V Press button to step back to the main Charge Current: 10.0A interface. Start Back NiMH/8S/Charge Stop 10.47 Press button to stop the program, If prompted to 2.53 stop, short-press the again to confirm, or short-press button to return.

  • Page 23: Pb Lead-Acid Battery Program

    Pb Lead-Acid Battery Program Here is a flowchart to guide you to set up the program. LiPo/6S/Balance CHG Enter Charge Setting 0.00 0.00 Press ENTER to enter Charge Setting; 0.0Wh 00:00:00 Charge Setting Select Battery Type LiFe Battery Type: LiPo Press button to call out the Battery Type menu, and LiHV...
  • Page 24 Charge Setting Select Battery Cell Battery Type: LiPo Battery Cell: 6S(22.2V) Press button to select the correct battery cells. Task: Balance CHG Condition: 4.20V Charge Setting Select Task Normal Battery Type: LiPo AGM Charge Press button to select your desired working Battery Cell: 6S(22.2V) Cold Charge mode.
  • Page 25 Charge Setting Select Charge/Discharge Current 9.6A Condition: 4.20V 9.7A Press button to select the current. Charge Current: 10.0A 9.8A Start 9.9A 10.0A Back Charge Setting Start Condition: 4.20V Press button to initiate the program. Charge Current: 10.0A Start Back Charge Setting Back Condition: 4.20V...

  • Page 26: Dc Power

    Stop PB/6S/Normal Press button to stop the program, If prompted to 1.47 8.53 stop, short-press the again to confirm, or short-press button to return. 00:10:09 Do not connect the battery before turning on the charger! DC Power LiPo/6S/Balance CHG 0.00 On the main menu, hold the button for two seconds 0.00...
  • Page 27 System Setting *Connect your desired Task Parameters DC equipment. System Setting DC Power Battery Meter >DC Power Select the options Voltage: 12.0V of DC Power: adjust Current: 4.2V the output voltage Start and current. Back DC Power Select Start to activate the DC Power working 20.00 mode and then connect your desired DC 10.00...
  • Page 28 When acting as a digital power supply, B6ACneo can regulate its output voltage or current at a constant level. Constant Current(CC) Mode and Constant Voltage(CV) Mode can switch automatically as follows: If R load > (V out / I out), then the power supply is in CV mode If R load <...
  • Page 29 *Benefits of using a CC/CV mode DC power supply explained: 1. Versatility: CC/CV power supplies are versatile because they can switch between constant current and constant voltage modes. This makes them suitable for a wide range of applications, from powering delicate electronics to driving high-power devices.
  • Page 30 4. Optimized for Various Loads: Some loads require a specific voltage to operate correctly, while others need a particular current. A CC/CV power supply can adapt to these needs, providing a stable and suitable power output under various load conditions. 5.

  • Page 31: Usb Type-C Pd/Qc3.0 Output

    MacBook, this powerful port ensures that you can fuel up your devices in a fraction of the time. Voltage Calibration (For expert user only) You can calibrate the voltage directly on the charger with a 6S LiPo battery. For more information, please contact us at info@skyrc.com - 29 -...

  • Page 32: Battery Voltage Meter

    Battery Voltage Meter B6ACneo measures the lithium battery voltage easily and conveniently.Use the balance port to connect the lithium battery directly to B6ACneo. B6ACneo lights up and displays battery voltage without power on. - 30 -...

  • Page 33: Battery Resistance Meter

    Battery Resistance Meter LiPo/6S/Balance CHG Power on B6ACneo, and hold the button 0.00 0.00 for seconds to enter the System Setting. Connect the battery to B6ACneo and scroll 0.0Wh 00:00:00 down to Battery Meter Press button to measure the battery Charge Setting voltage and resistance.

  • Page 34: Firmware Upgrade

    Firmware Upgrade 1. Download the latest Charger Master onto your desktop. Unzip and open it; 2. Press the UP and DOWN buttons, then connect the power cord; B6ACneo will power on with a blue screen notice. 3. Connect B6ACneo to your computer via a USB type-C cable; 4.

  • Page 35: Charge Settings

    Charge Settings Short press the ENTER button to enter the Charge Setting. Menu Definition Battery Type Select the desired battery type. (LiPo, LiIon, LiFe, LiHV, NiMH, NiCd, PB) Select the number of battery cells by different battery type. (Li-xx: 1-6S, Ni-xx: Battery Cell 1-15S, Pb: 3S/6S) Select the work mode to be performed.

  • Page 36: System Setting

    System Setting On the main interface, hold the START button for two seconds to enter the System Setting. Menu Option Definition Safety Timer Customize a period for program protection. Max.Capacity Customize the maximum capacity. Trickle Charge Enable/disable trickle charge. Task Enable/disable holding voltage Parameters If the battery voltage is dropped to a specified value,...
  • Page 37 Voltage Set the output voltage. (2.0-27.0V) Current Set the output current. (1.0-10.0A) DC Power Enable DC power output and return to the main Start interface. Back Back to the previous interface. Measure the battery voltage and internal resistance. Battery Meter Press - to return to the system setting.

  • Page 38: Errors And Warnings

    Errors and Warnings In the event of a fault, the charger will display an error message and sound an alarm. Error Message Explanation DC In Too Low DC input voltage is lower than preset or min.input voltage! DC In Too High! DC input voltage is higher than preset! Connection Break! The battery connection is broken!

  • Page 39: Conformity Declaration

    Conformity Declaration SkyRC B6ACneo satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B. Test Title Result Standards Household and similar electrical appliances - Safety - Part 1: EN 60335-1 Conform General requirements EN 60335-2- Household and similar electrical appliances – Safety – Part2-29: Conform Particular requirements for battery chargers.

  • Page 40: Warranty And Service

    This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device.
  • Page 41 AC/DCSmart Charger Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com The manual is subject to change without notice; please refer to our website for the latest version! 2023.09 - 39 -...
