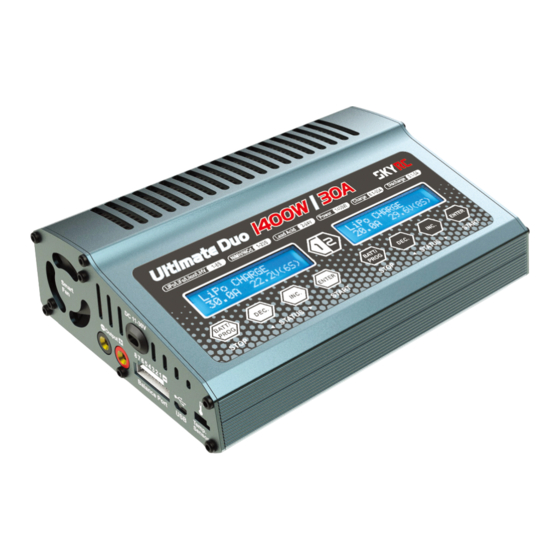

Summary of Contents for Skyrc Ultimate Duo 1400W / 30A

  • Page 1: Instruction Manual

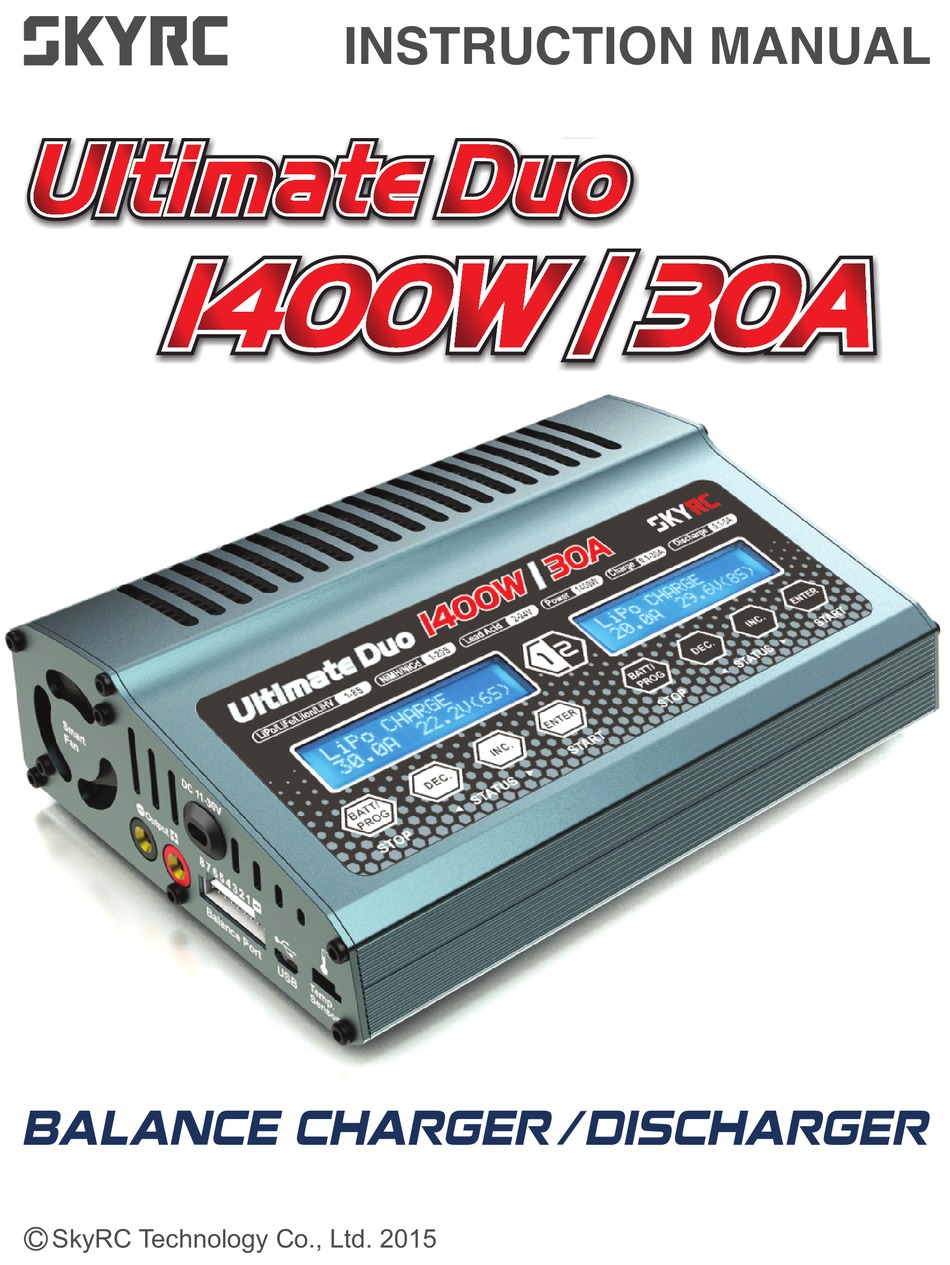

    INSTRUCTION MANUAL BALANCE CHARGER BALANCE CHARGER DISCHARGER DISCHARGER SkyRC Technology Co., Ltd. 2015...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SPECIAL FEATURES WARNING AND SAFETY NOTES PROGRAM FLOW CHART OPERATION OPERATING PROGRAM CHARGING PROGRAM BATTERY MEMORY SET AND CALL OUT SYSTEM SETTING BATTERY METER BATTERY RESISTANCE METER WARNING AND ERROR MESSAGE USING THE CHARGE CONTROL SOFTWARE “CHARGE MASTER” SPECIFICATION CONFORMITY DECLARATION MAXIMUM CIRCUIT POWER CHART...
  • Page 3: Introduction

    Discharger. This unit is simple to use, but the operation of a sophisticated charger such as SKYRC Ultimate Duo 1400W does require some knowledge on the part of the user. These operating instructions are designed to ensure that you quickly become familiar with its functions.
  • Page 4 INTRODUCTION Please read this entire operating manual completely and attentively before using this product, as it covers a wide range of information on operating and safety. Or please do use this product in company with a specialist! Smart Fan Temperature Sensor Port Output 1 DC Input...
  • Page 5: Special Features

    SPECIAL FEATURES Optimized Operating Software Ultimate Duo 1400W features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction.
  • Page 6 SPECIAL FEATURES Fast and Storage Mode of Lithium Battery Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
  • Page 7: Warning And Safety Notes

    WARNING AND SAFETY NOTES These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire. Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.
  • Page 8 WARNING AND SAFETY NOTES Never attempt to charge or discharge the following types of batteries. A battery pack which consists of different types of cells (including different manufacturers) A battery that is already fully charged or just slightly discharged. Non-rechargeable batteries (Explosion hazard). Batteries that require a different charge technique from NiCd, NiMH, LiPo or Gel cell (Pb, Lead acid).
  • Page 9 WARNING AND SAFETY NOTES Attention should be paid to the connection of lithium battery especially. Do not attempt to disassemble the battery pack arbitrarily. Please get highlighted that lithium battery packs can be wired in parallel and in series. In the parallel connection, the battery s capacity is calculated by multiplying single battery capacity by the number of cells with total voltage stay the same.
  • Page 10: Program Flow Chart

    PROGRAM FLOW CHART START LiPo BALANCE LiPo CHARGE LiPo FAST CHG LiPo STORAGE LiPo DISCHARGE LiPo MICRO CHG LiPo MICRO STORE PROGRAM SELECT 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 2.0A 7.4V (2S) 500mA 7.4V (2S) 500mA 7.4V (2S) LiPo BATT ENTER...
  • Page 11: Operation

    OPERATION BATT PROG / STOP Button: It is used to stop the progress or go back to previous step/screen DEC Button: It is used to go through the menus and decrease the parameter value INC Button: It is used to go through the menus and increase the parameter value ENTER / START Button: It is used to enter parameter or store parameter on screen.
  • Page 12: Operating Program

    OPERATING PROGRAM Here is the detailed procedure to make the charger work. All the screens and operations will take Li-Po BALANCE CHARGE program for example, 1. Connection Connecting to power source There are 2 kinds of power source: DC power supply and Lead Acid battery. After you connect the power source to the charger, when you power up the charger for the first time or load the factory default setting, please follow below steps, P o w e r S u p p l y ?
  • Page 13 When using balance charge mode, the battery balance wire must be connected to the charger's balance port. This diagram shows the correct way to connect your battery to the SKYRC Ultimate Duo 1400W while charging in the balance charge program mode. WARNING: Failure to connect as shown in this diagram will damage this charger.
  • Page 14 OPERATING PROGRAM 2. Getting started Locate the flowcharts show the entire programming menu. It is highly recommended to have these flowcharts handy while learning to operate this charger. There are two main ways in which to set the charger. A memory profile is available for setting and storing pertinent information for up to 10 different batteries.
  • Page 15: Various Information During The Process

    OPERATING PROGRAM R shows the number of cells detected by the charger and S is the R : 3 S E R S : 3 S E R number of cells set by you at the previous screen. If both numbers C O N F I R M ( E N T E R ) are identical, press START/ENTER to start charging process.
  • Page 16: Charging Program

    OPERATING PROGRAM 8. Program Stop During the charging process, press STOP to stop the charging process. 9. Program Complete When the charging process finishes, an audible sound will be heard. Charging Program Depends on different battery type, the operation programs are different. Batt Operation Description...
  • Page 17: Battery Memory Set And Call Out

    BATTERY MEMORY SET AND CALL OUT Synchronous Mode Function: When charging two same batteries, both charging channels can be set by channel one. ON/OFF Process: P R O G R A M S E L E C T Press INC\DEC to choose S Y S T E M S E T U P - >...
  • Page 18 BATTERY MEMORY SET AND CALL OUT C H A R G E C U R R E N T Set the charge current(0.1-30.0A). 4 . 9 A DEC INC D S C H C U R R E N T Set the discharge current (0.1A-5.0A).
  • Page 19: System Setting

    SYSTEM SETTING It is essential for users to do system settings before use. After entering system setting program, the screen displays the following information in sequence and the user can change the value of parameter on each screen. When you are willing to alter the parameter value in the program, press START/ENTER to make it blink then change the value with INC or DEC.
  • Page 20 SYSTEM SETTING ITEM SELECTION DESCRIPTION M a x P o w e r S e t Press ENTER to set the max power. 7 0 0 W L o a d F a c t o r y S e t Press ENTER to load factory default setting.
  • Page 21: Battery Meter

    BATTERY METER The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage. Please connect the battery to the charger main battery lead to battery socket and balance wires to balance board. This diagram shows the Battery correct way to connect your battery to check...
  • Page 22: Battery Resistance Meter

    BATTERY RESISTANCE METER The user can check each cell's resistance. Please connect the battery to the charger main battery lead to battery socket and balance wires to balance socket. This diagram shows the Battery correct way to connect your battery to check Pack the resistance.
  • Page 23: Warning And Error Message

    WARNING AND ERROR MESSAGE In case of an error the screen will display the cause of error and emit an audible sound. Incorrect polarity connected. The battery is interrupted. C O N N E C T E R R O R Thebattery connection is wrong.
  • Page 24: Using The Charge Control Software "Charge Master

    USB cable which is not included in this package. The cable must be terminated on one end with “A” plug and the opposite end is terminated with “micro-B” plug which can connect to charger directly. The “Charge Master” can be download from www.skyrc.com. · 22 Ultimate Duo 1400W...
  • Page 25 Cell Count: 2~8S Balance Connector Type: XH Fuse Protect Over Current Indicator SK-600071 THESETCONTAINS 1. SKYRC Ultimate Duo 1400W Charger 2. 2-8S Multiple Balance Board Adapter x 2 3. Insulated Banana to Xt60 Battery Connector x 2 4. Charging Cable with Insulated...
  • Page 26: Specification

    SPECIFICATION SPECIFICATION DC Input Voltage : 11-30V Controls Button Display Type: 2x16 LCD Display Backlight: Blue Case Material: Metal Cooling System: Built-in fan x2pc Case Size: 40 55 Weight: 12 0g PC Communications: USB Port for PC Control & Firmware Upgrade External Port: Balance Socket-XH, Temperature Probe Socket, Battery Socket , DC Input, Micro USB Port for PC Control...
  • Page 27: Conformity Declaration

    CONFORMITY DECLARATION SKYRC Ultimate Duo 1400W satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2014. For EC directives: The product has been tested to meet the following technical standards: EN 55014-1: Electromagnetic Compatibility - EN 55014-1:2006+...
  • Page 28: Maximum Circuit Power Chart

    MAXIMUM CIRCUIT POWER CHART Maximum circuit power chart The actual amount of charge current feeding to the battery is automatically be limited to 1000 Watts, so not to exceed the charger's maximum rated charging power. The maximum discharge power is approximately 80 Watts. The discharge current delivered to the charger is limited by charger's internal thermal sensor for maximum discharge current.
  • Page 29 MAXIMUM CIRCUIT POWER CHART Battery Type 700W NiCd/NiMH 30.0 30.0 30.0 30.0 30.0 10.5 30.0 12.0 30.0 10.8 13.5 30.0 12.0 15.0 30.0 13.2 16.5 30.0 14.4 18.0 30.0 15.6 19.5 30.0 16.8 21.0 30.0 18.0 22.5 30.0 19.2 24.0 29.1 20.4 25.5...
  • Page 30: Commonly Used Terms

    COMMONLY USED TERMS Commonly used terms Final charge voltage: the voltage at which the battery's charge limit (capacity limit) is reached. The charge process switches from a high current to a low maintenance rate (trickle charge) at this point. From this point on further high current charging would cause overheating and eventual terminal damage to the pack.
  • Page 31: Warranty And Service

    Liability exclusion This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated.
  • Page 32 Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com All specifications and figures are subject to change without notice. Printed in China 2015.04 7504-0...
