Clearing jams
2

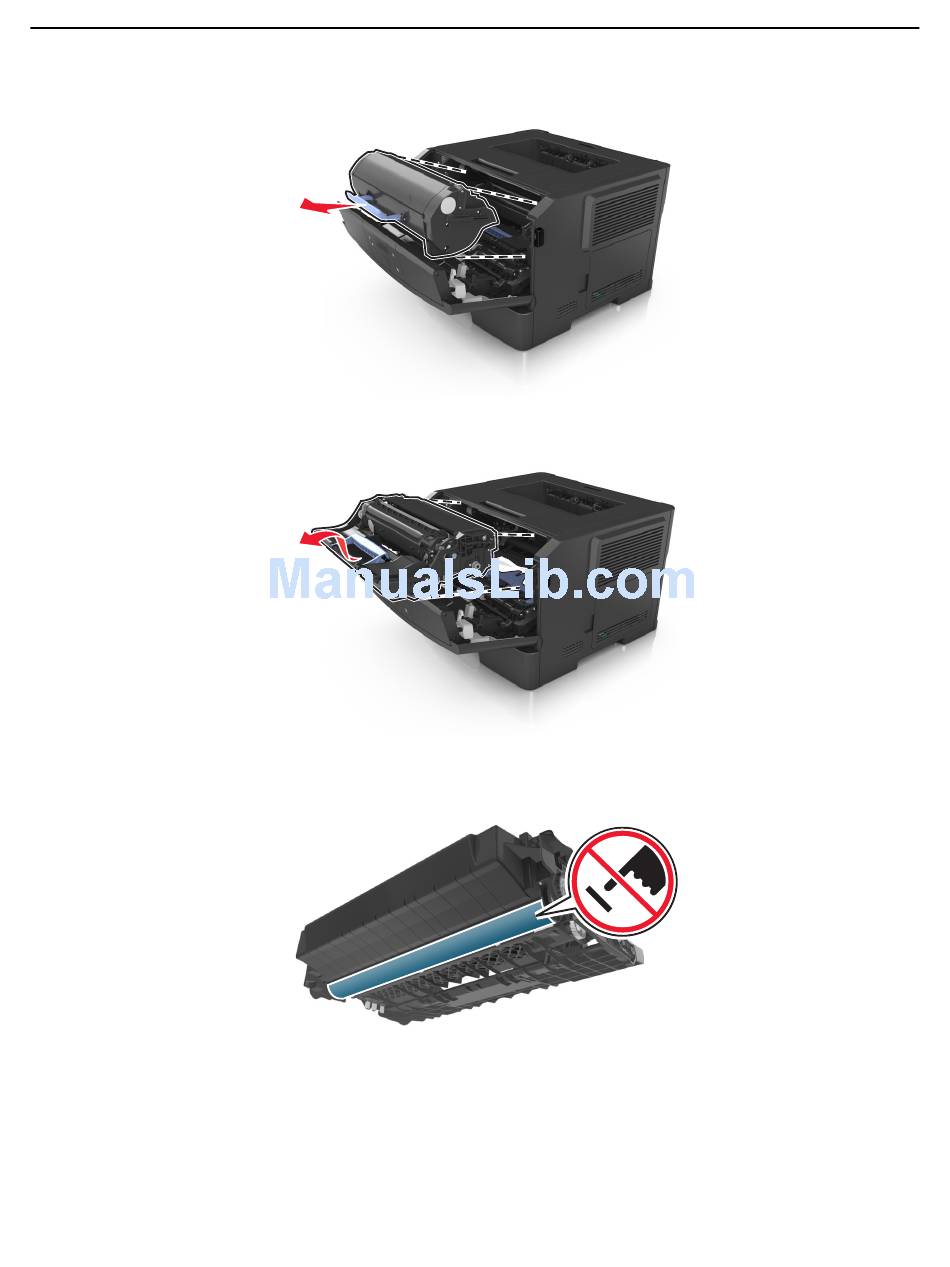

Pull the toner cartridge out using the handle.
3
Lift the blue handle, and then pull out the imaging unit from the printer.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
4
Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light can cause print quality problems.
100
