Chop pivot

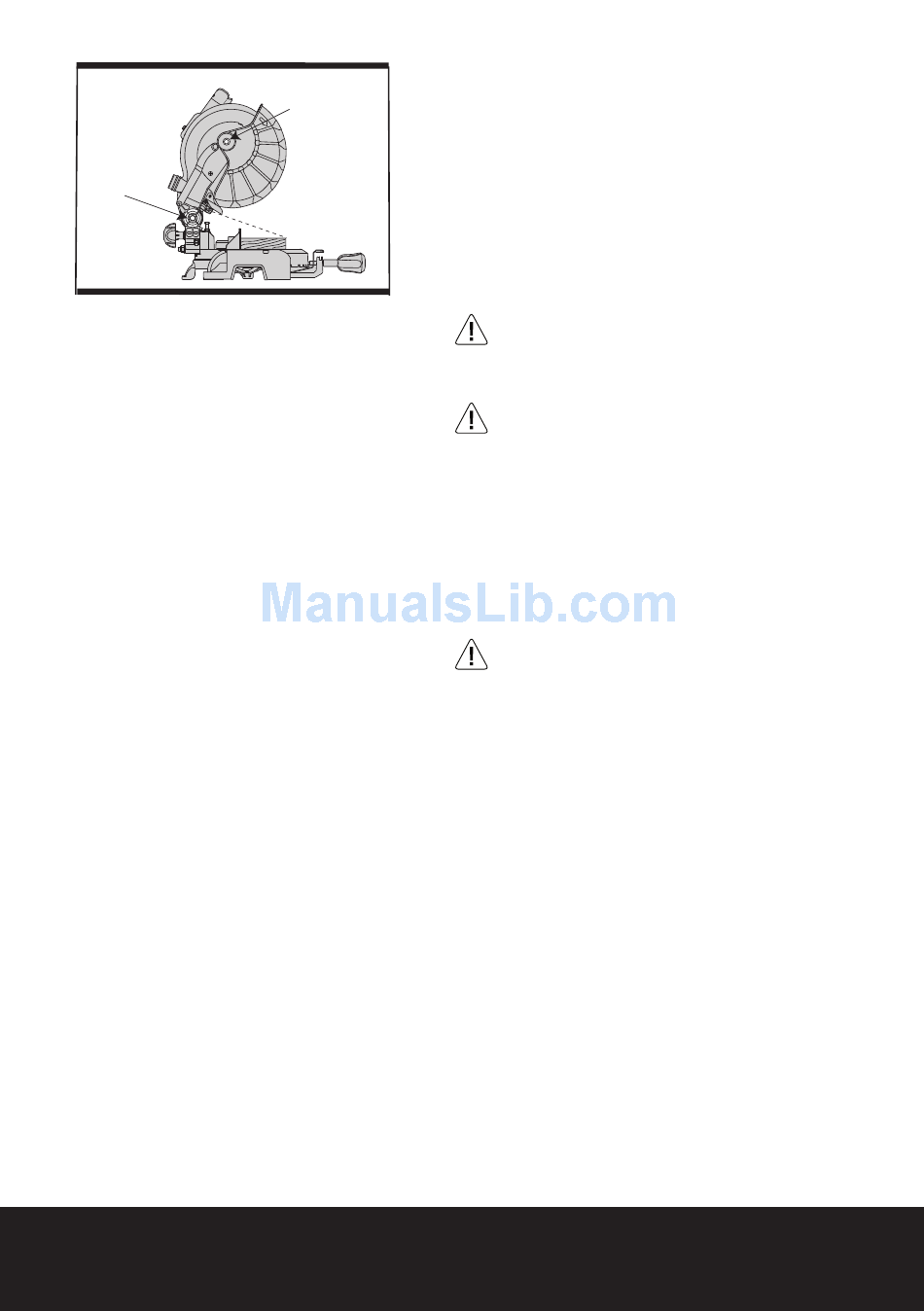

Fig 37
254MM (10") COMPOUND MITRE SAW 254MM (10") COMPOUND MITRE SAW

Lower blade guard

Central pivot of
Do not use the saw without the lower blade
plastic guard
guard. The lower blade guard is attached to
the saw for your protection. Should the lower
guard become damaged, do not use the saw
until the damaged guard has been replaced.
Develop a regular check to make sure the
lower guard is working properly. Clean the
lower guard of any dust or buildup with a damp
cloth.
guard. They could make the plastic "cloudy"
and brittle.
source receptacle to avoid unexpected startup.
Sawdust
Periodically, sawdust will accumulate under
the work table and base. This could cause
difficulty in the movement of the worktable
when setting up a mitre cut. Frequently blow
out or vacuum up the sawdust.
blowing into eyes.
Lubrication
All the motor bearings in this tool are lubricated
with a sufficient amount of high grade lubricant
for the life of the unit under normal operating
conditions; therefore, no further bearing
lubrication is required. (See fig. 37)
Lubricate the following as necessary:
Chop pivot: Apply light machine oil to points
indicated in illustration.
Central pivot of plastic guard: Use light
household oil (sewing machine oil ) on metal-
to-metal or metal-to-plastic guard contact
areas as required for smooth, quiet operation.
Avoid excessive oil, to which sawdust will
cling.
Warning: Do not use solvents on the
Warning: When cleaning the lower
guard, unplug the saw from the power
Warning: If blowing sawdust, wear
proper eye protection to keep debris from
