Note: The mitre saw is equipped with an
automatic blade brake. When the trigger
switch is released, the electric blade brake will
stop the blade within approximately 6 seconds.
Warning: To avoid injury, after
completing a cut and releasing the trigger
switch, allow the blade brake to activate and
stop the blade before raising the cutting head.
Warning: To avoid injury, check and
tighten the arbour bolt periodically.

6. Before leaving the saw

● Never leave tool running unattended. Turn
power OFF. Wait for all moving parts to stop.
● Make workshop child- proof. Lock the shop
Disconnect master switches. Store tool away
from children and other unqualified users.

7. Mitre cut

1) When a mitre cut is required, unlock the
mitre table by turning the mitre handle (1)
counterclockwise.
2) While holding the mitre handle, press down
on the positive stop locking lever (2) to
disengage the positive stop locking lever.
3) Rotate the mitre table to the right or left with
the mitre handle.
4) When the table is in the desired position as
shown on the mitre scale (3), release the
positive stop locking lever handle and tighten
the mitre handle. The table is now locked at
the desired angle. Positive stops are provided
at 0°,15°, 22.5°, 31.6° and 45°. (See fig. 27)
Important: ALWAYS TIGHTEN the mitre
table lock handle before cutting.
25
254MM (10") COMPOUND MITRE SAW 254MM (10") COMPOUND MITRE SAW
3
2

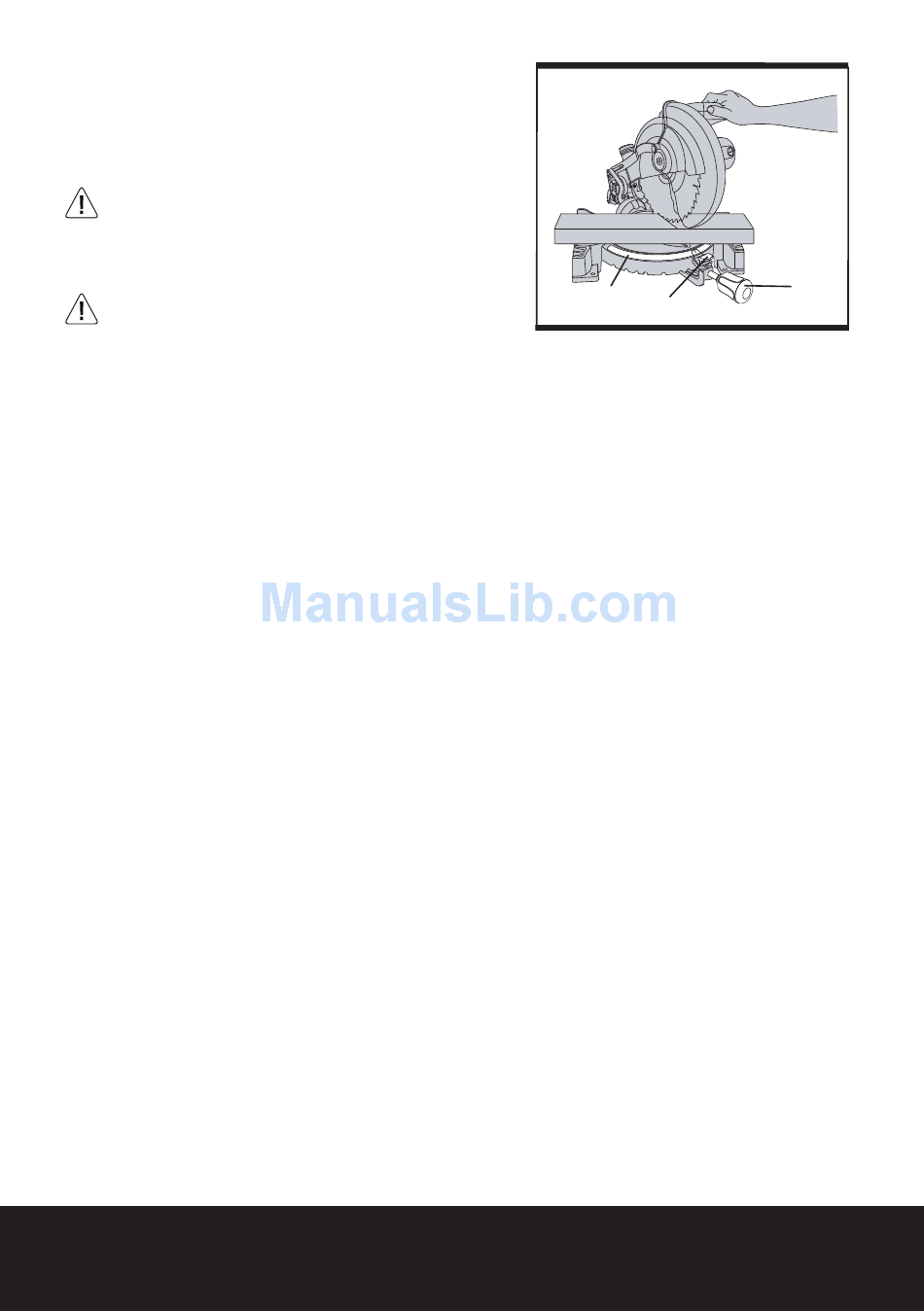

Fig 27
