Bevel Stop Adjustment - Erbauer ERB2502SE User Manual

1
3
1
4

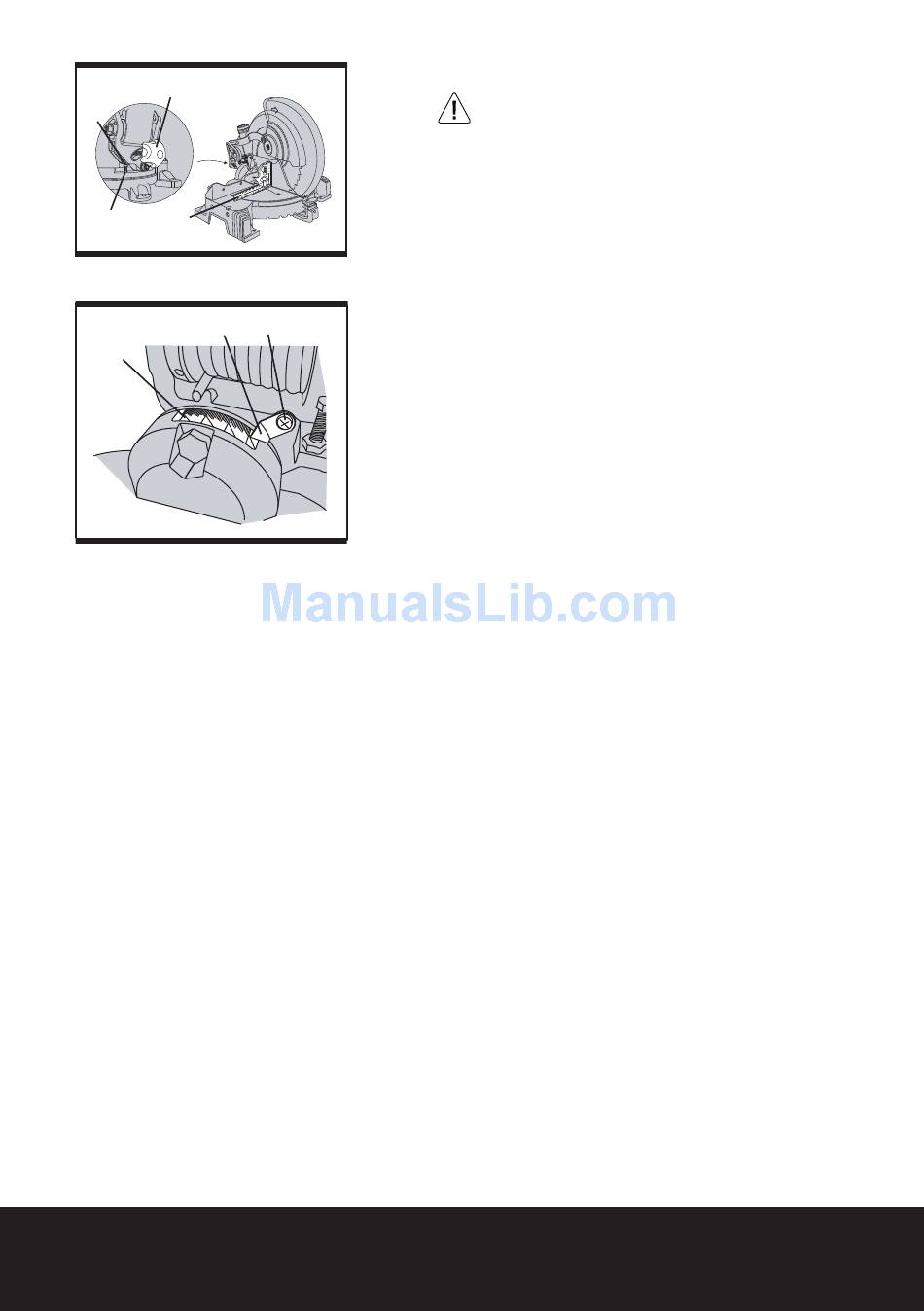

Fig 16
6
7
Fig 17
254MM (10") COMPOUND MITRE SAW 254MM (10") COMPOUND MITRE SAW

5. Bevel stop adjustment

make sure the trigger is released and remove
the power cord from the power source.
90°(0°) Bevel adjustment (Fig. 16)
1) Loosen bevel lock handle (1) and tilt the
cutting arm completely to the right. Tighten the
bevel lock handle. Lower blade.
5
2) Place a combination square (2) on the mitre
table with the rule against the table and the heel
of the square against the saw blade.
3) If the blade is not 90°(0°) square with the
mitre table, loosen the bevel lock handle, tilt the
cutting head completely to the left, loosen the
jamb nut (4) on the bevel angle adjustment bolt
(3) and use a 10 mm spanner to adjust the bolt
(3) in or out to increase or decrease the bevel
angle.
4) Tilt the cutting arm to back to the right at 90°
(0°) bevel and recheck for alignment.
5) Repeat steps 1 through 4 if further adjustment
is needed.
6) Tighten bevel lock handle and jamb nut
(4) when alignment is achieved. (See fig. 16).
90°(0°) Bevel indicator
1) When the blade is exactly 90°(0°) to the table,
loosen the bevel indicator screw (5) using a #2
Phillips screwdriver.
2) Adjust bevel indicator (6) to the "0" mark
(7) on the bevel scale and retighten the screw.
(See fig. 17).
Warning: To avoid injury from
unexpected starting or electrical shock,
