Summary of Contents for Erbauer ERB800RL

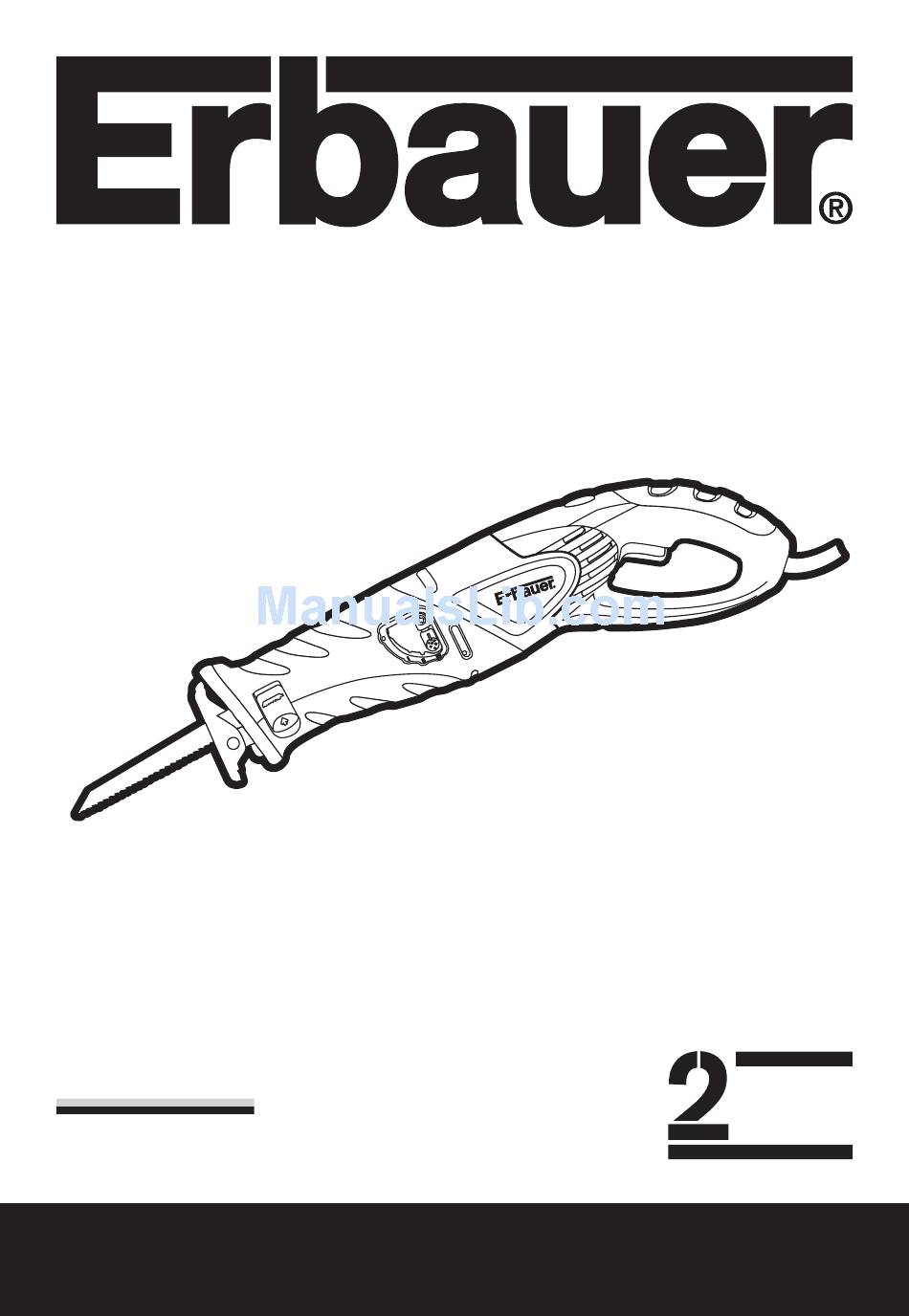

- Page 1 WARRANTY YEARS ERB800RL 800W ALL PURPOSE SAW...
- Page 3 Congratulations on your purchase of a quality power tool from Screwfix Direct Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 24-month manufacturer’s guarantee, the terms of which are detailed below. If this product develops a fault within the guarantee period contact Screwfix Direct Ltd on Freephone 0500 41 41 41.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions, Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS Work area a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b. - Page 5 g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards. 4. Power tool use and care. a. Do not force the power tool. Use the correct power tool for your application.The correct power tool will do the job better and safer at the rate for which it was designed.
-
Page 6: Important Note
ADDITIONAL SAFETY RULES FOR YOUR ALL PURPOSE SAWS 1. If the supply cord is damaged have it replaced by a qualified person. 2. Always check walls, floors and ceilings to avoid hidden power cables and pipes. 3. After long working periods external metal Parts and accessories could be hot. 4. - Page 7 1. ON/OFF TRIGGER SWITCH 2. HAND GRIP 3. TOOL-FREE BLADE CLAMP LEVER 4. PIVOTING BLADE FOOT 5. BLADE 6. SHOE ADJUSTING BUTTON 7. PENDULUM ACTION CONTROL 8. WORK LIGHT ON/OFF SWITCH 800W ALL PURPOSE SAW...
-
Page 8: Technical Data
TECHNICAL DATA Voltage: 230V~50Hz Input power: 800W No load speed: 0-2700min Stroke length: 20mm Max cutting capaity 200mm(wood) 12mm(steel) Double insulation: Weight: 3.5kg NOISE AND VIBRATION DATA Sound pressure level: 88dB (A) Sound power level: 99dB (A) Vibration level: 22.4m/s... -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS Warning! Before using this tool, make sure you read the instructions carefully. Note: Make sure to disconnect the all purpose saw from mains supply before fixing any accessories. Tool-free blade clamp lever 1. ON/OFF TRIGGER SWITCH Depress to start and release to stop your tool. Fig 2 2. - Page 10 slide is now locked but the pivoting blade foot will continue to pivot, as it must follow your work surface. 6. PENDULUM ACTION CONTROL (see fig4) The pendulum action varies the down cutting angle of the blade for increased cutting efficiency. This can also be adjusted during no load running.
-
Page 11: Maintenance
5. When sawing along a marked line use the marking on the splitting guard as a guide. 6. For exact cutting, clamp a timber batten on to the material as an aid. MAINTENANCE WARNING: Ensure the all purpose saw is disconnected from the mains power supply before attempting any maintenance. -
Page 13: Plug Replacement
PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below. -
Page 14: Declaration Of Conformity
Yeovil BA 22 8RT Declare that the product 800W ALL PURPOSE SAW ERB800RL Complies with the essential health and safety requirements of the following directives: 89/336/EEC, 93/68/EEC – EMC Directive. 73/23/EEC, 93/68/EEC – Low Voltage Directive 98/37/EC – Machinery Directive. - Page 15 800W ALL PURPOSE SAW...
