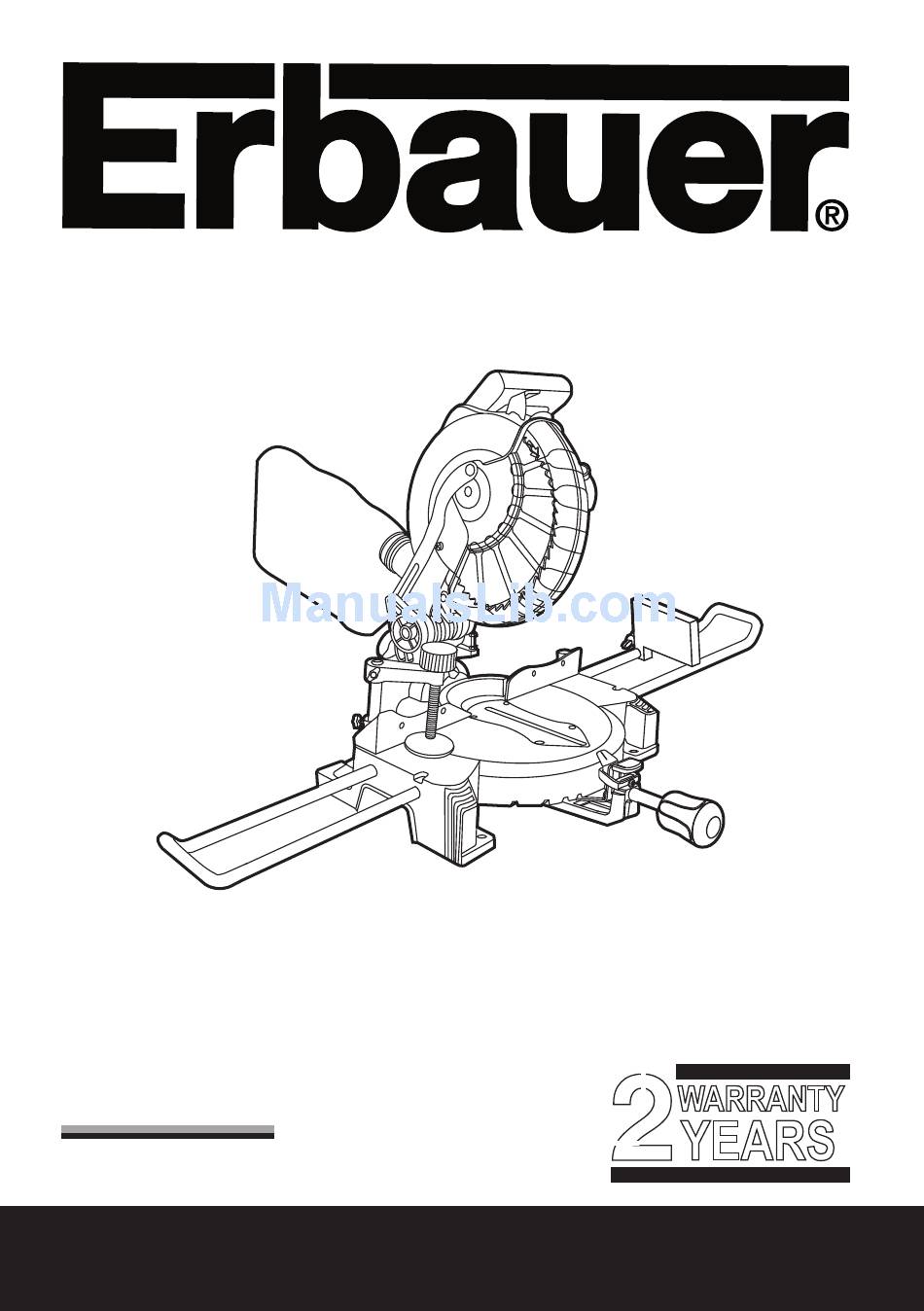

  • Page 1 WARRANTY YEARS ERB2502SE 254MM (10”) COMPOUND MITRE SAW...
  • Page 2 254MM (10”) COMPOUND MITRE SAW 254MM (10”) COMPOUND MITRE SAW...
  • Page 3 This guarantee does not affect your statutory rights. This guarantee is only valid in the UK. For further technical advice and spare parts, Please contact the customer helpline number on 01709 876611 quoting your Erbauer model number. 254MM (10”) COMPOUND MITRE SAW...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS 1. Work area a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.

  • Page 5: Health Advice

    f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 6 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR MITRE SAW Warning: Be sure to read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. Know your power tool. Read operator’s manual carefully. Learn the applications and limitations, as well as the specific potential hazards related to this tool.
  • Page 7 12. When the correct blade to cut the material has been fitted, this saw is recommended for cutting wood, non-ferrous metal and plastic only. 13. Do not use saw blades with High speed steel (HSS) or damaged or deformed. 14. Replace the table insert when worn. 15.

  • Page 8: Double Insulation

    Double insulation: The tool is double insulated. This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed.
  • Page 9 Fig 1 UPPER BLADE GUARD SWITCH HANDLE LOWER BLADE GUARD STOP BLOCK RIGHT EXTENSION WING MITRE SCALE POSITIVE STOP LOCKING LEVER MITRE HANDLE MOUNTING HOLE 10. BASE 11. LEFT EXTENSION WING 12. HOLD-DOWN CLAMP 13. DUST BAG 14. COVER PLATE 254MM (10”) COMPOUND MITRE SAW 254MM (10”) COMPOUND MITRE SAW...
  • Page 10 Fig 2 15. SPANNER STORAGE 16. STOP LATCH 17. PIOVT BOLT LOCK-NUT 18. ON/OFF TRIGGER SWITCH 19. MOTOR 20. BEVEL SCALE 21. POSITIVE MITRE DETENTS 22. TABLE INSERT 23. TABLE 24. FENCE 25. BLADE 26. ARBOUR LOCK 254MM (10”) COMPOUND MITRE SAW 254MM (10”) COMPOUND MITRE SAW...

  • Page 11: Technical Data

    TECHNICAL DATA Volts 230 V-50 Hz Power input 1800W S6, 20%, 10min. No-load speed 4800 min Double insulation Machine weight 10.2 kg Blade Ø255 mm ; Ø30 mm Bore Turntable Ø280 mm Mitre stops 0° ,15°, 22.5°, 31.6°, 45° left & right Mitre angle range 47°...

  • Page 12: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Warning: To avoid injury, do not connect this mitre saw to the power source until it is completely assembled and adjusted and you have read and understood this Operator’s Manual. Fig 3 Estimated Assembly Time: 5 minutes 1. Installing the mitre handle 1) Thread the mitre handle (1) into the hole (2) located at the front of the mitre table.

  • Page 13: Installing The Dust Bag

    4. Installing the dust bag 1) Squeeze the metal collar wings (2) of the dust bag (1). 2) Place the dust bag neck opening around the exhaust port (3), and release the metal collar wings. (See fig. 6). 5. Installing extension wings To avoid injury or possible damage to the tool, Fig 6 support long workpieces by installing the extension...

  • Page 14: Removing Or Installing The Blade

    7. Removing or installing the blade Warning: ● Do not use a blade larger than 255 mm in diameter. ● To avoid injury from an accidental start, make sure the switch is in the OFF position and the plug is not connected to the power source outlet.
  • Page 15 2) Place the outer blade collar (6) against the blade and on the arbour. Thread the arbour bolt (8) into the arbour counterclockwise. (See fig. 11) Important Make sure the flats of the blade collars are engaged with the flats on the arbour shaft. 3) Place the blade spanner on the arbour bolt.

  • Page 16: Adjustment Instructions

    ADJUSTMENT INSTRUCTIONS Warning: To avoid injury from an accidental start, make sure the switch is in the OFF position and the plug is not connected to the power source outlet. 1. Adjusting fence squareness 1) Loosen the two fence locking bolts (1). 2) Lower the cutting arm and lock in position.
  • Page 17 5) If the mitre angle desired is not one of the nine positive stops, simply lock the mitre table into position by turning the mitre handle in the clockwise direction. (See fig. 13). To adjust the indicator: 1) Position the mitre table at zero degrees. 2) Loosen the pointer screw (4) and adjust the indicator (3) to the 0°...

  • Page 18: Bevel Stop Adjustment

    5. Bevel stop adjustment Warning: To avoid injury from unexpected starting or electrical shock, make sure the trigger is released and remove the power cord from the power source. 90°(0°) Bevel adjustment (Fig. 16) 1) Loosen bevel lock handle (1) and tilt the Fig 16 cutting arm completely to the right.

  • Page 19: Bevel Adjustment

    45° Bevel adjustment 1) Unlock the bevel lock handle (1) and tilt the cutting arm as far to the left as possible. 2) Using a combination square, check to see if the blade angle is 45° to the table. 3) If the blade is not at 45° to the mitre table, tilt the cutting arm to the right, loosen the jamb nut (5) on the bevel angle adjustment bolt (4) and use a 10 mm...
  • Page 20 Mounting instructions (if stand is not used) 1) For stationary use, place the saw in the desired location, directly on a workbench where there is room for handling and proper support of the workpiece. The base of the saw has three mounting holes. Bolt the base of the mitre saw (1) to the work surface (5), using the fastening method as shown in Fig 20.
  • Page 21 8. Aligning the laser beam Warning: For your own safety, never connect the plug to power source outlet until all the adjustment steps are complete and you have read and understood the safety and operational instructions. The laser beam must always be correctly aligned with the blade to ensure straight, even cutting.
  • Page 22 Note: All the adjustments for the operation of this machine have been completed at the factory. Due to normal wear and use, Laser Switch some occasional readjustments may be necessary. A. Check Laser Beam Alignment. 1) Mark a 90° straight line across a board to serve as a “pattern line”...

  • Page 23: Electrical Connection

    OPERATION INSTRUCTIONS Warning: Before using your mitre saw be sure to read the instruction manual carefully. Operating instructions 1. Know your mitre saw. Read and understand the Operator’s Manual and labels affixed to the tool. Learn its application and limitations as well as the potential hazards specific to this tool.

  • Page 24: Basic Saw Operations

    Starting a cut: ● Place hands at least 171 mm away from the path of the blade – out of the “no-hands zone” (1). (See fig. 25) ● Clamp workpiece firmly against the fence to prevent movement toward the blade. ●...

  • Page 25: Before Leaving The Saw

    Note: The mitre saw is equipped with an automatic blade brake. When the trigger switch is released, the electric blade brake will stop the blade within approximately 6 seconds. Warning: To avoid injury, after completing a cut and releasing the trigger switch, allow the blade brake to activate and stop the blade before raising the cutting head.

  • Page 26: Compound Cut

    8. Bevel cut (FIG. 28) 1) When a bevel cut is required, loosen the bevel lock handle (1). 2) Tilt the cutting head to the desired angle as shown on the bevel scale (2). The blade can be positioned at any angle, from a 90° straight cut (0°...
  • Page 27 11. Workpiece support and repetitive cutting using the stop plate Long pieces need extra support. The support should be placed under the workpiece. Keep your hand holding the workpiece positioned 171 mm or more away from the blade. The support must let the workpiece lay flat on the work table during the cutting operation.
  • Page 28 13. Cutting base moulding Base mouldings and many other mouldings can be cut on a compound mitre saw. The setup of the saw depends on moulding characteristics and application, as shown. Mitre Saw Table Mitre Saw Table Perform practice cuts on scrap material to mitre at 0 , bevel at 45 mitre at 45...
  • Page 29 14. Cutting crown moulding (Fig. 34, Your compound mitre saw is suited for the difficult task of cutting crown moulding. To fit properly, crown moulding must be compound- mitre ed with extreme accuracy. The two surfaces on a piece of crown moulding that fit flat against the ceiling and wall are at angles that, when added together equal exactly 90°.
  • Page 30 Note: The chart below references a compound cut for crown moulding ONLY WHEN THE ANGLE BETWEEN THE WALLS EQUALS EXACTLY 90°. BEVEL MITRE TYPE OF CUT SETTING SETTING Inside corner-Left side 33.9° 31.6° 1. Position top of moulding against fence. 2.

  • Page 31: Maintenance

    MAINTENANCE Note: This maintenance section is the best section for all the saws and should be used as a master for all the mitre saws when the following changes have been completed. Danger: To avoid injury, never put lubricants on the blade while it is Fig 36 spinning.

  • Page 32: Lower Blade Guard

    Lower blade guard Central pivot of Do not use the saw without the lower blade plastic guard guard. The lower blade guard is attached to the saw for your protection. Should the lower guard become damaged, do not use the saw Chop pivot until the damaged guard has been replaced.

  • Page 33: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating.
  • Page 34 Declaration of Conformity We, Importer Erbauer (UK) Ltd. BA22 8RT Declare that the product ERB2502SE 254MM (10”) COMPOUND MITRE SAW Complies with the essential health and safety requirements of the following directives: 89/336 EEC – EMC Directive. 73/23/EEC, 93/68/EEC – Low Voltage Directive 98/37/EC –...
