45° Bevel adjustment
1) Unlock the bevel lock handle (1) and tilt the
cutting arm as far to the left as possible.
2) Using a combination square, check to see if
the blade angle is 45° to the table.
3) If the blade is not at 45° to the mitre
table, tilt the cutting arm to the right,
loosen the jamb nut (5) on the bevel angle
adjustment bolt (4) and use a 10 mm
spanner to adjust the bolt (4) in or out to
increase or decrease the bevel angle.
4) Tilt the cutting arm to the left to 45°
bevel and recheck for alignment.
5) Repeat steps 1 through 4 until the blade
is at 45° to the mitre table.
6) Tighten bevel lock handle and jamb nut

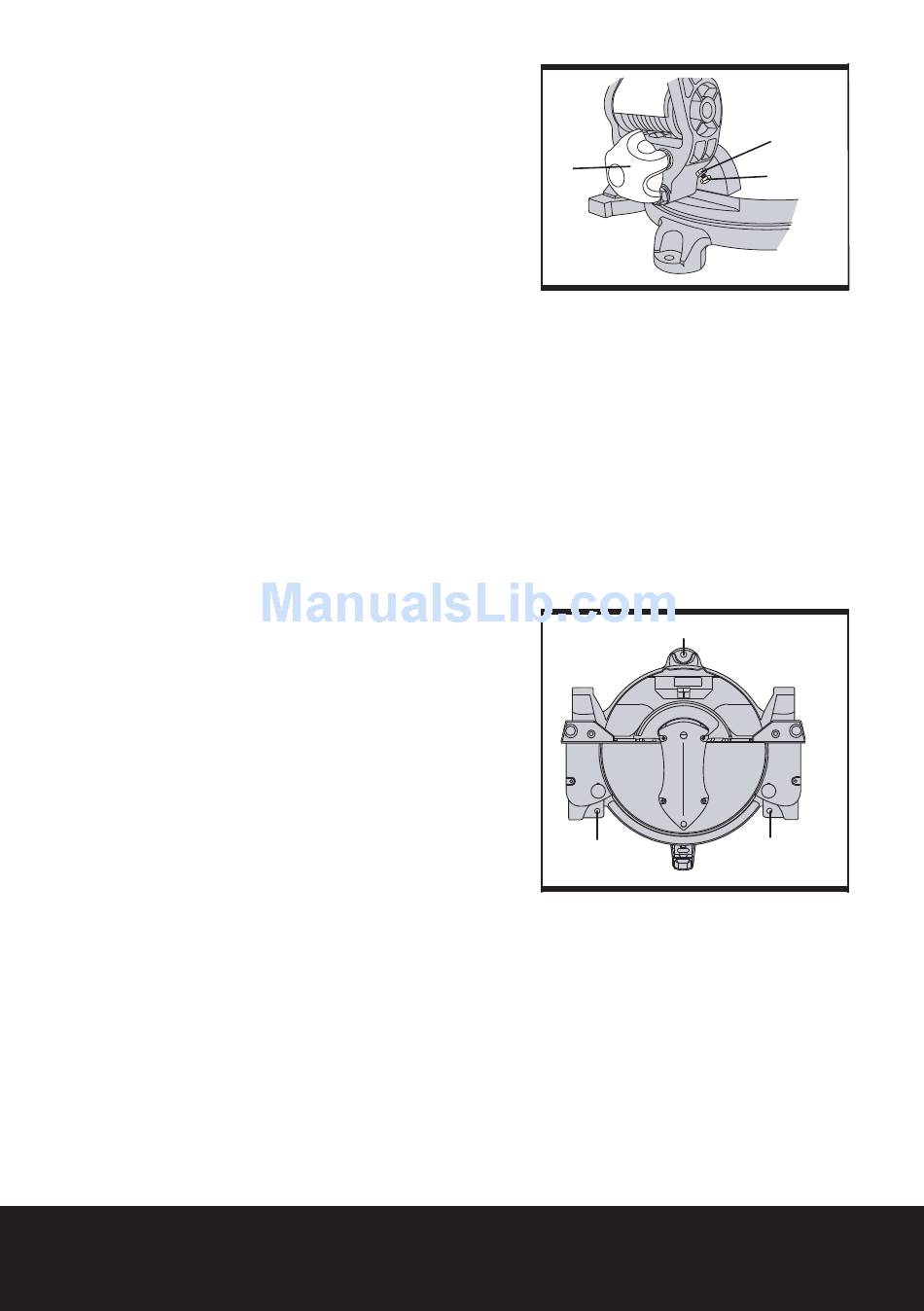

(5) when alignment is achieved. (See fig. 18).
6. Mounting the mitre saw
To avoid injury from unexpected saw
movement:
● Before moving the saw, disconnect the power
cord from the outlet, and lock the cutting arm in
the lower position using the stop latch.
Note: The stop latch is for carrying or storing
the tool. It is not to be used for holding the saw
while cutting. Lower blade and press in stop
latch to secure saw for transport or storage.
● Never carry the mitre saw by the power cord
or by the switch handle. Carrying the tool by
the power cord could cause damage to the
insulation or wire connections resulting in
electric shock or fire.
● To avoid injury from flying debris, do not
allow visitors to stand behind the saw.
● Place the saw on a firm, level work-surface
where there is room for handling and properly
supporting the workpiece.
● Support the saw on a level work surface.
● Bolt or clamp the saw to its support.
Place the saw in the desired location, either on a
work bench or recommended leg set. The base
of the saw has three mounting holes (1-Fig. 19).
