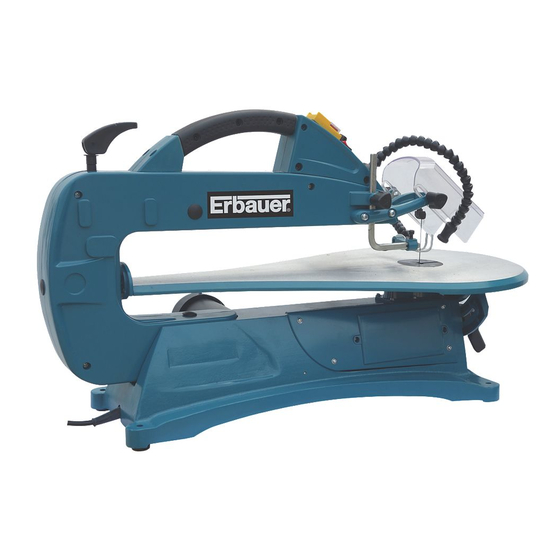

457mm scroll saw

Advertisement

WARRANTY
YEARS
ERB704SSW
Original Instructions
SAFETY AND OPERATING MANUAL
ERBAUER 457MM SCROLL SAW
ERB704SSW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB704SSW and is the answer not in the manual?

Questions and answers

Summary of Contents for Erbauer ERB704SSW

  • Page 1 WARRANTY YEARS ERB704SSW Original Instructions SAFETY AND OPERATING MANUAL ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 2 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carries a 24-month guarantee, the terms of which are detailed below.
  • Page 4: General Safety Instructions

    If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used. 11. Do not abuse the cord. Never yank the tool to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 5 22. Have your tools repaired by qualified person. This electrical tool complies with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 6: Health Advice

    Bend your knees when lifting the scroll saw. - Carry the scroll saw by its base. Do not move the scroll saw by pulling on the power cord. Pulling on the power cord could cause damage to the insulation or the wire ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 7 Wedge open the workpiece and back out the blade. - Do not use if blade guard is damaged or missing. - Do not clear away cut-off pieces until blade has stopped and the saw is turned off. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 8 WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 9 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 10 21. Mounting hole 9. Blade tension knob 22. Base 10. Rubber bearing cover 23. Working table 11. Motor 24. LED light 12. Rubber foot 25. Drop foot lock knob 13. Storage compartment 26. ON/OFF switch ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 11: Caracteristiques Techniques

    60%, which means that the product may be operated for a 6 minute cycle at 240 W and then be left to run in idle for 4 minutes to cool down. The appliance may therefore be operated continuously for 60% of the 10 minute operating cycle at 240 W. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 12: Assembly Instruction

    [28] x 01 [27] x 01 YOU WILL NEED (items not supplied) (items supplied) 12mm Open-end wrench 5mm Hex key (1pc) or adjustment wrench Phillips screwdriver Star-head screwdriver Combination square Small C-clamps (2pcs) Ruler or measuring tape ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 13 Supporting surface where scroll saw is mounted should be examined carefully after mounting to insure that no movement during use can result. If any tipping or walking is noted, secure workbench or supporting surface before beginning cutting operations. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 14 LED LIGHT ADJUSTEMT (Fig. 4) With an easy ON/OFF switch, the attached LED light (24) keeps the cutting line on the workpiece lighted for more accurate scroll cut. Adjust the LED light to the desired position. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 15 - Close the blade guard (18). NOTE: When cutting at angles, the drop foot should be tilted so it is parallel to the working table and rests flat against the workpiece. Fig. 6 Fig. 7 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 16 - Use the right blades (See instructions on replacement blade packaging for proper use.) - Feed the workpiece correctly into the blade. - Use thin blades for intricate cutting. CAUTION! Any and all servicing should be performed by a qualified service centre. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 17: Blade Removal And Installation

    (3). - Push down the blade tension lock knob (9). Make sure the blade is properly located in the blade holders. - Close the blade guard downward. Fig. 12 Fig. 11 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 18 (not provided) to be connected to the dust-extraction port (6) at the front of the saw. If excessive sawdust buildup occurs inside the base, use a wet/dry vacuum cleaner or manually remove sawdust. This will keep your saw cutting efficiently. Fig. 12 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 19 NOTE: The saw is primarily intended for woodworking. If it is being used for woodworking, choose a suitable device that prevents you from inhaling the dust. Insert the nozzle to a standard vacuum hose. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 20: Cutting Procedures

    - When cutting irregularly shaped workpieces, plan your work so it will not pinch the blade. Workpieces must not twist, rock or slip while being cut. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 21: Removing Jammed Material

    “bite.” To avoid this, always use a “V” block or clamp workpiece to a miter gauge. - Before removing loose pieces from the saw table, turn saw off and wait for all moving parts to stop. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 22 - Secure the drop foot (16) by tightening the drop foot knob knob (25). - Remove the workpiece from the blade prior to turning the scroll saw ON. CAUTION: In order to avoid uncontrollable lifting of the workpiece and to reduce blade ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 23 The blade will deflect, reducing accuracy of cut, and it may break. - When the cut is complete, move the trailing edge of the workpiece beyond the drop foot. Turn the switch OFF. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 24 - Position the workpiece on the right side of the blade. Lower the drop foot against the surface by loosening the drop foot lock knob. Retighten the drop foot lock knob. - Follow steps 5-7 under “Freehand cutting”. Fig. 18 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 25: Maintenance

    1/16" (2 mm) in length, replace both brushes. - Unplug the saw from the power source. - Loosen and remove the two brush caps (41) using a screwdriver. - Pull out each brush (42). Inspect the brush and ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 26 NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 27: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recyclemore.co.uk. Fig. 22 ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 28: Troubleshooting

    4. Motor mount is loose 4. Tighten motor mount screws Blade runout 1. Insufficient blade tension 1. Increase blade tension 2. Dull blade causing excessive 2. Renew blade and correctly force to be used at workpiece tension ERBAUER 457MM SCROLL SAW ERB704SSW...
  • Page 29: Declaration Of Conformity

    Declaration of Conformity We, Importer Erbauer (UK) LTD BA22 8RT Declare that the product ERBAUER 457MM SCROLL SAW ERB704SSW Complies with the following Directives: Machine Directive 2006/42/EC EMC directive 2014/30/EU 2011/65/EU Restrictions of the use of certain hazardous substances in electrical and electronic equipment...
