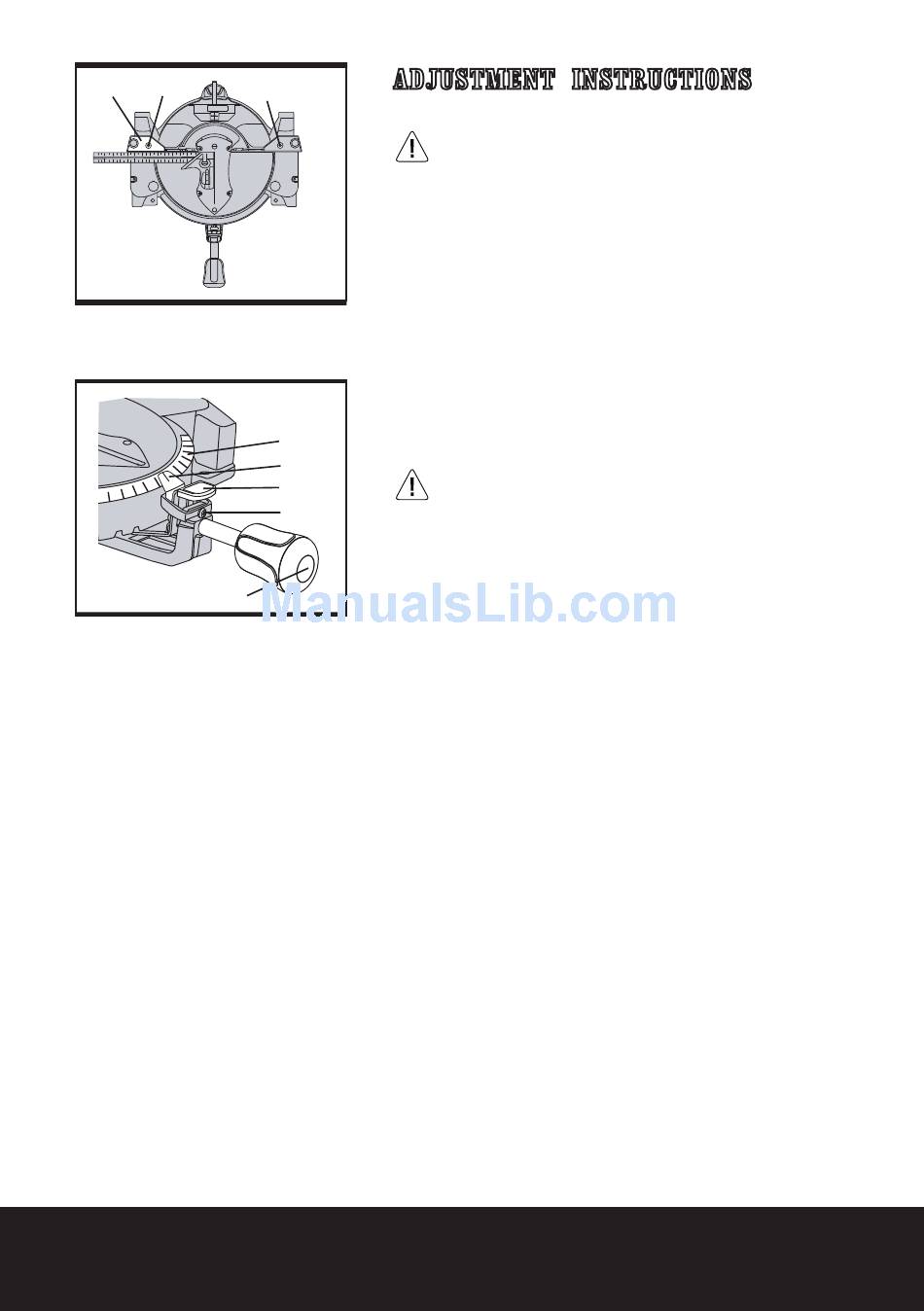

Adjustment Instructions; Adjusting Fence Squareness - Erbauer ERB2502SE User Manual

1
2
Fig 12
1
Fig 13
254MM (10") COMPOUND MITRE SAW 254MM (10") COMPOUND MITRE SAW

ADJUSTMENT INSTRUCTIONS

1
position and the plug is not connected to the power
source outlet.

1. Adjusting fence squareness

1) Loosen the two fence locking bolts (1).
2) Lower the cutting arm and lock in position.
3) Using a square, lay the heel of the square against
the blade, and the rule against the fence (2) as
shown. Check to see if the fence is 90° to the blade.
4) If not, adjust fence 90° to the blade and tighten the
5
fence locking bolts.
3
2
4
and readjust if needed.
5) After fence has been aligned, using a scrap piece
of wood, make a cut at 90
on the piece. Readjust if necessary. (See fig. 12)
2. Mitre scale
The mitre scale assists the user in setting the desired
mitre angles from 47° left to 47° right. The mitre saw
table has nine of the most common angle setttings
with positive stops at 0°, 15°, 22.5°, 31.6°, and 45°.
These positive stops position the blade at the desired
angle quickly and accurately. (See fig. 13)
To adjust the angle:
1) Unlock the mitre table by turning the mitre handle
(1) counterclockwise.
2) Press down the positive stop locking lever (2)
while holding the mitre handle, and rotate the table
left or right to the desired angle.
3) Release positive stop locking lever. Tighten mitre
handle.
4) If the desired angle is one of the nine
positive stops, release the positive stop
locking lever, making sure the lever snaps into
position, and then secure by tightening the
mitre handle.
Warning: To avoid injury from an accidental
start, make sure the switch is in the OFF
Caution: If the saw has not been used
recently, recheck blade squareness to the fence
then check squareness
o
