Erbauer ERB237MSW Original Instructions Manual

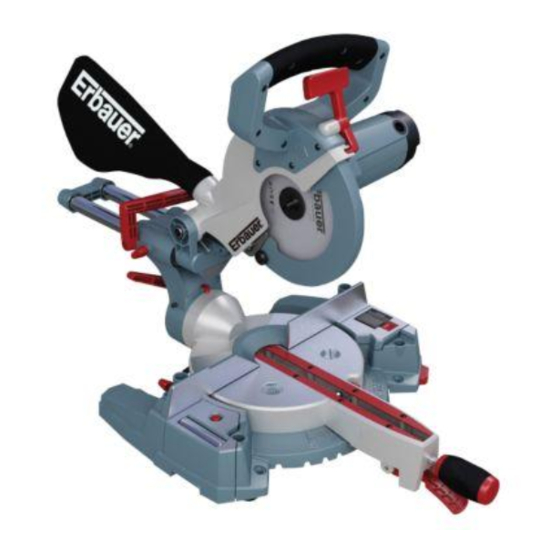

Erbauer 210mm (8-1/4") sliding compound mitre saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Original Instructions
Patent Pending 1008829.2
Read instructions fully before operating this tool
ERB237MSW
ERBAUER 210MM (8-1/4") SLIDING COMPOUND MITRE SAW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB237MSW and is the answer not in the manual?

Questions and answers

Related Manuals for Erbauer ERB237MSW

Summary of Contents for Erbauer ERB237MSW

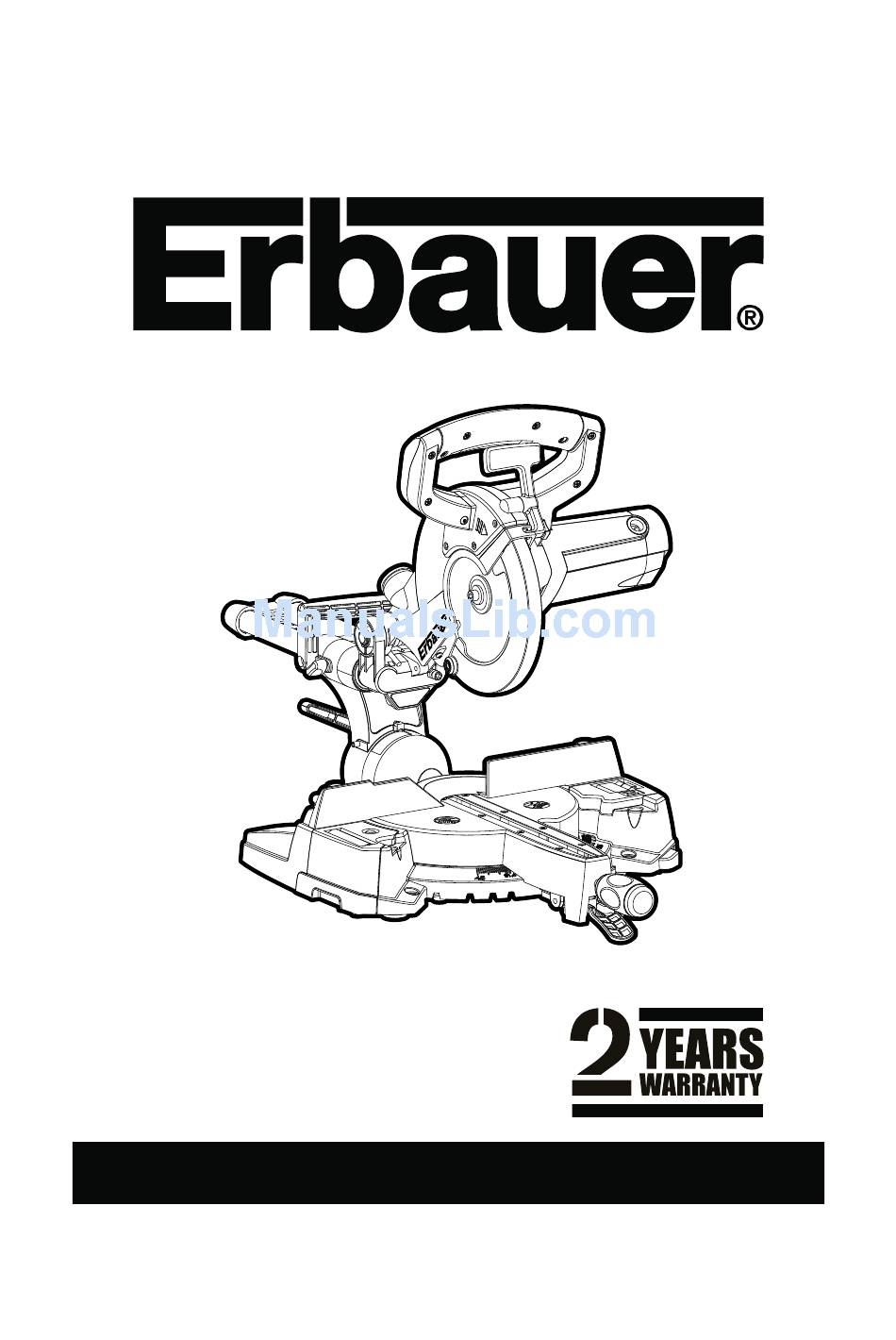

  • Page 1 Original Instructions Patent Pending 1008829.2 Read instructions fully before operating this tool ERB237MSW ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 2 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer Ltd. This product should give you reliable service for your peace of mind this power tool does carry a 24-month guarantee, the terms of which are detailed below. If this product develops a fault within the guarantee period contact your retailer.
  • Page 4 Remove any adjusting key or spanner before turning the power tool on. A spanner or a key left attached to a rotating part of the power tool may result in personal injury. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 5 You should: -Work in a well-ventilated area. -Work with approved safety equipment, such as dust masks that are specially designed to filter microscopic particles. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 6 When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 7 floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 8 11. Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If someone borrows this tool, make sure they have these instructions also. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 9 Failure to follow this rule could result in serious personal injury. Caution: Do not let familiarity with your mitre saw make you careless. Remember that a careless fraction of a second is sufficient to cause severe injury. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 10 Hertz Min -1 Speed Alternating Current No Load Speed Double Insulated Wear Safety Goggles Wear Ear Protection Wear Dust Mask Read Instruction Manual Laser Warning Symbol Conforms to relevant safety standards General Warning ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 11 4. LOWER BLADE GUARD 5. BLADE 6. TABLE INSERT 7. MITRE HANDLE 8. BEVEL LOCK HANDLE 9. BASE 10. TURNTABLE 11. LEFT EXTENSION TABLE 12. FENCE 13. HOLD-DOWN CLAMP 14. SLIDE CARRIAGE LOCK KNOB ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 12 15. CARRYING HANDLE 16. SLIDE CARRIAGE 17. LASER GUIDE 18. RIGHT EXTENSION TABLE 19. MOTOR 20. POSITIVE STOP LOCKING LEVER 21. LOWER BLADE GUARD LOCK LEVER 22. LASER ON/OFF SWITCH 23. ADJUSTABLE CUTTING STOP ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 13 ACCESSORIES Allen Key 1 pc, Dust Bag 1 pc, Hold-Down Clamp 1 pc & Mitre Handle 1 pc ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 14 Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 15 2) Push the stop latch knob (3) into the locking hole. IMPORTANT To avoid damage, never carry the mitre saw by the cutting arm or the mitre handle. ALWAYS use both designated carrying handles together. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 16 Using hold-down clamp on the left side during this operation can cause kickback and serious injury to the operator. Fig 7 Fig 8 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 17 G-clamps to clamp this mounting board to a stable work surface at the worksite. (See fig. 10) Note: Mounting hardware is not included with this tool. Bolts, nuts, washers and screws must be purchased separately. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 18 Note: Pay attention to the pieces removed, noting their position and direction they face. Wipe the blade collars clean of any sawdust before installing a new blade. Fig 14 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 19 Make sure the collars are clean and properly arranged. Check that the lower blade guard is functioning correctly and does not bind or stick. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 20 Lay the board on the mitre table. 2) Plug saw into outlet and turn on the laser beam and line it up with the pattern line. 3) Lower saw blade to pattern line and if blade may be necessary. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 21 Turn one screw at a time and only ¼ turn in either direction before checking laser alignment. Fig 19 Maintain as far as possible the original factory pressure setting that these screws exert on the laser module. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 22 (0°) bevel and recheck for alignment. 5) Repeat steps 1 through 4 if further adjustment is needed. 6) Tighten bevel lock handle (1) and locknut (4) when alignment is achieved. (See fig. 20) Fig 20 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 23 (2). 2) Loosen the bevel lock handle and rotate the cutting head in the required direction until it indexes with the moulding pin (2). Tighten the Fig 23 bevel lock. (See fig. 23) ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 24 1) Move the table to the 0° positive stop. 2) Loosen the screw (4) that holds the indicator with a Phillips screwdriver. 3) Adjust the indicator (3) to the 0° mark and retighten screw. (See fig. 25) ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 25 If the blade touches the inside of the control arm, readjust the setting. Tighten the locknut when the correct setting is achieved.(See fig. 27) ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 26 Don’t force the saw. It will do the job better and safer at its designed rate. Starting a cut: blade – out of the “no-hands zone” (1). (See Fig 28) prevent movement toward the blade. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 27 (See fig. 30) Before leaving the saw Fig 30 power OFF. Wait for all moving parts to stop. Disconnect master switches. Store tool away from children and other unqualified users. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 28 Positive stops are provided at 0°, 33.9° and 45°. (See fig. 32) Fig 32 Note: When cutting at 45 degrees, ensure guard does not catch on work or machine base plate. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 29 7) Slowly move the switch handle toward the fence, completing the cut. 8) Release the trigger and allow the blade to stop spinning before allowing the cutting head to raise to its upper position. (See fig. 34) ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 30 Position where convenient to adequately support long workpieces. To replace, simply slide the satellite stand back into the machine base until the release button provides positive location. (See fig. 36) Fig 36 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 31 final exact positioning of the stop plate. (See fig. 39) 13. Extension Arm With the stop plate in its stored position the extension arm can be used to support long workpieces. (See fig. 39) ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 32 Fig 42 When setting the bevel and mitre angles for compound mitres, remember that the settings are interdependent – changing one changes the other, as well. (See fig. 42&43) ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 33 2)Mitre table set at Left 31.6 3)RIGHT side is finished piece. Outside Corner-Right side 1)Position top of moulding against fence. 33.9 31.6 Right 2)Mitre table set at RIGHT 31.6 3)RIGHT side is finished piece. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 34 Develop a regular check to make sure the lower guard is working properly. Clean the lower guard of any dust or buildup with a damp cloth. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 35 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 36 L. A 13AMP (BS1363 or BS1363/A) plug must be used and a 5 AMP fuse must be fitted. A 13AMP (BS1363 or BS1363/A) plug must be used and a 5 AMP fuse must be fitted. ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 37 2002/96/EC and 2003/108/EC Waste Electrical and Electronic Equipment (WEEE) Standards and technical specifications referred to: EN55014-1:2000 EN55014-2:1997+A1 EN61000-3-2:2000 EN61000-3-3:1995+A1+A2 EN61029:2009 EN61029-2-9:2009 EN60825-1:1994+A11+A2 Authorised Signatory Date: 25/06/2010 Signature: Name: Peter Harries Erbauer (UK) Ltd Quality Manager 2010 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
  • Page 38 ERBAUER 210MM (8-1/4”) SLIDING COMPOUND MITRE SAW...
