5) If the mitre angle desired is not one of the
nine positive stops, simply lock the mitre table
into position by turning the mitre handle in the
clockwise direction. (See fig. 13).
To adjust the indicator:
1) Position the mitre table at zero degrees.
2) Loosen the pointer screw (4) and adjust the
indicator (3) to the 0° mark on the mitre scale
(5) and retighten the screw. (See fig. 13).
3. Cutting arm travel
Cutting arm pivot adjustment
The up and down pivot movement of the
cutting arm (1) should not be too tight,
restricting movement, nor too loose, affecting
the accuracy of the saw cut. The correct
locking nut (2) adjustment is snug, allowing no
side-to-side arm movement. To adjust, tighten
or loosen the adjusting nut (2). (See fig. 14).
4. Cutting head downward travel
adjustment
Warning: To avoid injury from
unexpected starting or electrical shock,
turn the switch OFF and remove the power
cord from the power source.
Note: Before each cutting operation, check
the position of the blade to make sure it does
not contact any metal surface. If the blade
contacts any metal surface, the depth of travel
must be adjusted.
1) Lower the blade as far as possible.
2) Loosen the locknut (3).
3) Turn the adjustment bolt (4) out
(counterclockwise) to decrease the cutting
depth or in (clockwise) to increase the cutting
depth.
4) Rotate the blade manually to check for
contact.
5) Repeat until adjusted properly, and tighten
the locknut to secure the adjustment bolt into
position. (See fig. 15).
17
254MM (10") COMPOUND MITRE SAW 254MM (10") COMPOUND MITRE SAW

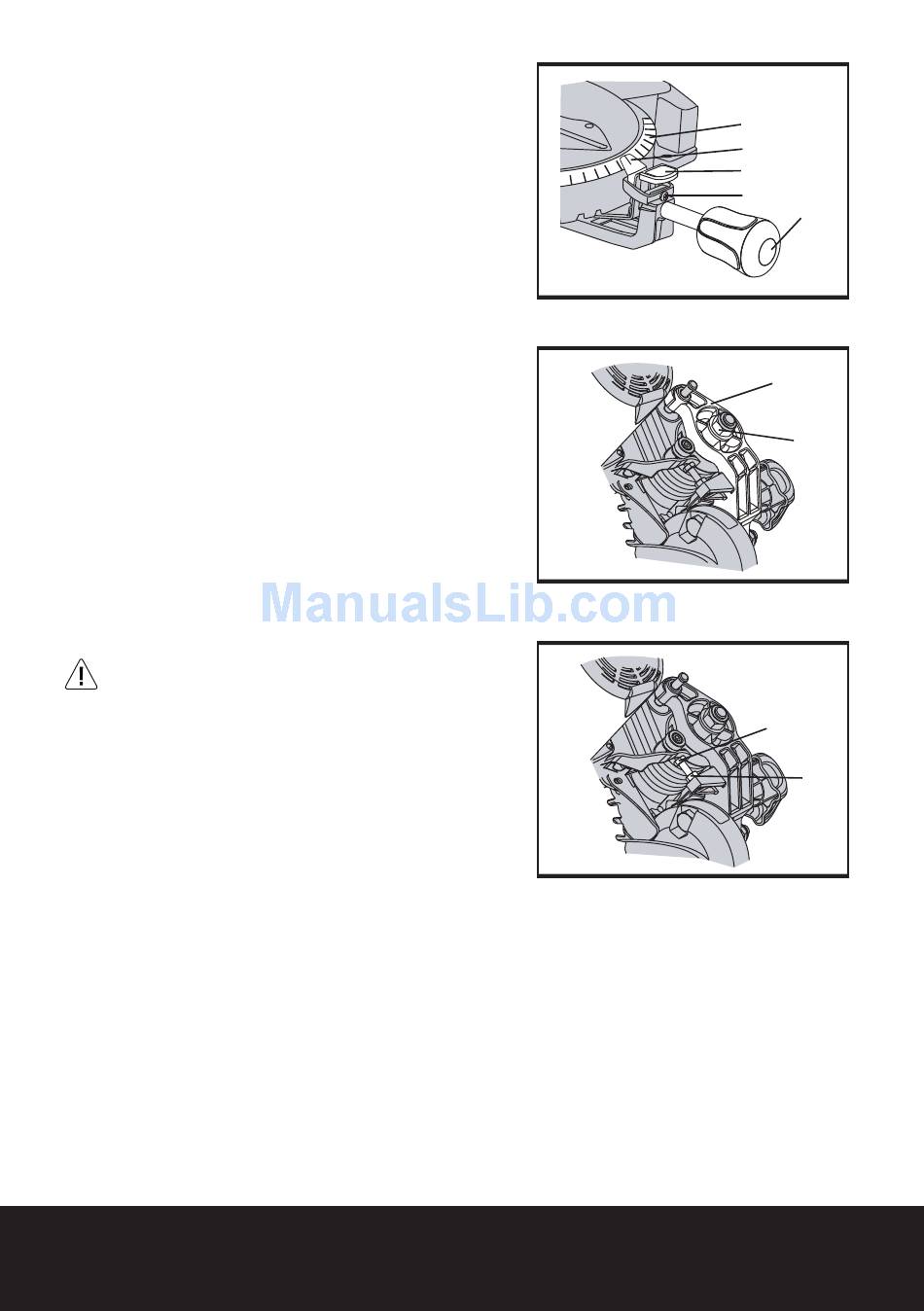

Fig 13
