7. Removing or installing the blade

2
● Do not use a blade larger than 255 mm in diameter.
● To avoid injury from an accidental start, make sure
3
the switch is in the OFF position and the plug is not
connected to the power source outlet.
4
● Keep wearing the gloves during removing and
installing the blade.
Removing Blade
1) Unplug the saw from the outlet.
2) Allow the cutting head to rise to the upright

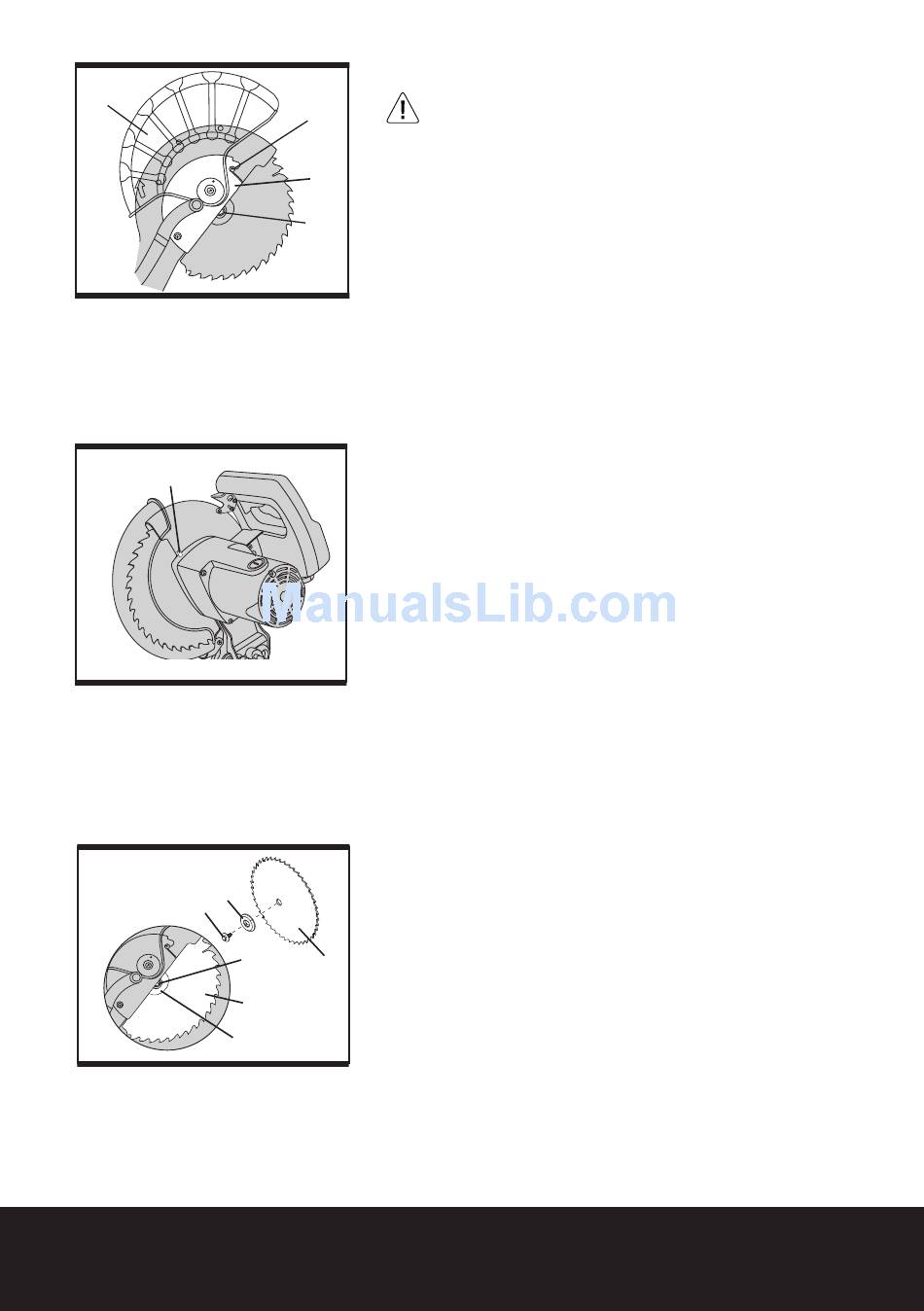

position. Raise the lower blade guard (1) to the up
position. (Fig. 9)
3) Loosen the cover plate screw (2) with a Phillips
screwdriver.
4) Rotate the cover plate (3) towards the rear of
the tool to expose the arbour bolt (4).
5) Place the blade spanner over the arbour bolt.
(See fig. 9).
6) Locate the arbour lock (5) on the motor, below the
cutting head switch handle. (See fig. 10)
7) Press the arbour lock, holding it in firmly while
turning the blade spanner clockwise. The arbour lock
will engage after turning the spanner. Continue to
hold the arbour lock in to keep it engaged, while
turning thespanner clockwise to loosen the arbour
bolt. (See fig. 10).
8) Remove the arbour bolt (8), outer blade collar (6),
and the blade (7). Do not remove the inner blade
collar. (See fig. 11)
Note: Pay attention to the pieces removed, noting
their position and direction they face. Wipe the blade
collars clean of any sawdust before installing the new
blade.
8
7
Installing Blade
Un-plug the mitre saw before changing/installing the
7
blade.
1) Install a 255 mm blade, making sure the rotation
arrow on the blade matches the clockwise rotation
arrow on the upper guard, and the blade teeth are
pointing downward.
Note: Ensure that the saw blade bore is exactly the
correct size for this machine and the diameter does
not exceed 255mm.
Warning:
