2. PREPARATION

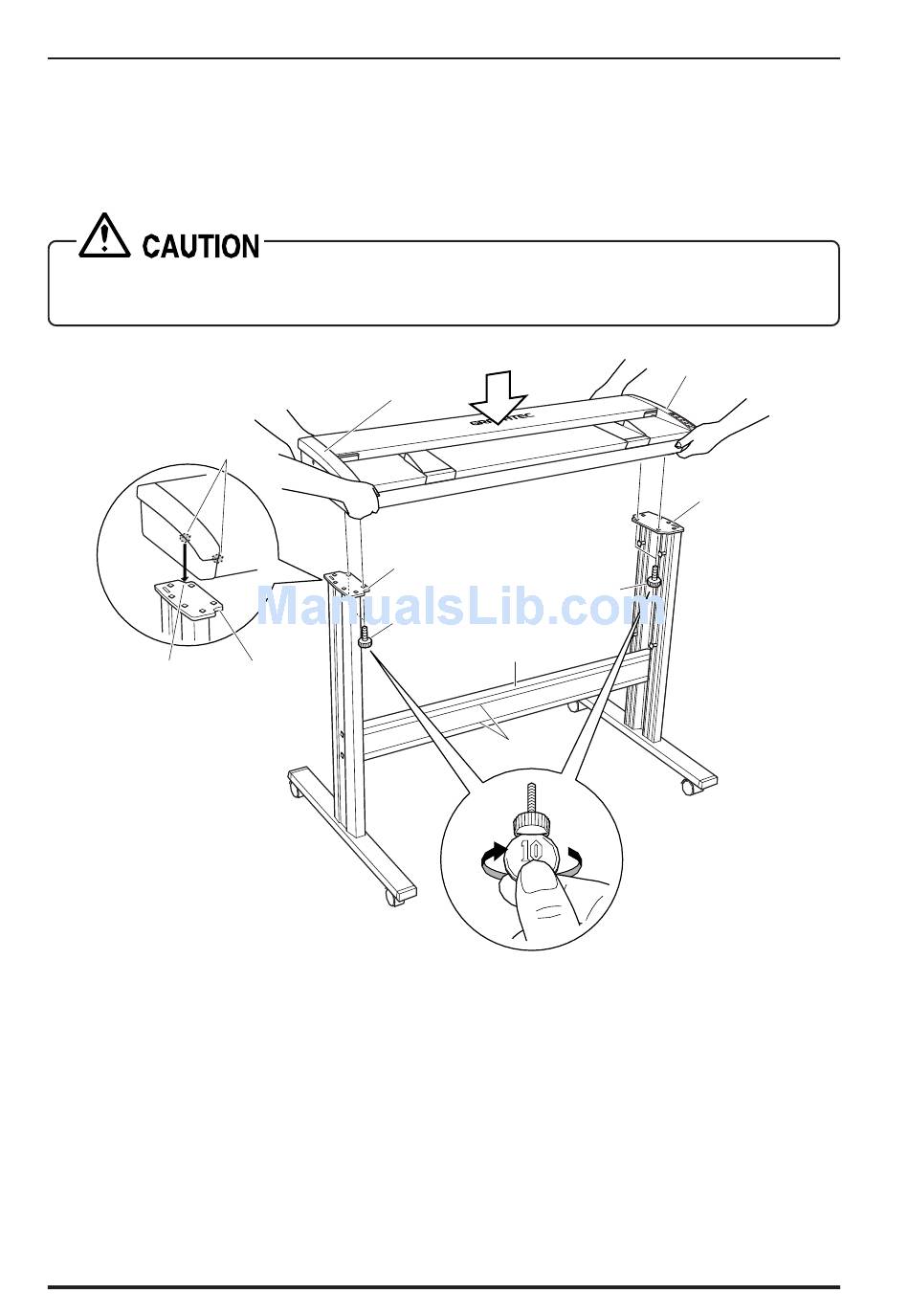

(3) Hold the scanner unit by the side covers on both sides as you adjust its position until
the rubber feet on the underside of the scanner unit are aligned with the notches in
the fixing plate of the scanner stand. Place the scanner unit on the stand, and secure
it in place using the four coin screws provided.
Holding the scanner by the rear part of the top cover may cause damage to the scanner
or to the persons doing the installation. Always hold the scanner by the underside.
Rubber feet
Notch
(4) Secure the side stays in place by tightening up the four center bar fixing screws (see
(2) above).
2 – 2
Side cover
Fixing plate
Coin screw
Fixing plate
Coin screw
Center bar
Groove
Side cover
Fixing plate
CS400/300
