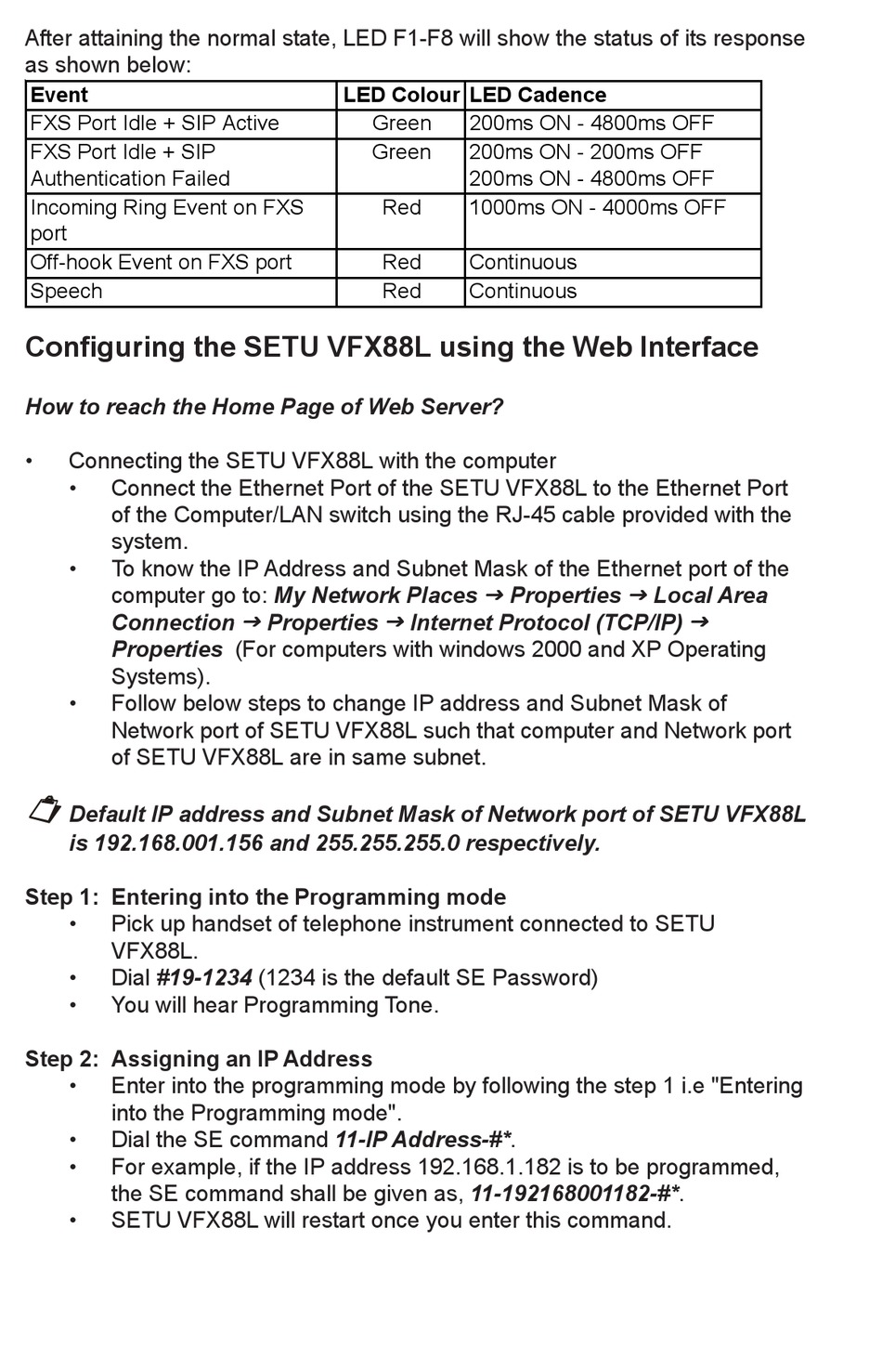

Matrix SETU VFX88L Quick Start Manual page 9

After attaining the normal state, LED F1-F8 will show the status of its response
as shown below:
Event
FXS Port Idle + SIP Active
FXS Port Idle + SIP
Authentication Failed
Incoming Ring Event on FXS
port
Off-hook Event on FXS port
Speech
Configuring the SETU VFX88L using the Web Interface
How to reach the Home Page of Web Server?
• Connecting the SETU VFX88L with the computer
• Connect the Ethernet Port of the SETU VFX88L to the Ethernet Port
of the Computer/LAN switch using the RJ-45 cable provided with the
system.
• To know the IP Address and Subnet Mask of the Ethernet port of the
computer go to: My Network Places      Properties      Local Area
Connection      Properties      Internet Protocol (TCP/IP)     
Properties (For computers with windows 2000 and XP Operating
Systems).
• Follow below steps to change IP address and Subnet Mask of
Network port of SETU VFX88L such that computer and Network port
of SETU VFX88L are in same subnet.
Default IP address and Subnet Mask of Network port of SETU VFX88L
is 192.168.001.156 and 255.255.255.0 respectively.
Step 1: Entering into the Programming mode
• Pick up handset of telephone instrument connected to SETU
VFX88L.
• Dial #19-1234 (1234 is the default SE Password)
• You will hear Programming Tone.
Step 2: Assigning an IP Address
• Enter into the programming mode by following the step 1 i.e "Entering
into the Programming mode".
• Dial the SE command 11-IP Address-#*.
• For example, if the IP address 192.168.1.182 is to be programmed,
the SE command shall be given as, 11-192168001182-#*.
• SETU VFX88L will restart once you enter this command.
LED Colour LED Cadence
Green 200ms ON - 4800ms OFF
Green 200ms ON - 200ms OFF
200ms ON - 4800ms OFF
Red 1000ms ON - 4000ms OFF
Red Continuous
Red Continuous
