Matrix SETU VFX88L Quick Start Manual page 8

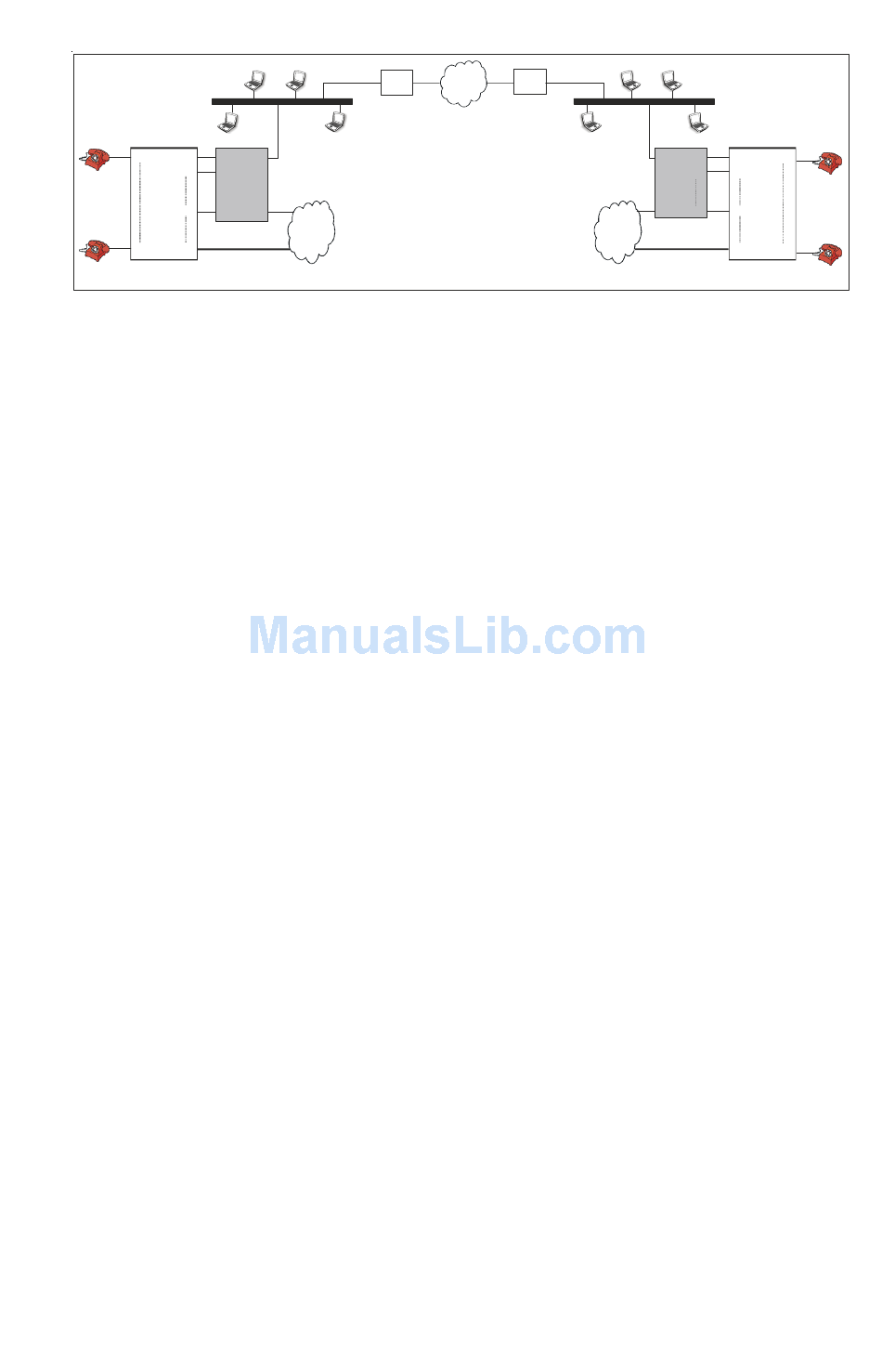

4. Peer to Peer Application-Corporate Users (Scenario-2)
FXS1 FXO1
FXO2
PBX
FXO8
FXSn FXOn
Connecting SETU VFX88L
• Connect the Ethernet port of the SETU VFX88L to the Ethernet Port of the
broadband modem/LAN switch using an Ethernet cable provided with the
system.
• Connect FXS ports of SETU VFX88L to the telephone instrument/FXO
ports of PBX using RJ11 cables.
• Connect the PSTN line to the Lifeline FXO port when it is required to be
used.
• Connect the power adaptor to the SETU VFX88L.
Switching ON the SETU VFX88L
• Power the SETU VFX88L.
• The 10 LED's on the front panel display the events of FXS port/status of
SIP Accounts.
LED marked with F1-F8 represents FXS port LED and SIP Account (1-8)
Status LED.
LED marked with STS represents System Status LED.
LED marked with PWR represents Power LED. Power LED glows Red
when gateway is powered ON.
Following LED sequence would be observed during Power ON:
• All LEDs would be OFF.
• After around 2-3 minutes, all LEDs glow Green for 500msec, Red for 500
msec, Orange for 500msec.
• All LEDs would be OFF again.
• On successful completion of initialization cycle,
• STS LED will blink Green for 1sec ON-1sec OFF continuously.
• F1-F8 LED would be OFF.
Broadband
Modem/Router
SETU VFX88L
FXS1 WAN
FXS2
FXS8 LifeLine
PSTN
IP N/w
Broadband
Modem/Router
PSTN
SETU VFX88L
WAN FXO1 FXS1
FXS1
FXO2
FXS2
PBX
FXO8
LifeLine
FXS8
FXOn
FXSn
