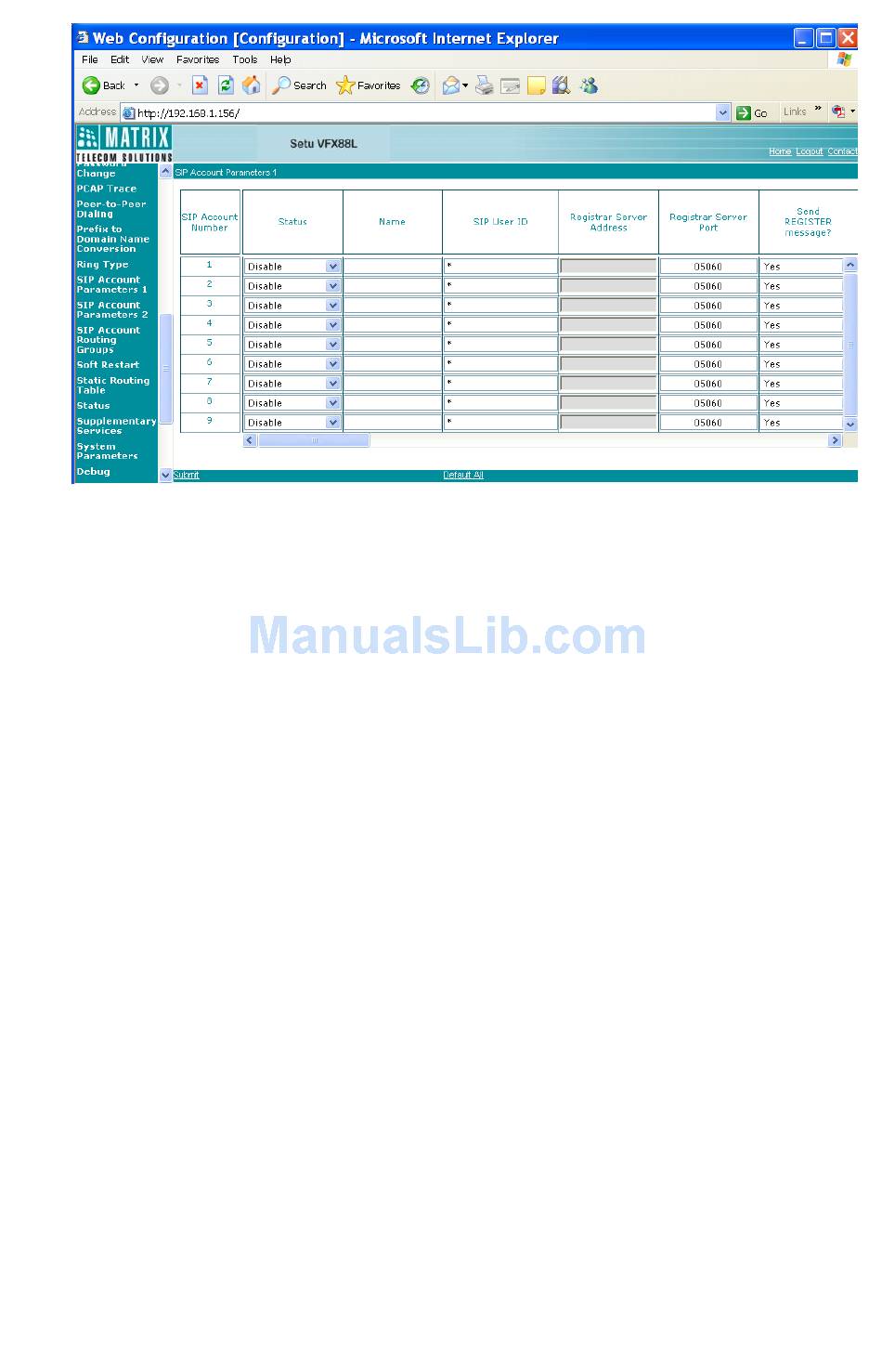

By default, Status for all SIP Accounts is 'Disabled'.
Program following parameters for registering SIP Account to ITSP:
Enable the SIP Account Status
Program following parameters as given by the ITSP:
SIP User ID
Registrar Server Address
Registrar Server Port
Authentication User ID
Authentication User Password
Outbound Proxy
Program following parameters for Peer-to-Peer application:
Enable the SIP Account Status
SIP User ID:
By default, SIP User ID is programmed as '*'.
Program SIP User ID only if you want to assign particular SIP
account to a fixed FXS port or group of FXS port i.e if particular
number (programmed as SIP User ID) is dialed by the remote
end, it should route to FXS port 1 only or to FXS port 1 to FXS
port 4, etc.
Source Port IP Address
Options supported are as given below:
By default, 'Use Network Port IP Address' is programmed.
Program this parameter if Peer-to-Peer application is to be used
and SETU VFX88L is connected behind the NAT.
Use Network Port IP Address
Use IP Address fetched using STUN
Use Router's Public IP Address
