Matrix SETU VFX88L Quick Start Manual page 18

• Dialed Number Based Routing Table is required to program only if Routing
type for any FXS port is programmed as 'Dialed Number Based'.

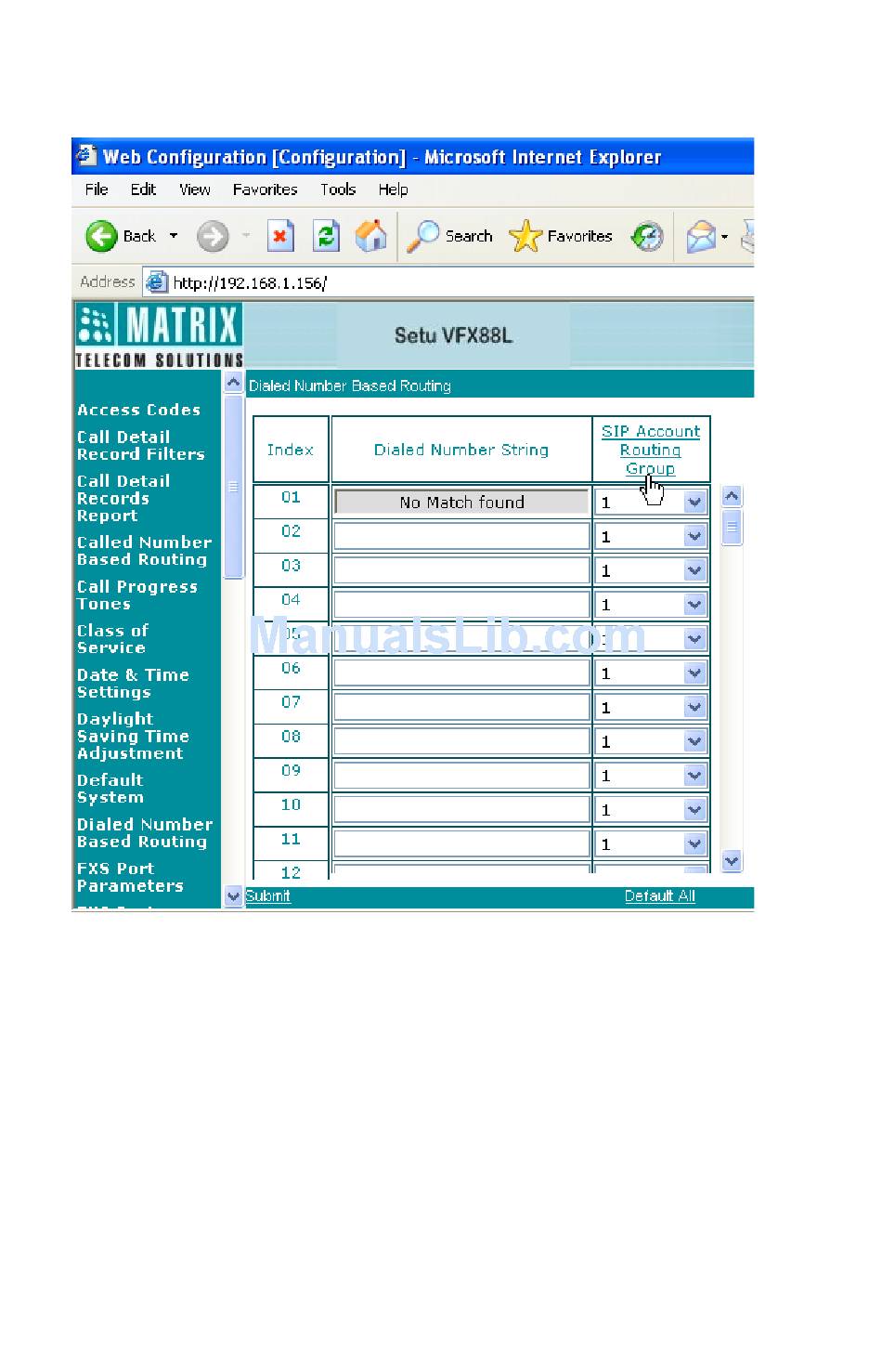

• Click on the link 'Dialed Number Based Routing' and webpage will open
as given below:
• By default, all Dialed number string is blank and SIP Account routing
group viz. 1 is assigned to all indices.
• Program the desired number/prefix to be out dialed and program SIP
account routing group to be used for routing that desired number/prefix.
Configuring the Peer-to-Peer Dialing
• Peer-to-Peer Dialing table allows the system to select the destination
address for the number to be out dialed.
• Peer-to-Peer Dialing table is required to program only if call is to be routed
through any non-proxy SIP Account.
• Click on the link 'Peer-to-Peer Dialing' and webpage will open as given
below:
