Electric Lock Connection

®
2N Helios IP Force is equipped with an electrically isolated relay switch with NO and
NC contacts (terminal block X17) and 12V/700mA switched output (terminal block
X18), to which a standard electric lock or another compatible electrical appliance can
be connected.

Configuration Jumpers

Configuration jumpers (X6) are located in the right-hand upper corner of the PCB and
help reset the factory default values.
Factory Default Resetting
1. Disconnect the device from the power supply.
2. Move the short-circuit jumper on connector X6 into the Default setup
position.
3. Reconnect the power supply and wait for a start signalling sound.
4. Disconnect the device from the power supply.
5. Move the short-circuit jumper on connector X6 into the Normal operation
position.
6. Reconnect the power supply. The device will be reset to factory default.

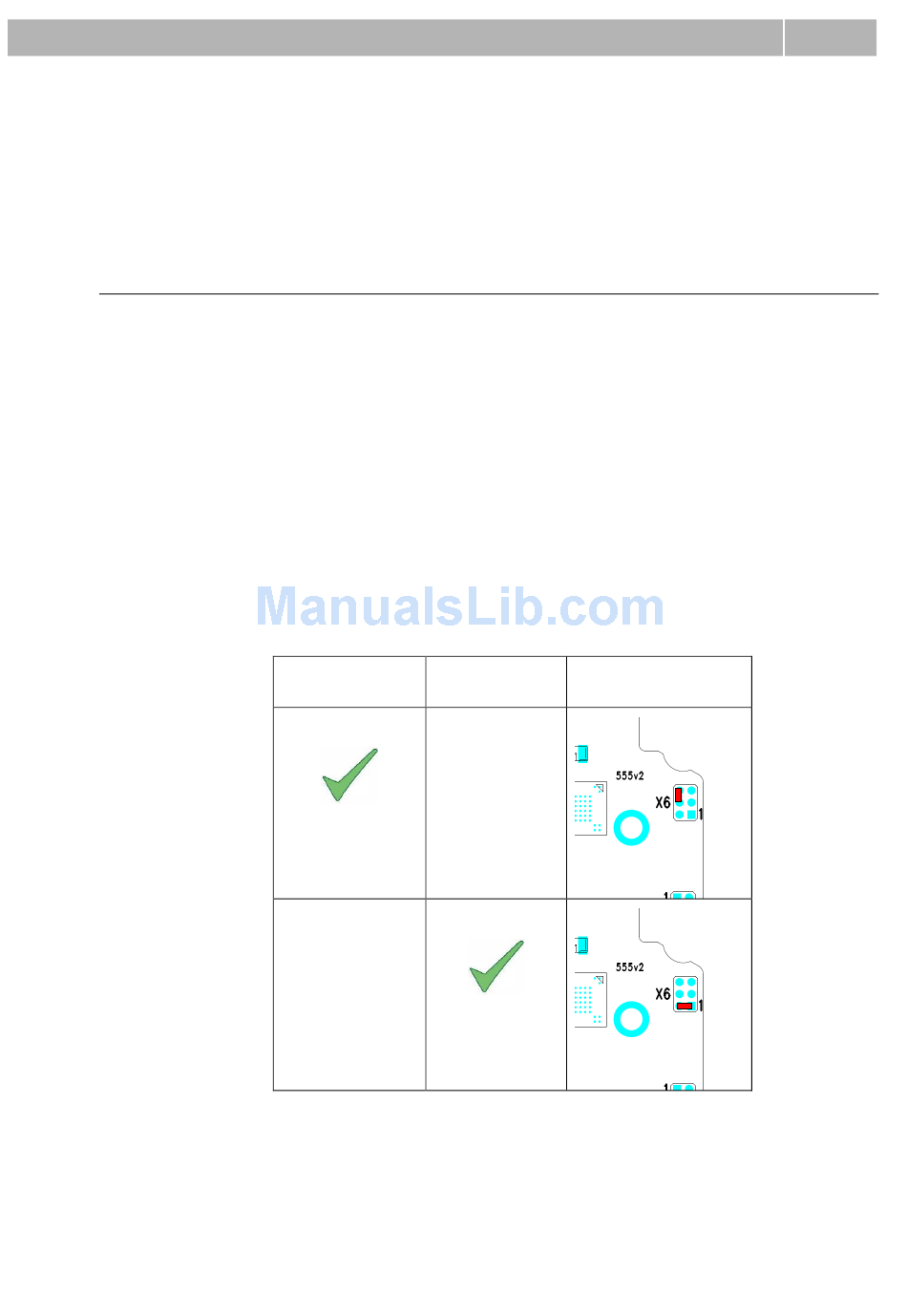

Table 2.1 Configuration Jumpers X6
Normal Default
operation setup
Electric Installation
Connector X6
