Flush Mounting – Classic Bricks
If you use the brick flush mounting box, follow the instructions included in the box. If
you do not use the mounting box, follow the instructions below:
1. Make a hole using the template.
Suppose that all the required
cables have been carried into
the hole.
2. Unpack the frame, put the
intercom inside and place the
set onto the hole to make sure
that the hole is deep enough
and the uneven edge is
perfectly covered with the
frame.
3. Push or hammer the enclosed
dowels into the drilled holes.
Use some suitable building
adhesive if the dowels are too
loose.
4. Remove the front panel from
the intercom. The electronic
parts of the two bottom buttons
remain on the panel in the four-
name plate version.
5. Select the holes for cable
supply. Insert the blanks into
the other holes. Apply the cable
bushings or a suitable sealant to
prevent penetration of insects
or water. You can also insert the
small bushing in the intercom
bottom hole.
6. Put the frame on the intercom.
7. Place the intercom into the hole
while introducing the cables.
Leave some of the cables inside
the unit as a reserve and the
rest under the intercom bottom.

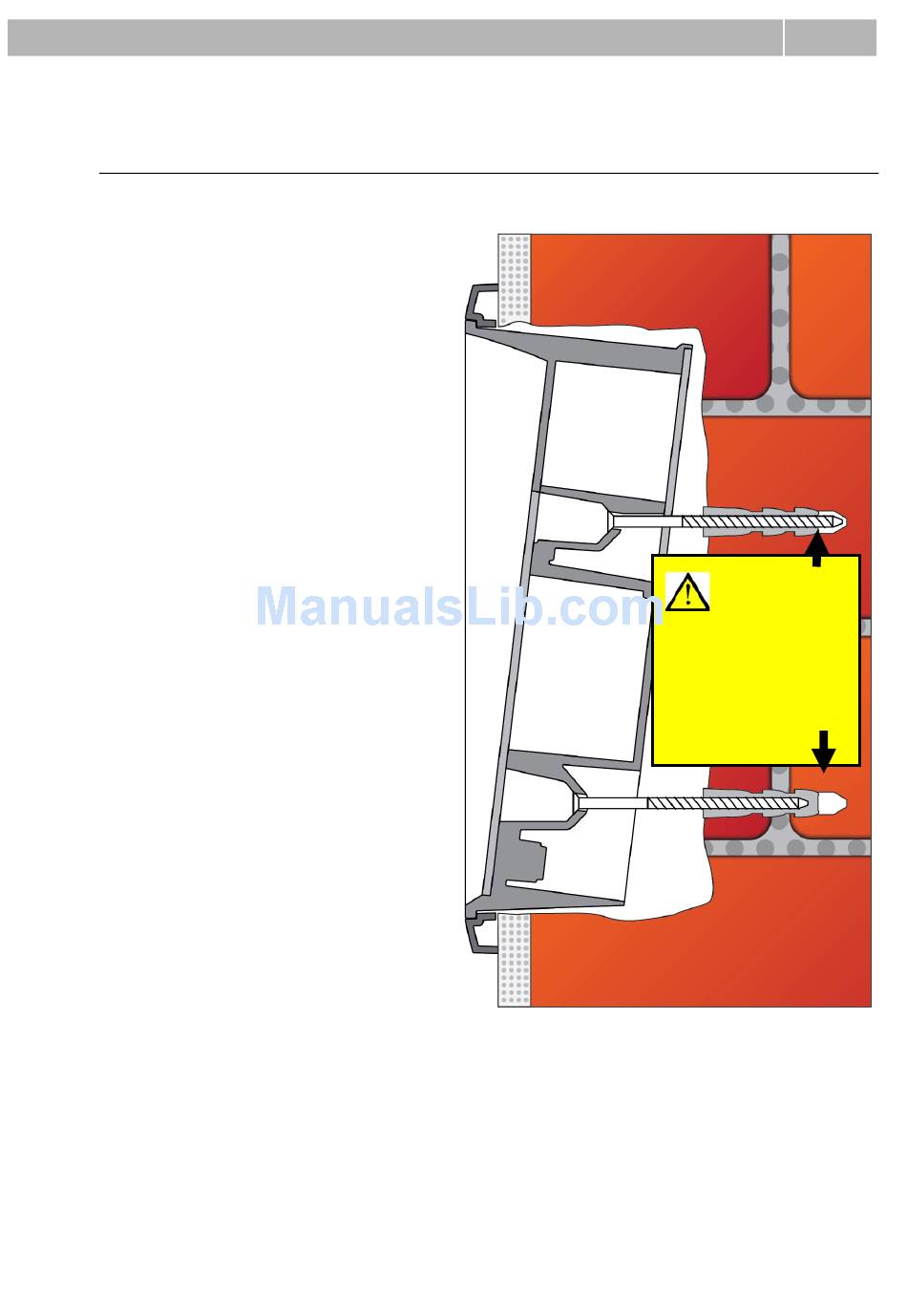

8. Insert the enclosed screws in
the lateral mounting holes making sure they have penetrated into the dowels.
Tighten all the screws properly. Tip: The screw tightening sequence may affect the
intercom position.
9. You can seal the frame - wall gap with a silicone or another sealant to avoid wall
dampening as a result of water leakage. This additional sealing is unnecessary for
the intercom function.
10. Do not complete mounting until you have finished electrical installation – refer to
Mounting Completion
Mechanical Installation
the dowel holes are
drilled accurately!
You will not be able
to align considerable
inaccuracies with this
way of mounting!
