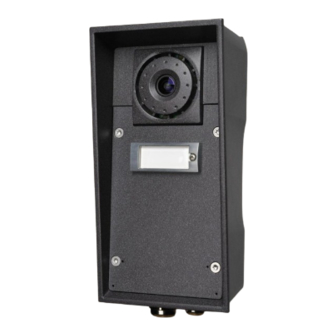

2N Helios IP Force Installation Manual
Door access intercom
Hide thumbs
Also See for Helios IP Force:
- Installation manual (65 pages) ,
- Installation manual (110 pages) ,
- Manual (4 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Installation Manual
Advertisement
Table of Contents
Related Manuals for 2N Helios IP Force
Summary of Contents for 2N Helios IP Force

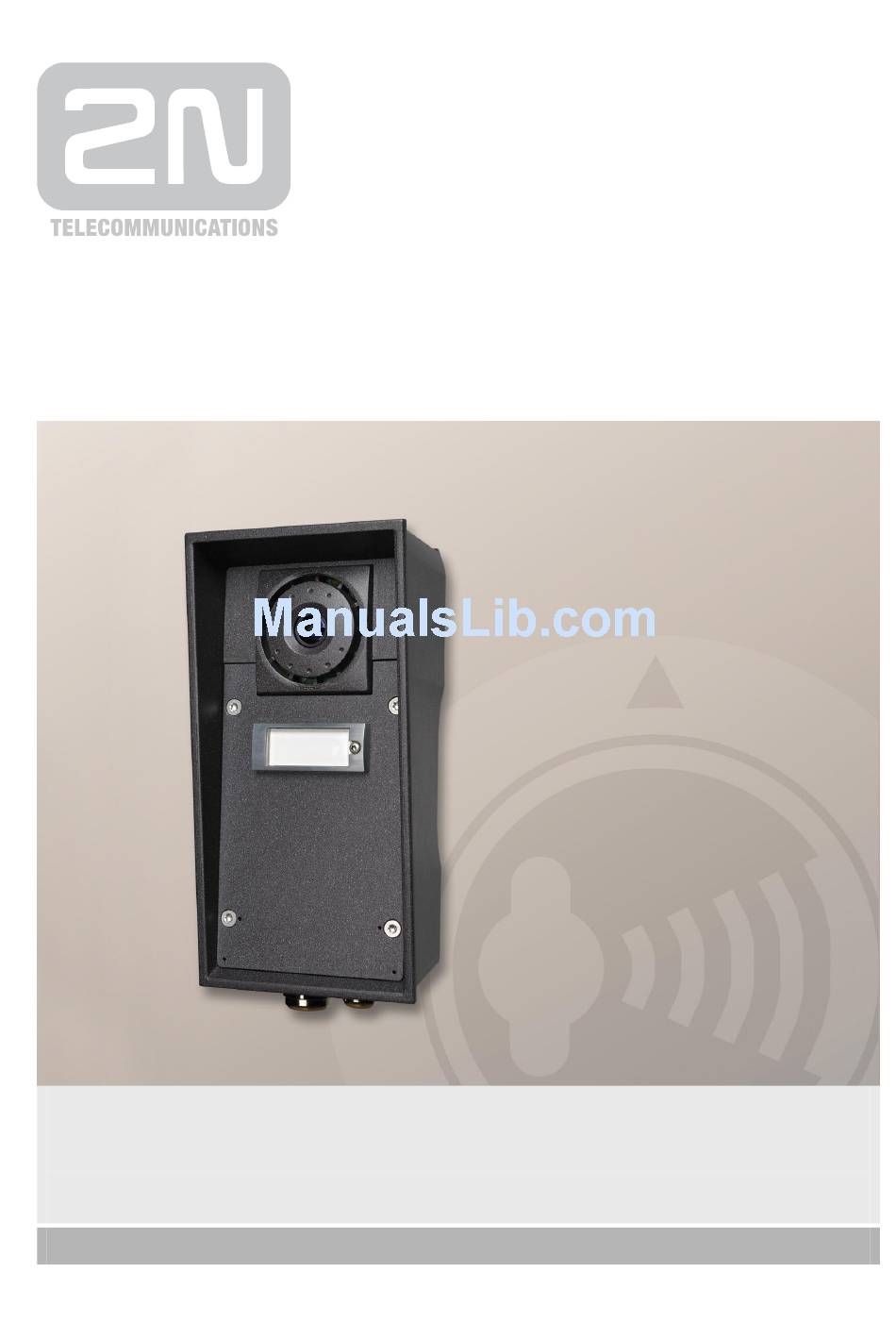

- Page 1 ® Helios IP Force Door Access Intercom Installation Manual www.2n.cz Version 1.0.0...
- Page 2 1999/5/EC directive. For the full wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz. 2N TELEKOMUNIKACE company is the owner of the ISO 9001:2008 certificate. All...
-
Page 3: Table Of Contents
Basic Features........................7 Advantages of Use ......................8 Upgrade ........................... 9 ® Helios IP Force Components and Associated Products........10 Basic Units ........................10 Flush Mounting Box ......................11 GSM / UMTS Connection Accessories ................11 VoIP Connection Accessories ..................12 Electric Locks ......................... - Page 4 3. Function and Use ............. 29 ® Helios IP Force Configuration ................31 ® Helios IP Force Control ..................33 Speed Dial Buttons ......................33 Calling to Telephone Directory Positions ............... 33 Calling to Telephone Number ..................33 Answering and Rejecting Incoming Calls ............... 33 Door Opening (Switch Activation) by Code ..............
-
Page 5: Product Overview
Product Overview ® In this section, we introduce the 2N Helios IP Force product, outline its application options and highlight the advantages following from its use. Here is what you can find in this section: Product Description Upgrade ... -
Page 7: Product Description
Helios IP Force can also be provided with RFID card reader modules. ® Helios IP Force is very easy to install. All you have to do is connect the system into your LAN via a network cable and feed it from a 12V power supply or your PoE supporting LAN. -
Page 8: Advantages Of Use
Advantages of Use Uncompromising AntiVandal design High covering level – up to class IP69 Variable mounting options (brick/plasterboard flush mounting, surface mounting) Sensitive microphone and powerful loudspeaker Bidirectional communication – acoustic echo cancelling Integrated colour camera with wide-angle lens ... -
Page 9: Upgrade
1.2 Upgrade The manufacturer reserves the right to modify the product in order to improve its qualities. Version Changes... -
Page 10: Helios Ip Force Components And Associated Products
® Helios IP Force is designed for outdoor applications and requires no additional roof. W- including Part Nos. are intended for WAP pressure cleaning and extremely noisy environments (such as highways, etc.). ® All 2N Helios IP Force units can be flush or wall mounted without requiring any additional accessories. -
Page 11: Flush Mounting Box
Flush Mounting Box 9151001 9151002 Brick flush mounting Plasterboard flush mounting box GSM / UMTS Connection Accessories 505004 505214 505612 ® ® ® VoiceBlue Lite VoiceBlue Enterprise UMTS Office Route... -
Page 12: Voip Connection Accessories
VoIP Connection Accessories 91378100 91378300 91378350 PoE injector Grandstream VoIP telephone Grandstream VoIP video telephone Electric Locks 932070 932080 932090 BEFO 1211 12V / 600 mA BEFO 1221 BEFO 1211MB with momentary pin with mechanical blocking Other Accesories 91341481E 932928E 9137410E 12 V/2 A adapter 12 V transformer... -
Page 13: Terms And Symbols
1.4 Terms and Symbols Symbols Safety Warning Always abide by this information to prevent injury of persons! Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful advice. ... -
Page 14: Description And Installation
Description and Installation ® In this section we describe the 2N Helios IP Force product and its installation. Here is what you can find in this section: Before You Start Mechanical Installation Button Tags – Insertion and Replacement ... -
Page 15: Before You Start
Before You Start 2.1 Before You Start Product Completeness Check ® Please check the contents of your 2N Helios IP Force delivery: ® 1 2N Helios IP Force (selected model) 1 frame (of the corresponding colour) 1 Torx 10 / Torx 20 double-ended wrench... -
Page 16: Mechanical Installation
Mechanical Installation 2.2 Mechanical Installation Mounting Type Overview Refer to the table below for a list of mounting types and necessary components. Flush mounting – classic bricks What You Need: A precisely cut hole or, optionally, the brick flush mounting box, Part No. 9151001 Flush mounting –... - Page 17 Wall mounting (concrete and steel structures, entry barrier columns, etc.) What You Need: ® Just your 2N Helios IP Force unit (the covering frame is not applied) Caution The warranty does not apply to the product defects and failures arisen as ...
-
Page 18: Common Mounting Principles
Remember that dowels of poor quality may easily get loose and fall out of the wall! ® Stainless steel screws are used for the 2N Helios IP Force assembly. Other screws than stainless steel ones corrode soon and may aesthetically... -
Page 19: Flush Mounting - Classic Bricks
Mechanical Installation Flush Mounting – Classic Bricks If you use the brick flush mounting box, follow the instructions included in the box. If you do not use the mounting box, follow the instructions below: 1. Make a hole using the template. Suppose that all the required cables have been carried into the hole. -
Page 20: Flush Mounting - Thermally Insulated Wall
Mechanical Installation Flush Mounting – Thermally Insulated Wall Cut out the thermal insulation layer using the template (the same as for classic brick wall). Caution The hole depth depends on the insulation layer thickness. If the insulation layer is rather thick, you may need longer screws! If there are hollow bricks under the insulation, make sure that your screws pass through the whole dowel (50 mm) and fix the dowel reliably. -
Page 21: Flush Mounting - Hollow Bricks
® Suppose you intend to install your 2N Helios IP Force unit into a wall made of hollow bricks. Note that the external side of the bricks gets damaged by cutting and the dowels cannot practically be fixed into the thin internal part of the bricks. Therefore, use the brick flush mounting box and follow the instructions included therein. -
Page 22: Wall Mounting
The manufacturer shall not be liable for injuries incurred as a result of unsafe mounting! 1. Select the 2N® Helios IP Force position with respect to the supply cables. Where the cables are installed inside a structure or wall, use the hole at the intercom bottom. -
Page 23: Use Of Cable Bushings
Use of Cable Bushings ® The cable bushings included in the 2N Helios IP Force delivery are designed for the following cables: Big bushing: for two cables of the diameter of 5–6 mm (UTP cable), or, upon insert replacement, for one thick cable/tube of the diameter of up to 14 mm. -
Page 24: Electric Installation
Network (LAN) and how to connect supply voltage and the electric lock. PCB Connectors ® Fig. 2.11 shows the lay-out of connectors on the 2N Helios IP Force printed circuit board (PCB). Cables, accessories and other system components are connected to connectors X1 through X22. - Page 25 MDIX function and so both the straight and crossed cable versions can be used. External Power Supply Connection ® Helios IP Force can be fed either from an external 12V/1A DC power supply or from the LAN equipped with the PoE 802.3af supporting network elements. External Power Supply An external 12V power supply is connected to terminal block X19.
-
Page 26: Electric Lock Connection
Electric Lock Connection ® Helios IP Force is equipped with an electrically isolated relay switch with NO and NC contacts (terminal block X17) and 12V/700mA switched output (terminal block X18), to which a standard electric lock or another compatible electrical appliance can be connected. -
Page 27: Mounting Completion
An incorrect mounting may compromise the intercom watertightness. Water leakage may damage the electronic part of the system. ® Stainless steel screws are used for the 2N Helios IP Force assembly. Other screws than stainless steel ones corrode soon and may aesthetically... -
Page 28: Button Tags - Insertion And Replacement
2.4 Button Tags – Insertion and Replacement Tag Printing Every 2N® Helios IP Force delivery includes a sheet of translucent foil, which can be laser-printed. Cut the printed foil and insert the tags in the name plates. Every name plate includes a piece of foil, which can be written over manually, using a waterproof permanent marker, if necessary. -
Page 29: Function And Use
Function and ® In this section we describe the basic and extending functions of the 2N Helios IP Force product. Here is what you can find in this section: Configuration Control Maintenance ... -
Page 31: Helios Ip Force Configuration
You have to know the IP address of your device to log in to the integrated web server. ® By default, 2N Helios IP Force is switched into the dynamic IP address mode, i.e. it obtains the IP address automatically if a properly set DHCP server is available in your ®... - Page 32 Note: The 2, 1, 1, 2, 2, 3 sequence must be entered within 30 seconds after the first sound signal for security reasons. The inter-digit delay may be 2s at most. ® Helios IP Force gets the IP address upon restart only if the DHCP server is configured properly. Mode Switching with 1 or 2-Button Models ®...
-
Page 33: Helios Ip Force Control
® The 2N Helios IP Force telephone directory can contain up to 999 pre-programmed positions. Speed dial can only be used for positions 1 to 4. The remaining positions can be retrieved via the numerical keypad if the Speed dial using digits function is enabled. -
Page 34: Door Opening (Switch Activation) By Code
Door Opening (Switch Activation) by Code ® Helios IP Force is equipped with a door lock opening switch. Enter the valid code using your numerical keypad to activate the switch. Procedure: Enter the numerical switch activating code using the numerical keypad and press * for confirmation. -
Page 35: Maintenance
Cleaning ® If used frequently, 2N Helios IP Force gets dirty. To clean it, use a piece of soft cloth moistened with clean water. We recommend you to obey the following principles while cleaning: Never use aggressive detergents (such as abrasives or strong disinfectants). -
Page 37: Technical Parameters
Technical Parameters ® In this section we describe the technical parameters of the 2N Helios IP Force product. -
Page 39: Technical Parameters
4.1 Technical Parameters Signalling protocol SIP (UDP) Buttons Transparent, white backlit buttons with easily Button design replaceable name tags Count of buttons 1, 2 or 4 Numerical keypad optional Audio Microphone 2 integrated microphones Amplifier 10W (class D) Loudspeaker 1W (optionally 10W) Volume control Adjustable with automatic adaptive mode Full duplex... - Page 40 Supported cards EM-40XX (125Khz) HID Proximity (125kHz, 26bit) Mechanical properties Robust aluminium cast product, stainless steel front Cover panel Colour Working temperature -20°C to 55°C Working relative humidity 10% - 95% (non-condensing) Storing temperature -40°C to 70°C Dimensions 217x109x83 mm 242x136x83 mm incl.
-
Page 41: Supplementary Information
Supplementary Information ® This section provides supplementary information on the 2N Helios IP Force product. Here is what you can find in this section: Applicable Directives, Laws and Regulations ... -
Page 42: Directives, Laws And Regulations
Directives, Laws and Regulations 5.1 Directives, Laws and Regulations ® Helios IP Force conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 – on radio equipment and telecommunications terminal... -
Page 43: Troubleshooting
Troubleshooting 5.2 Troubleshooting For tips concerning solutions of other potential problems see faq.2n.cz. -
Page 44: General Instructions And Cautions
General Instructions and Cautions 5.3 General Instructions and Cautions Please read this User Manual carefully before using the product. Follow all instructions and recommendations included herein. Any use of the product that is in contradiction with the instructions provided herein may result in malfunction, damage or destruction of the product. -
Page 45: Electric Waste And Used Battery Pack Handling
General Instructions and Cautions Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental-friendly disposal. - Page 46 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz DR1755 v1.0...
