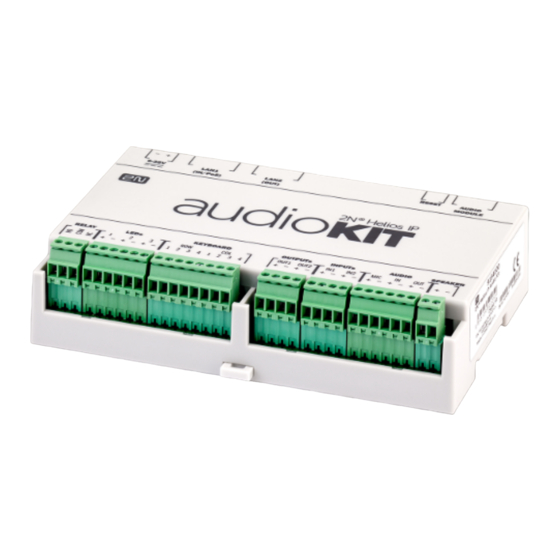

2N Helios IP Audio Kit
IP Intercom Module
Installation Manual
Version:
2.10
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Helios IP Audio Kit and is the answer not in the manual?

Questions and answers

Related Manuals for 2N Helios IP Audio Kit

Summary of Contents for 2N Helios IP Audio Kit

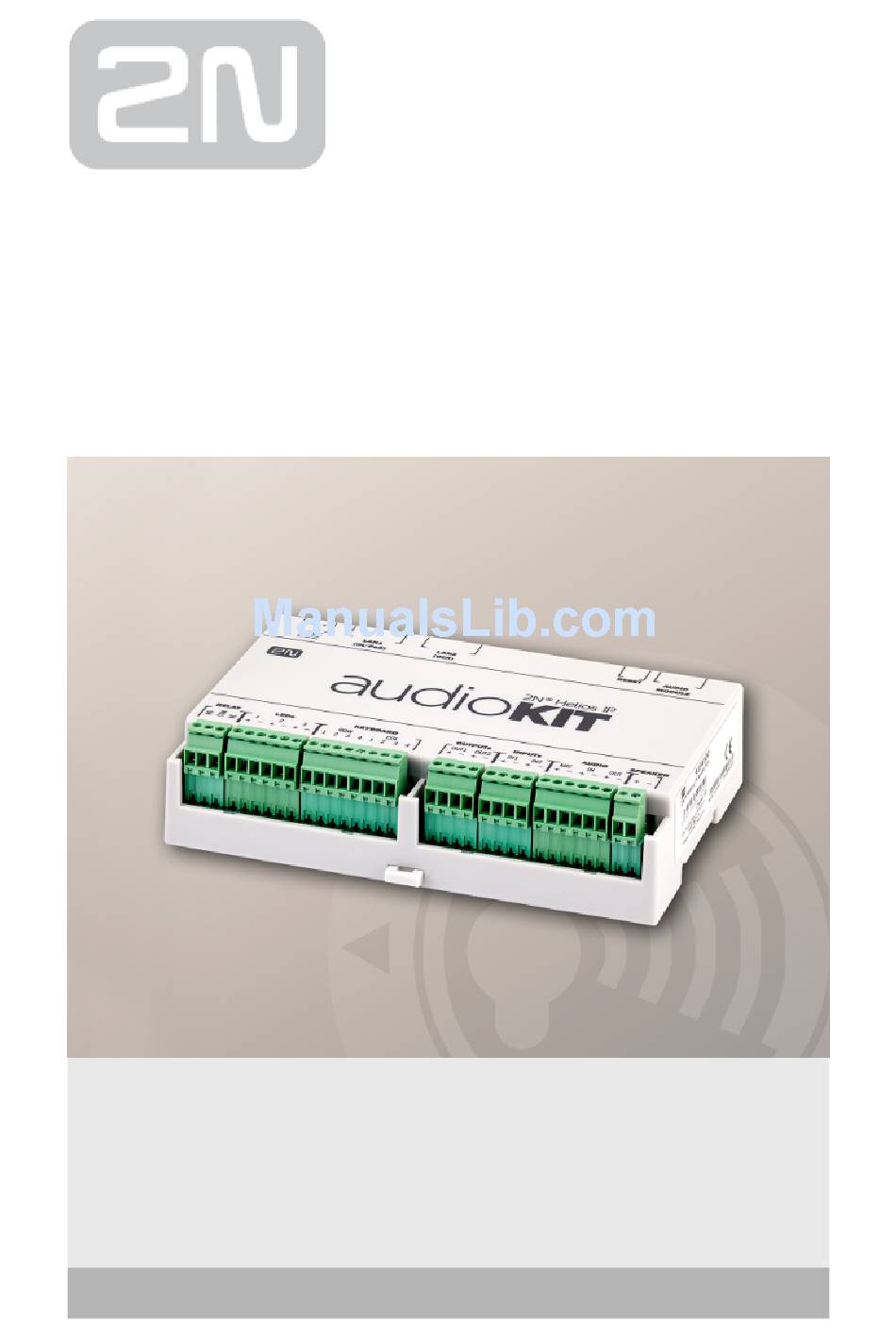

  • Page 1 ® 2N Helios IP Audio Kit IP Intercom Module Installation Manual Version: 2.10 www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".
  • Page 3 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Extending Module Connection 2.5 Configuration 2.6 Downloads 3. Technical Parameters 4. Supplementary Information 4.1 Troubleshooting 4.2 Directives, Laws and Regulations 4.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 3/49...

  • Page 4: Product Overview

    1. Product Overview Here is what you can find in this section: 1.1 Components and Associated Products 1.2 Terms and Symbols 2N TELEKOMUNIKACE a.s., www.2n.cz 4/49...

  • Page 5: Basic Features

    Basic Features ® Helios IP Audio Kit is a universal and reliable IP intercom module designed for integration in the third parties' equipment. It is provided with a number of useful functions that are not quite common in the devices of this category. Featuring the SIP standard support and compatibility with renowned IP exchange and telephone ®...
  • Page 6 2N TELEKOMUNIKACE a.s., www.2n.cz 6/49...

  • Page 7: Advantages Of Use

    Bidirectional communication – acoustic echo cancelling Configuration via web interface/special PC application SIP 2.0 support HTTP(S) server for configuration SNTP client for server time synchronisation RTSP server for audio streaming TFTP client for automatic configuration and firmware update 2N TELEKOMUNIKACE a.s., www.2n.cz 7/49...

  • Page 8: Components And Associated Products

    1.1 Components and Associated Products Basic Units Part No. 9154100 Intercom module in plastic box Part No. 9154101 Intercom module without box Part No. 9154102 Lite intercom module in plastic box 2N TELEKOMUNIKACE a.s., www.2n.cz 8/49...

  • Page 9: Internal Units

    On the panel’s display not only can you find out who is at the door, but also start a conversation with the visitor, open the lock or turn on the light in the entrance hall. 2N TELEKOMUNIKACE a.s., www.2n.cz 9/49...

  • Page 10: Voip Telephones

    IP network. Touchscreen and keyboard control. Part No. 91378358 Grandstream GXV3275 VoIP telephone GXV3275 is the successor to the popular GXV3175 model, which allows comfortable video calls in the IP network. Touchscreen control. 2N TELEKOMUNIKACE a.s., www.2n.cz 10/49...

  • Page 11: Electric Locks

    BEFO 11211MB with mechanical blocking 12 V / 230 mA DC low consumption Enables mechanically close or open the lock. When opened, the lock is open all the time. When closed, it behaves as standart electrical lock. 2N TELEKOMUNIKACE a.s., www.2n.cz 11/49...

  • Page 12: Power Supply

    When electricity is interrupted, the lock is opened. It contains a built-in contact to indicate whether the door is open or closed. FAQ: Electric locks – Difference between locks in 2N Helios IP accesories Power Supply 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 13 A stabilised power supply has to be used if the Ethernet (PoE) power supply is not available. Part No. 932928 12 V transformer For external power supply of the lock with 12 V AC voltage. 2N TELEKOMUNIKACE a.s., www.2n.cz 13/49...

  • Page 14: Two-Wire Connection

    ® 2Wire unit then provides power not only to the second converter, but also to all other connected IP end devices. 2N TELEKOMUNIKACE a.s., www.2n.cz 14/49...

  • Page 15: External Switches

    Part No. 9137411E External IP Relay – 4 outputs, PoE Standalone IP device which can be controlled by HTTP commands sent by Helios IP intercom, which can thus control devices on unlimited distance. 2N TELEKOMUNIKACE a.s., www.2n.cz 15/49...

  • Page 16: Sensors And Switches

    Set for installation on a door, enabling the status of door opening to be ascertained. Used when the intercom is used for door protection, to detect when the door is not closed or forced open. 2N TELEKOMUNIKACE a.s., www.2n.cz 16/49...

  • Page 17: Audio Accessories

    Speaker with self-adhesive layer. External dimensions 60 x 60 mm, actual speaker diameter 45 Cable length 1.4 m. Must be protected from water penetration. For more accessories and particular advice please contact your local distributor of 2N products. 2N TELEKOMUNIKACE a.s., www.2n.cz 17/49...

  • Page 18: Terms And Symbols

    Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 18/49...

  • Page 19: Description And Installation

    2. Description and Installation Here is what you can find in this section: 2.1 Before You Start 2.2 Mechanical Installation 2.3 Electric Installation 2.4 Extending Module Connection 2.5 Configuration 2.6 Downloads 2N TELEKOMUNIKACE a.s., www.2n.cz 19/49...

  • Page 20: Product Completeness Check

    Product Completeness Check ® Before installing this product, please check whether the 2N Helios IP Audio Kit delivery complies with the following packing list. ® 1x 2N Helios IP Audio Kit 1x Short Installation Manual 2N TELEKOMUNIKACE a.s., www.2n.cz 20/49...

  • Page 21: Mounting Types

    Use the proper wall mounting screws and dowels (not included in the delivery). Hang the device on the wall using the cover bottom holes. DIN rail mounting Mount the device to a standard TS 35 DIN rail. The recommended minimum DIN rail length is 14 cm. 2N TELEKOMUNIKACE a.s., www.2n.cz 21/49...
  • Page 22 When the proper mounting instructions are not met, water might get in and destroy the electronics. It is because the intercom circuits are under continuous voltage and water infiltration causes an electro-chemical reaction. The manufacturer's warranty shall be void for products damaged in this way! 2N TELEKOMUNIKACE a.s., www.2n.cz 22/49...

  • Page 23: Electric Installation

    2.3 Electric Installation ® This subsection describes how to connect the Helios IP Audio Kit into your Local Area Network (LAN) and how to connect supply voltage and other electric interfaces. The device must be part of the electrical system of the building.
  • Page 24 Connectors PCB Connectors 2N TELEKOMUNIKACE a.s., www.2n.cz 24/49...
  • Page 25 ROW1–4 available at Lite version BUTTON   Only at Lite version, a button is mapped to pins COL1 ROW4. This position is mapped to sign * by default. Refer to the section Connection of Keypad/Buttons. 2N TELEKOMUNIKACE a.s., www.2n.cz 25/49...
  • Page 26 IN1− version IN2+, IN2− AUDIO MIC+, Microphone input MIC− line input, not available at Lite version IN+, IN− line output, not available at Lite version OUT+, OUT− SPEAKER SPK+, Power amplifier output for loudspeaker SPK− 2N TELEKOMUNIKACE a.s., www.2n.cz 26/49...

  • Page 27: Connection To Lan

    Connection to LAN ® Connect Helios IP Audio Kit to the LAN using an RJ-45 terminated UTP/STP cable (of category Cat 5e or higher). As the device is equipped with the Auto-MDIX function, you can use either the straight or crossed cable version.

  • Page 28: Poe Supply

    PoE Supply ® Helios IP Audio Kit is compatible with the PoE 802.3af technology (Class 0–12.95 W) and can be supplied directly from the LAN via compatible network elements. If your LAN lacks such compatible elements, you can insert a PoE injector, Part No.

  • Page 29: Connection Of Led Indicators

    Connection of LED Indicators ® Helios IP Audio Kit is equipped with three independent current LED control outputs (LED1±, LED2± and LED3± terminals). All of them are current outputs (20 mA, up to 12 V). You can connect the LEDs directly to the terminals of these outputs or use LEDs with serial resistors.

  • Page 30: Connection Of External Loudspeaker

    Connection of External Loudspeaker ® Helios IP Audio Kit is equipped with an integrated 10 W power amplifier of class D. The amplifier output is available on the SPEAKER+ and SPEAKER- terminals. The maximum power is achievable with a 4 Ω loudspeaker only.

  • Page 31: Connection Of External Microphone

    Connection of External Microphone ® Helios IP Audio Kit is equipped with an input for connection of an external electret microphone on the MIC+ and MIC- terminals. Shielding of the shielded cable is connected to the IN- terminal. Caution Undesired noise may be heard in the earphone where EMI affects the microphone signal.

  • Page 32: Connection To Relay Output

    Connection to Relay Output ® Helios IP Audio Kit is equipped with one galvanically isolated relay switch with N /O and N/C contacts on the NC, NO and COM terminals. The relay function is programmable. Warning Do not exceed the voltage and current limits for the load connected to the relay contacts as specified in the technical parameters of the device to avoid device damage.

  • Page 33: Connection To Digital Inputs

    Connection to Digital Inputs ® Helios IP Audio Kit is equipped with two digital inputs on the IN1± and IN2± terminals. The digital inputs recognise the following two logic levels: log. 0 for voltage under 1.1 V a log. 1 for voltage over 3 V. Keep the voltage polarity to make the function work properly.

  • Page 34: Extending Module Connection

    Helios IP Security Relay is a device installed between an intercom (outside ® the secured area) and the electric lock (inside the secured area). The 2N Helios IP Security Relay includes a relay that can only be activated if the valid opening code is received from the intercom.

  • Page 35: Status Signalling

    Helios IP Security Relay is on or blinking. ® Press and hold the Helios IP Security Relay Reset button for 5 seconds to put the device in the programming mode (both the red and green LEDs are blinking). 2N TELEKOMUNIKACE a.s., www.2n.cz 35/49...
  • Page 36 Helios IP Security Relay using the instructions above. ® FAQ: 2N Helios IP Security Relay – what it is and how to use it with 2N Helios IP intercom? Video Tutorial: Door intercoms 2N Helios IP – Security Relay Connection: 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 37: Device Configuration

    Dynamic IP address mode, i.e. it obtains the IP address automatically if there is an adequately set DHCP server in the ® LAN. If no such server is available, set the Static IP address mode to your 2N Helios IP Audio Kit If the device remains inaccessible (you have forgotten the IP address or the LAN configuration has changed, e.g.), change the network settings using the RESET button...
  • Page 38 Wait until the red and green LEDs on the device come on simultaneously (approx. 15 s). Wait until the red LED goes off (approx. 5 s). Wait until the green LED goes off and the red LED comes on again (another 5 s). Release the RESET button. 2N TELEKOMUNIKACE a.s., www.2n.cz 38/49...
  • Page 39 In case of resetting the factory default settings on a device with a version of firmware 2.18 or higher it is necessary to reprogram the ® Helios IP Security Relay using the instructions from section 2N TELEKOMUNIKACE a.s., www.2n.cz 39/49...
  • Page 40 Software ® Helios IP network scanner 3.0.4 2N TELEKOMUNIKACE a.s., www.2n.cz 40/49...

  • Page 41: Technical Parameters

    Line input: Max. 755 mV RMS, Rin = 47 kΩ Amplifier output: 10 W amplifier of class D, MONO output, THD < 1%, minimum loudspeaker impedance: 4 Ω Line output: Max. 755 mV RMS, Rout = 600 Ω Acoustic echo cancelling: AEC, full duplex 2N TELEKOMUNIKACE a.s., www.2n.cz 41/49...
  • Page 42 Characteristics: Uin < 1.1 V (L), Uin > 3 V (H), max. Uin = 32 V Relay Output Output count: 1 (NC, NO, COM terminals) Output function: User programmable Limits (DC): Up to 30 V DC / 1 A Limits (AC): Up to 125 V AC / 0.3 A 2N TELEKOMUNIKACE a.s., www.2n.cz 42/49...
  • Page 43 Protection class: IP20 (Part No. 9154100), IP00 (Part No. 9154101) Note If you feed the device from a DC power source and the supply voltage is lower than 12 V, then the output voltage is limited to the supply voltage value. 2N TELEKOMUNIKACE a.s., www.2n.cz 43/49...

  • Page 44: Supplementary Information

    4. Supplementary Information Here is what you can find in this section: 4.1 Troubleshooting 4.2 Directives, Laws and Regulations 4.3 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 44/49...

  • Page 45: Troubleshooting

    4.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 45/49...
  • Page 46 Commission Regulation (EC) No. 1488/94 as well as Council Directive 76/769/EEC and Commission Directives 91/155/EEC, 93/67/EEC, 93/105/EC and 2000/21/EC Directive 2012/19/EC of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 46/49...

  • Page 47: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 47/49...

  • Page 48: Electric Waste And Used Battery Pack Handling

    Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 48/49...
  • Page 49 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v2.10 2N TELEKOMUNIKACE a.s., www.2n.cz 49/49...
