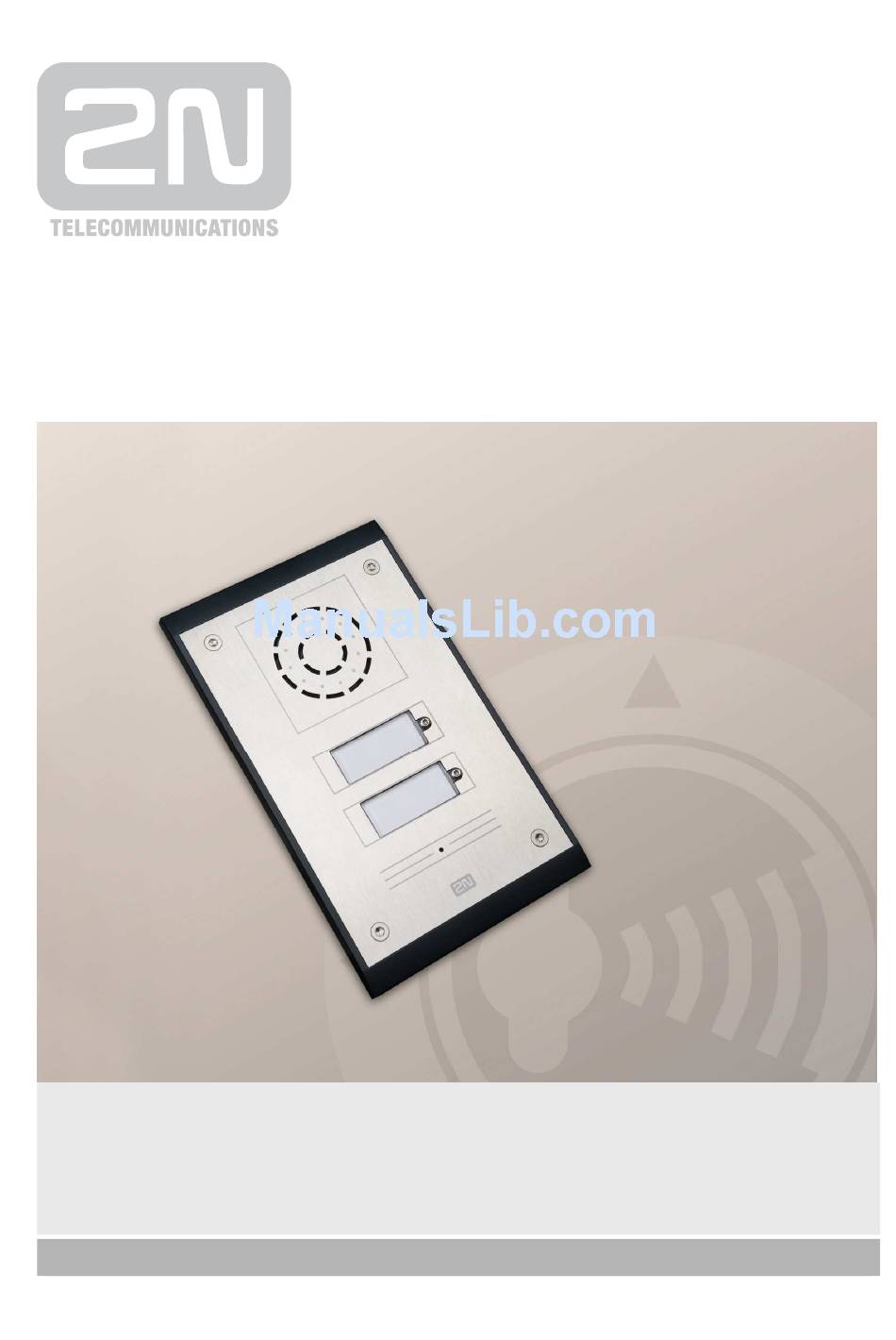

- Page 1 ® Helios IP Uni Door Access Intercom Installation Manual www.2n.cz Version: 1.0.0...
- Page 2 1999/5/EC directive. For the full wording of the Declaration of Conformity see the CD-ROM enclosed and at www.2n.cz. 2N TELEKOMUNIKACE company is the owner of the ISO 9001:2008 certificate. All...
-
Page 3: Table Of Contents
Basic Features........................6 Advantages of Use ......................7 Upgrade ........................... 8 ® Helios IP Uni Components and Associated Products ......... 9 Basic Units ........................9 Mounting Accessories ....................10 GSM / UMTS Connection Accessories ................10 VoIP Connection Accessories ..................11 Electric Locks ......................... - Page 4 4. Technical Parameters ............27 Technical Parameters ....................29 5. Supplementary Information ..........30 Directives, Laws and Regulations ................31 Troubleshooting ......................32 General Instructions and Cautions ................33 Electric Waste and Used Battery Pack Handling ............34...
-
Page 5: Product Overview
Product Overview ® In this section, we introduce the 2N Helios IP Uni product, outline its application options and highlight the advantages following from its use. Here is what you can find in this section: Product Description Upgrade ® Helios IP Uni Components and Associated Products... -
Page 6: Product Description
® Helios IP Uni is very easy to install. All you have to do is connect the system into your LAN via a network cable and feed it from a 12V power supply or your PoE supporting LAN. -
Page 7: Advantages Of Use
Product Description Advantages of Use Variable mounting options (brick/plasterboard flush mounting, wall mounting) Sensitive microphone and powerful loudspeaker Bidirectional communication – acoustic echo cancelling Optional dial buttons including name tags and backlight Integrated electronic lock switches with wide setting options LAN (PoE) or external 12V power supply Configuration via web interface or dedicated PC application SIP 2.0 support... -
Page 8: Upgrade
Upgrade 1.2 Upgrade The manufacturer reserves the right to modify the product in order to improve its qualities. Version Changes... -
Page 9: Helios Ip Uni Components And Associated Products
Basic Units 9153101 9153102 ® Helios IP Uni is designed for outdoor applications and requires no additional roof. ® All 2N Helios IP Uni units can be flush mounted without requiring any additional accessories. Use the appropriate mounting box (see below) for wall (surface) mounting. -
Page 10: Mounting Accessories
2N® Helios IP Uni Components and Associated Products Mounting Accessories 9153003 Brick flush mounting box Wall mounting box (included in the delivery) (Al casting) GSM / UMTS Connection Accessories 505004 505214 505612 ® ® ® VoiceBlue Lite VoiceBlue Enterprise UMTS Office Route... -
Page 11: Voip Connection Accessories
2N® Helios IP Uni Components and Associated Products VoIP Connection Accessories 91378100 91378300 91378350 PoE injector Grandstream VoIP telephone Grandstream VoIP video telephone Electric Locks 932070 932080 932090 BEFO 1211 12V / 600 mA BEFO 1221 BEFO 1211MB with momentary pin... -
Page 12: Terms And Symbols
Terms and Symbols 1.4 Terms and Symbols Symbols Safety Warning Always abide by this information to prevent injury of persons! Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful advice. Note Additional information. -
Page 13: Description And Installation
Description and Installation ® In this section we describe the 2N Helios IP Uni product and its installation. Here is what you can find in this section: Before You Start Mechanical Installation Button Tags – Insertion and Replacement Electric Installation... -
Page 14: Before You Start
Before You Start 2.1 Before You Start Product Completeness Check ® Please check the contents of your 2N Helios IP Uni delivery: ® 1 2N Helios IP Uni (selected model) 1 Torx 10 / Torx 20 double-ended wrench ® 1 2N... -
Page 15: Mechanical Installation
Mechanical Installation 2.2 Mechanical Installation Mountiong Type Overview Refer to the table below for a list of mounting types and necessary components. Flush mounting – classic bricks (also hollow bricks, thermally insulated walls, etc.) What you need: A properly cut hole Plaster, mounting glue, mounting foam or mortar as necessary Flush mounting –... -
Page 16: Common Mounting Principles
Select flush mounting where possible to make your product elegant looking, more vandal resistant and more secure. Caution ® Stainless steel screws are used for the 2N Helios IP Uni assembly. Other screws than stainless steel ones corrode soon and may aesthetically deteriorate the surrounding environment! Having removed the front panel, make sure that no dirt gets inside the product (especially onto the sealing surface). -
Page 17: Flush Mounting - Classic Bricks
Mechanical Installation Flush Mounting – Classic Bricks 1. Cut a wall hole using the template enclosed. Make sure that all the required cables are available in the hole. 2. Unpack the plastic mounting box. Break out the cable holes as necessary and make sure that the wall hole is big enough for the box. -
Page 18: Flush Mounting - Plasterboard
Mechanical Installation Flush Mounting – Plasterboard If this is your first plasterboard installation, check the function of the intercom side clamps. Loosen and then re-tighten the clamp screw to see how it turns automatically and starts moving forwards in its slot. Remember to return the clamp into the original position after the check! Caution... -
Page 19: Electric Installation
Electric Installation 2.3 Electric Installation ® This subsection describes how to connect 2N Helios IP Uni into your Local Area Network (LAN) and how to connect supply voltage and the electric lock. PCB Connectors Description of Connectors LAN connector OUT1... -
Page 20: Electric Lock Connection
MDIX function and so both the straight and crossed cable versions can be used External Power Supply Connection ® Helios IP Uni can be fed either from an external 12V/1A DC power supply or from the LAN equipped with the PoE 802.3af supporting network elements. External Power Supply An external 12V power supply is connected to terminal block X19. -
Page 21: Button Tags - Insertion And Replacement
Tag Inserting / Replacing ® Helios IP Uni provides an intuitive, easy access to the name plates. The tags are easy to insert and replace even without a manual. -
Page 23: Function And Use
Function and ® In this section we describe the basic and extending functions of the 2N Helios IP Uni product. Here is what you can find in this section: ® Helios IP Uni Configuration ® Helios IP Uni Maintenance... -
Page 24: Helios Ip Uni Configuration
Static/Dynamic Address Setting Mode Switching ® In case your 2N Helios IP Uni device is equipped with 1 or 2 buttons, you can switch the modes using one button only. ® Connect 2N Helios IP Uni to the power supply (or, disconnect and reconnect it if already connected). -
Page 25: Helios Ip Uni Control
Helios IP Uni Control ® This subsection describes how to control 2N Helios IP Uni when viewed by an external user. Speed Dial Buttons Press the speed dial buttons on the basic unit to make quick dialling for the first 1 or 2 (depending on the model type) in the telephone directory. -
Page 26: Maintenance
Maintenance 3.3 Maintenance Cleaning If used frequently, 2N® Helios IP Uni gets dirty. To clean it, use a piece of soft cloth moistened with clean water. We recommend you to obey the following principles while cleaning: Never use aggressive detergents (such as abrasives or strong disinfectants). -
Page 27: Technical Parameters
Technical Parameters ® In this section we describe the technical parameters of the 2N Helios IP Uni product. -
Page 29: Technical Parameters
4.1 Technical Parameters Signalling protocol SIP (UDP) Buttons Transparent, white backlit buttons with easily Button design replaceable name tags Button count 1 or 2 Audio Microphone 1 integrated microphone Amplifier 1W (class D) Loudspeaker Volume control Adjustable with automatic adaptive mode Full duplex Yes (AEC) Audio stream... -
Page 30: Supplementary Information
Supplementary Information ® This section provides supplementary information on the 2N Helios IP Uni product. Here is what you can find in this section: Applicable Directives, Laws and Regulations... -
Page 31: Directives, Laws And Regulations
Directives, Laws and Regulations 5.1 Directives, Laws and Regulations ® Helios IP Uni conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 – on radio equipment and telecommunications terminal... -
Page 32: Troubleshooting
Troubleshooting 5.2 Troubleshooting For tips concerning solutions of other potential problems see faq.2n.cz. -
Page 33: General Instructions And Cautions
General Instructions and Cautions 5.3 General Instructions and Cautions Please read this User Manual carefully before using the product. Follow all instructions and recommendations included herein. Any use of the product that is in contradiction with the instructions provided herein may result in malfunction, damage or destruction of the product. -
Page 34: Electric Waste And Used Battery Pack Handling
General Instructions and Cautions Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental-friendly disposal. - Page 35 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz DR1812v1.0...
