- Page 1 ® Helios IP Safety Door Access Intercom Installation Manual www.2n.cz Version 1.2.1...
- Page 2 The product family developed by 2N TELEKOMUNIKACE a.s. includes intercoms, GSM and UMTS products, private branch exchanges (PBXs) and M2M solution. 2N TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years and represents a symbol of prosperity in the field of IP intercoms. Furthermore, the company dedicates significant attention to operator solutions as well as to effectively providing support for our distribution network and customer service.
-
Page 3: Table Of Contents
Product Description ....................... 2 Basic Features........................2 Advantages of Use ......................3 Upgrade ........................... 4 ® Helios IP Safety Components and Associated Products........5 Basic Units ........................5 Mounting Accessories ...................... 6 VoIP Telephones ......................7 Electric Locks ........................7 Power Supply ........................ - Page 4 4. Technical Parameters ............29 Technical Parameters ....................30 5. Supplementary Information ..........33 Directives, Laws and Regulations ................34 Troubleshooting ......................35 General Instructions and Cautions ................36 Electric Waste and Used Battery Pack Handling ............37...
-
Page 5: Product Overview
Product Overview ® In this section, we introduce the 2N Helios IP Safety product, outline its application options and highlight the advantages following from its use. Here is what you can find in this section: Product Description Upgrade ... - Page 6 Product Description VoIP Telephones 91378350 91378351 Grandstream GXV3140 Grandstream GXV3175 VoIP video telephone VoIP telephone Electric Locks 932070E 932080E 932090E BEFO 1211 12V / 600 mA BEFO 1221 BEFO 1211MB with momentum pin with mechanical blocking Power Supply 91378100E 91341481E 932928E 91378100US Adapter 12 V/2 A...
-
Page 7: Additional Modules
Product Description Additional Modules 9151010 9159010 9137410E Additional switch with Security Relay External IP relay normally open/closed contact and 12V switched output. Terms and Symbols ... -
Page 8: Product Description
® Helios IP Safety is very easy to install. All you have to do is connect the system into your LAN via a network cable and feed it from a 12V power supply or your PoE supporting LAN. -
Page 9: Advantages Of Use
Product Description Advantages of Use Uncompromising AntiVandal design High covering level – up to class IP69K Variable mounting options (brick/plasterboard flush mounting, surface mounting) Sensitive microphone and powerful loudspeaker Bidirectional communication – acoustic echo cancelling Integrated colour camera with wide-angle lens (on request) ... -
Page 10: Upgrade
Upgrade 1.2 Upgrade The manufacturer reserves the right to modify the product in order to improve its qualities. Version Changes... -
Page 11: Helios Ip Safety Components And Associated Products

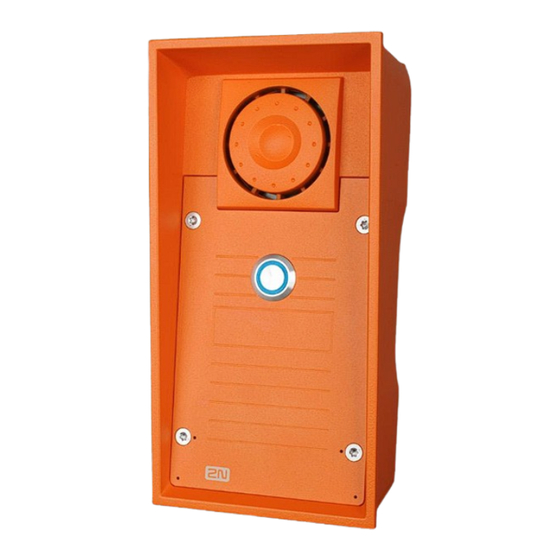

9152101W 1 button, 10W loudspeaker, IP69K ® Helios IP Safety is designed for outdoor applications and requires no additional roof. W- including Part Nos. are intended for WAP pressure cleaning and extremely noisy environments (such as highways, etc.). ® Helios IP Safety units can wall mounted without requiring any additional accessories. -
Page 12: Mounting Accessories
2N® Helios IP Safety Components and Associated Products Mounting Accessories 9152000 9151001 9151002 Mounting frame Brick flush mounting box Plasterboard flush mounting orange Stainless steel Aluminum... -
Page 13: Voip Telephones
2N® Helios IP Safety Components and Associated Products VoIP Telephones 91378350 91378351 Grandstream GXV3140 Grandstream GXV3175 VoIP video telephone VoIP telephone Electric Locks 932070E 932080E 932090E BEFO 1211 12V / 600 mA BEFO 1221 BEFO 1211MB with momentum pin with mechanical blocking... -
Page 14: Additional Modules
2N® Helios IP Safety Components and Associated Products Additional Modules 9151010 9159010 9137410E Additional switch with Security Relay External IP relay normally open/closed contact and 12V switched output. -
Page 15: Terms And Symbols
Terms and Symbols 1.4 Terms and Symbols Symbols Safety Warning Always abide by this information to prevent injury of persons! Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. ... -
Page 17: Description And Installation
Description and Installation ® In this section we describe the 2N Helios IP Safety product and its installation. Here is what you can find in this section: Before You Start Mechanical Installation Electric Installation ... -
Page 18: Before You Start
4 screws 5x80 mm 4 “intelligent” 8x50 mm dowels Notes Mounting frame is not included – it is sold separately as order no. 9152000. ® Bushing set is the same as for 2N Helios IP Force, but bushings are already mounted. -
Page 19: Mechanical Installation
Refer to the table below for a list of mounting types and necessary components. ® Helios IP Safety is preferably intended for surface mounting. For recessed mounting, it is necessary to order mounting frame or other accessories. Surface mounting (concrete and steel structures, entry barrier columns, etc.) - Page 20 Mechanical Installation Recessed mounting – hollow bricks What You Need: Frame 9152000 Brick flush mounting box, Part No. 9151001 Hole: 132 x 223 x 83mm Flush mounting – plasterboard wall What You Need: Frame 9152000 Plasterboard flush mounting box, Part No. 9151002 Hole: 118 x 235mm Caution...
-
Page 21: Common Mounting Principles
Remember that dowels of poor quality may easily get loose and fall out of the wall! ® Stainless steel screws are used for the 2N Helios IP Safety assembly. Other screws than stainless steel ones corrode soon and may aesthetically... -
Page 22: Surface Mounting
The manufacturer shall not be liable for injuries incurred as a result of unsafe mounting! 1. Select the 2N® Helios IP Safety position with respect to the supply cables. Where the cables are installed inside a structure or wall, use the hole at the intercom bottom. -
Page 23: Flush Mounting - Classic Bricks
Mechanical Installation Flush Mounting – Classic Bricks If you use the brick flush mounting box, follow the instructions included in the box. If you do not use the mounting box, follow the instructions below: 1. Make a hole using the template. Suppose that all the required cables have been carried into the hole. -
Page 24: Flush Mounting - Thermally Insulated Wall
Mechanical Installation Flush Mounting – Thermally Insulated Wall Cut out the thermal insulation layer using the template (the same as for classic brick wall). Caution The hole depth depends on the insulation layer thickness. If the insulation layer is rather thick, you may need longer screws! If there are hollow bricks under the insulation, make sure that your screws pass through the whole dowel (50 mm) and fix the dowel reliably. -
Page 25: Flush Mounting - Hollow Bricks
® Suppose you intend to install your 2N Helios IP Safety unit into a wall made of hollow bricks. Note that the external side of the bricks gets damaged by cutting and the dowels cannot practically be fixed into the thin internal part of the bricks. Therefore, use the brick flush mounting box and follow the instructions included therein. -
Page 26: Use Of Cable Bushings
Use of Cable Bushings ® The cable bushings included in the 2N Helios IP Safety delivery are designed for the following cables: Big bushing: for two cables of the diameter of 5–6 mm (UTP cable), or, upon insert replacement, for one thick cable/tube of the diameter of up to 14 mm. -
Page 27: Electric Installation
Network (LAN) and how to connect supply voltage and the electric lock. PCB Connectors ® Fig. 2.11 shows the lay-out of connectors on the 2N Helios IP Safety printed circuit board (PCB). Cables, accessories and other system components are connected to connectors X1 through X22. - Page 28 MDIX function and so both the straight and crossed cable versions can be used. External Power Supply Connection ® Helios IP Safety can be fed either from an external 12V/1A DC power supply or from the LAN equipped with the PoE 802.3af supporting network elements. External Power Supply An external 12V power supply is connected to terminal block X19.
-
Page 29: Electric Lock Connection
Electric Lock Connection ® Helios IP Safety is equipped with an electrically isolated relay switch with NO and NC contacts (terminal block X17) and 12V/700mA switched output (terminal block X18), to which a standard electric lock or another compatible electrical appliance can be connected. -
Page 30: Mounting Completion
An incorrect mounting may compromise the intercom watertightness. Water leakage may damage the electronic part of the system. ® Stainless steel screws are used for the 2N Helios IP Safety assembly. Other screws than stainless steel ones corrode soon and may aesthetically... -
Page 31: Function And Use
Function and ® In this section we describe the basic and extending functions of the 2N Helios IP Safety product. Here is what you can find in this section: Configuration Maintenance ... -
Page 32: Helios Ip Safety Configuration
You have to know the IP address of your device to log in to the integrated web server. ® By default, 2N Helios IP Safety is switched into the dynamic IP address mode, i.e. it obtains the IP address automatically if a properly set DHCP server is available in your ®... -
Page 33: Maintenance
Cleaning ® If used frequently, 2N Helios IP Safety gets dirty. To clean it, use a piece of soft cloth moistened with clean water. We recommend you to obey the following principles while cleaning: Never use aggressive detergents (such as abrasives or strong disinfectants). -
Page 35: Technical Parameters
Technical Parameters ® In this section we describe the technical parameters of the 2N Helios IP Safety product. -
Page 36: Technical Parameters
Technical Parameters 4.1 Technical Parameters Signalling protocol Buttons Industrial waterproof, stainless steel, vandal resistant Button design pushbutton, blue backlit Count of buttons 1 (2 on request) Numerical keypad (on request) Audio Microphone 2 integrated microphones Amplifier 10W (class D) Loudspeaker 1W (optionally 10W) Volume control Adjustable with automatic adaptive mode... -
Page 37: Industry Canada
Technical Parameters Declaration of Conformity 2N TELEKOMUNIKACE a.s. hereby declares that this product complies with all basic requirements and other relevant provisions of the 1999/5/EC directive. For the full wording of the Declaration of Conformity see www.2n.cz. Industry Canada This Class B digital apparatus complies with Canadian ICES-003. -
Page 39: Supplementary Information
Supplementary Information ® This section provides supplementary information on the 2N Helios IP Safety product. Here is what you can find in this section: Applicable Directives, Laws and Regulations ... -
Page 40: Directives, Laws And Regulations
Directives, Laws and Regulations 5.1 Directives, Laws and Regulations ® Helios IP Safety conforms to the following directives and regulations: Directive 1999/5/EC of the European Parliament and of the Council, of 9 March 1999 – on radio equipment and telecommunications terminal... -
Page 41: Troubleshooting
Troubleshooting 5.2 Troubleshooting For tips concerning solutions of other potential problems see faq.2n.cz. -
Page 42: General Instructions And Cautions
General Instructions and Cautions 5.3 General Instructions and Cautions Please read this User Manual carefully before using the product. Follow all instructions and recommendations included herein. Any use of the product that is in contradiction with the instructions provided herein may result in malfunction, damage or destruction of the product. -
Page 43: Electric Waste And Used Battery Pack Handling
General Instructions and Cautions Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! Deliver your expired electric appliances and battery packs removed from them to dedicated dumpsites or containers or give them back to the dealer or manufacturer for environmental-friendly disposal. - Page 44 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Tel.: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz 1788...
