Adding Static Ports {Static Port-Mapping Add}

Static Port-Mapping allows the network administrator to setup a port mapping
scheme that forwards packets received on a specific port to a particular static IP
(typically private and mis-configured) and port number on the subscriber side of the
HSG. The advantage for the network administrator is that free private IP addresses
can be used to manage devices (such as Access Points) on the subscriber side of the
HSG without setting them up with public IP addresses.
This procedure shows you how to add static ports.
From the Web Management Interface, click on
1.
Mapping Add.

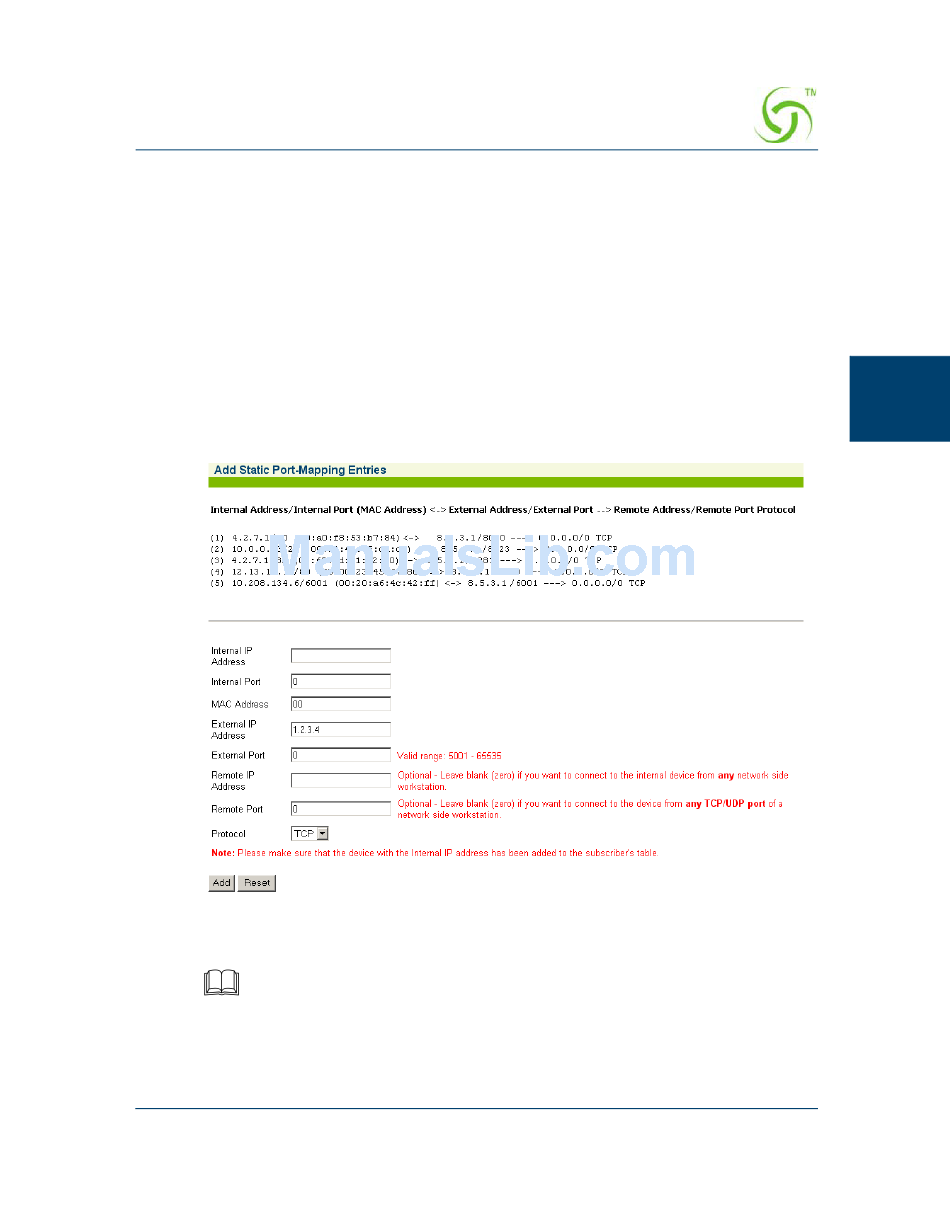

The Add Static Port-Mapping Entries screen appears:
Enter the
2. Internal IP Address
Ensure that the device with the Internal IP Address has been added to
the subscriber's table.
System Administration
System
.
, then
Static Port-
