Summary of Contents for Nomadix NWCG

  • Page 2: Copyright Notice

    IRELESS ONNECT ATEWAY Copyright Notice Copyright © 2005-2015 Handlink Technologies Inc. All rights reserved. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission. Protected by TW patent 223184, JPN patent 3099924 and China patent ZL 03 2 04640.5.

  • Page 3: Table Of Contents

    CCESS ATEWAY Table of Contents Copyright Notice........................ii Disclaimer ..........................ii Trademarks ..........................ii Chapter 1: Introduction ....................3 Package Contents ........................3 Features ............................. 4 Precautions ..........................4 Outlook............................5 Top Panel ........................... 5 Rear Panel ......................... 6 Technical Specifications ......................7 Hardware Specifications....................
  • Page 4 Ping Command ....................... 198 Restart ..........................198 Logout..........................199 Chapter 4: Appendices ....................201 Appendix A Signal Connection Arrangements ..............201 RJ-45 Ethernet Port ....................... 201 Appendix B Regulations/EMI Compliance................201 FCC Regulatory Statement..................... 201 Nomadix Wireless Connect Gateway..................202...

  • Page 5: Chapter 1: Introduction

    It’s completely Plug and Play with any browser. Package Contents Please inspect your package. The following items should be included: ◎ Nomadix Wireless Connect Gateway Three antennas  One AC Power Adapter for Wireless Connect Gateway ...

  • Page 6: Features

    CCESS ATEWAY If any of the above items are damaged or missing, please contact your dealer immediately. Features Wireless data rates up to 300 Mbps  Supports 200 Simultaneous wired and wireless users  IP Plug and Play (PnP)  Comprehensive security ...

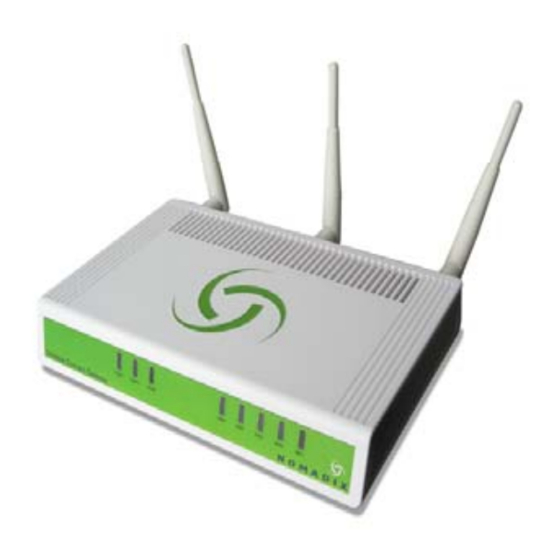

  • Page 7: Outlook

    CCESS ATEWAY Outlook Figure 1 Nomadix Wireless Connect Gateway Top Panel The top panel of the Wireless Connect Gateway is shown below.  Figure 2 Wireless Connect Gateway Top Panel Introduction...

  • Page 8: Rear Panel

    CCESS ATEWAY LEDs Indication State Description Power The Wireless Connect Gateway is not receiving electrical power. Green The Wireless Connect Gateway is receiving electrical power. System The Wireless Connect Gateway status is defective. Green The Wireless Connect Gateway status is complete. Green During firmware upgrades, this system LED will blink.

  • Page 9: Technical Specifications

    CCESS ATEWAY Figure 3 Wireless Connect Gateway Rear Panel ETH (1-4): The rear panel supports four auto-sensing RJ-45 ports and all ports can be auto-switched to MDI-II connections. The LAN ports are used for linking hosts or other network devices. WAN: One Ethernet port used for linking to an ISP connection.
  • Page 10 CCESS ATEWAY Encryption WPA (Wi-Fi Protected Access)  WPA2 (Wi-Fi Protected Access)  External Antenna Type 2dBi (Max) Dual detachable diversity antenna with reverse SMA  LED Indicators One POWER LED  One WAN 10/100M Link/Activity LED  Four LAN 10M/100M Link/Activity LEDs ...

  • Page 11: Software Specifications

    CCESS ATEWAY Mounting Desktop, Wall Mounted  Software Specifications Networking IEEE802.3 10BaseT Ethernet  IEEE802.3u 100BaseTX Fast Ethernet  IEEE802.11b Wireless LAN  IEEE802.11g Wireless LAN  IEEE802.11n Wireless LAN  Supports 200 Simultaneous Users  IP Plug and Play (iPnP) ...
  • Page 12 CCESS ATEWAY WISPr Smart Client  User Accounting and Authentication Built-in Authentication  Web-based Authentication  RADIUS AAA Support (RFC 2865, 2866)  User Authentication and Accounting  Logout Window Timer Control  Security and Firewall Layer 2 Isolation Security ...
  • Page 13 SSL certificate upload  Extra Function with optional VP 20 Thermal Printer Local Authentication  Local Accounting  Local Billing  Nomadix VP 20 Thermal Printer Interface: Ethernet  Print Width: 48mm (Paper width: 58mm)  Paper Length: 50 M  Introduction...
  • Page 14 CCESS ATEWAY Introduction...

  • Page 15: Chapter 2: Installation

    CCESS ATEWAY Installation The followings are instructions for setting up the Wireless Connect Gateway. Refer to the illustration and follow the simple steps below to quickly install your Wireless Connect Gateway. Wall-Mounting The Wireless Connect Gateway can be mounted on a wall by applying the two mounting brackets on screws.

  • Page 16: Connecting The Antennas

    CCESS ATEWAY Hang Wireless Connect Gateway on the wall by sliding the two screws in the mounting brackets. Note: If the screws are not properly anchored, the strain of the cables connected to the Wireless Connect Gateway rear panel connectors could pull out the Wireless Connect Gateway from the wall.
  • Page 17 CCESS ATEWAY UTP network Cable with a RJ-45 connection (Package contents)  Note: Prepare twisted-pair cables with RJ-45 plugs. Use Cat.5 cable for all connections. Make sure each cable does not exceed 328 feet (Approximately 100 meters). ISP Requirements Verify whether your ISP uses fixed or dynamic IP. If it is a fixed IP, be sure to get the ...

  • Page 18: Getting Started

    CCESS ATEWAY Your PC’s default gateway IP address  Your PC’s primary DNS IP address  Note: The gateway’s default IP address setting is “10.59.1.1”. The gateway’s default subnet mask setting is “255.0.0.0”. The Dynamic IP settings for the PC We recommend that you leave your IP settings as automatically assigned.
  • Page 19 CCESS ATEWAY Figure 7 Wireless Connect Gateway Connection Installation...
  • Page 20 CCESS ATEWAY Installation...

  • Page 21: Chapter 3: Configuring The Wireless Connect Gateway

    CCESS ATEWAY Configuring the Wireless Connect Gateway Setting Wizard Step 1: Start your browser, and then enter the factory default IP address 10.59.1.1 in your browser’s location box. Press Enter. Figure 8 Web Browser Location Field (Factory Default) Step 2: The Wireless Connect Gateway configuration tools menu will appear.
  • Page 22 CCESS ATEWAY Enter the Activate License key, total 32 characters. Figure 10 Configuration Tools Menu Figure 11 Activate Successful Screen Figure 12 Activate Failed Screen Configuring the Wireless Connect Gateway...
  • Page 23 CCESS ATEWAY Figure 13 Wizard Setup Screen Configuring the Wireless Connect Gateway...
  • Page 24 CCESS ATEWAY Figure 14 System Quick View Notes: This Web agent is best viewed with IE 5.0 or Netscape 6.0 and above browsers.  If you would like to change the password please see Step 10.  Username and Password can consist of up to 20 alphanumeric characters and are case ...
  • Page 25 CCESS ATEWAY Proxy needs to set disable first when administrator accesses admin UI.  Step 3: Internet Connection Setting Select the appropriate Internet connection type to connect to your ISP. Figure 15 Internet Connection Setting Screen DHCP Client The device can work as a DHCP client. This allows the device to obtain the IP address and other TCP/IP settings from your ISP.
  • Page 26 CCESS ATEWAY Figure 16 Internet Connection Setting Screen—DHCP Client Setting Static IP Setting If Static IP Setting is selected, then this screen will appear. Enter the IP address  information provided by your ISP. Configuring the Wireless Connect Gateway...
  • Page 27 CCESS ATEWAY Figure 17 Internet Connection Setting Screen—Static IP Setting Item Default Description IP Address 0.0.0.0 Enter the IP address provided by your ISP. Subnet 0.0.0.0 Enter the subnet mask for the IP address. Mask Gateway IP 0.0.0.0 Enter the Gateway IP Address provided by your ISP. Address Primary Empty...
  • Page 28 CCESS ATEWAY PPPoE (Point-to-Point Protocol over Ethernet) If “ PPPoE ” is selected, then this screen will appear. Enter the username, password  and other major fields. Figure 18 Internet Connection Setting Screen—PPPoE Setting Item Default Description Username Empty Enter the user name provided by your ISP. The user name can consist of up to 80 alphanumeric characters and is case sensitive.
  • Page 29 CCESS ATEWAY Item Default Description PPP MTU 1492 MTU (Maximum Transfer Unit) specifies maximum Setting transmission unit size. TCP MSS 1452 MSS (Maximum Segment Size) specifies maximum segment Setting size. Service Name Empty Enter the service name provided by your ISP. The service name can consist of up to 64 alphanumeric characters and is case sensitive.
  • Page 30 CCESS ATEWAY Figure 19 Internet Connection Setting Screen—PPTP Client Setting Configuring the Wireless Connect Gateway...
  • Page 31 CCESS ATEWAY Item Default Description My IP Address Empty Enter the PPTP local IP address provided by your ISP. My Subnet Mask Empty Enter the PPTP local Subnet Mask address for the IP address (My IP Address). Item Default Description Gateway IP Empty Enter the PPTP server Gateway IP address...
  • Page 32 CCESS ATEWAY Item Default Description Connect on Enable You can configure your Wireless Connect Gateway Demand to disconnect from your ISP after a specified period of time (Max Idle Time). If you have been Max Idle Time disconnected due to inactivity, Connect on Demand Minutes enables your Wireless Connect Gateway to automatically re-establish your connection as soon...
  • Page 33 CCESS ATEWAY Item Default Description Wireless Enable Enable or Disable Wireless connection Connection Channel Enter the channel ID for wireless connection. Note: Channel 12~13 are not allowed to use in North America area. 802.11 Mode 802.11n+802.11 Select the 802.11 mode of following:： g+802.11b802.11n -802.11n+802.11g+802.11b +802.11g+802.11b...
  • Page 34 CCESS ATEWAY Item Default Description Email Server Disables or enables email server redirect function. Redirect Some subscribers Email server may be protect by firewall or NAT network. Wireless Connect Gateway provides an extra Email server parameter to forward the subscribers Email. The Wireless Connect Gateway not only forwards the subscribers E-mail via configured server but also changes the SMTP header.
  • Page 35 CCESS ATEWAY Item Default Description Built-in Yes― Authentication/ No No Authentication) Wireless Connect Gateway provides Built- Authentication in Authentication for service provider to build up an Internet service without any extra authentication software. If Yes is selected, service provider can generate the subscriber account inside the Wireless Connect Gateway, and the system will authenticate the subscriber login...
  • Page 36 CCESS ATEWAY Figure 23 Billing Profile Setting Screen Item Default Description Service Time to Options: Time to Finish or Accumulation. Finish Time to Finish― The Subscriber can access Internet only one time with one account. Once the subscriber logs in, the pre-defined usage time will start until it runs out even the subscriber stops access the Internet before time runs out.
  • Page 37 999999. Step 8: Account Generator Printer Setting There are two different choices, one is exclusive printer (Nomadix VP 20 Printer), and the other is non-exclusive printer. Exclusive printer is a portable thermal printer that is integrated with Wireless Connect Gateway to press one button to generate accounts and receipt immediately without PC operating.
  • Page 38 CCESS ATEWAY Figure 24 Printer Setting Screen Button A Button B Button C Figure 25 Nomadix VP 20 Printer Configuring the Wireless Connect Gateway...
  • Page 39 CCESS ATEWAY Step 9: Accounting Setting Three-buttons Printer Setting Figure 26 Accounting Setting Screen (Three Button Printer) Figure 27 Billing Profile Setting Screen Configuring the Wireless Connect Gateway...
  • Page 40 CCESS ATEWAY Item Default Description Button A~ C Define each button’s billing profile. Select one billing profile by clicking it in the list box. Printed Copies Number of copies to print This value is number of copies. This function allows you to produce custom bill based on your requirements.
  • Page 41 CCESS ATEWAY Item Description Default Billing Profile (Button Define each button’s billing profile. Select one billing profile by A~C) clicking in the list box. Printout Number of copies to Select the number of copies by clicking in the list print box.
  • Page 42 CCESS ATEWAY Click on button to create a new account.  Click “View Account List” to display current account information.  Figure 30 Account List Click on refresh button to update the account list page The field name button in this list show that this list can be sorted in ascending/descending order according to the corresponding field name.
  • Page 43 CCESS ATEWAY Figure 31 Customize Printout Text Setting Screen Click the button to displays the account on the screen as it would appear when printed. Configuring the Wireless Connect Gateway...
  • Page 44 CCESS ATEWAY Figure 32 Example- PC-connected printer Printout (Time to Finish) Configuring the Wireless Connect Gateway...
  • Page 45 CCESS ATEWAY Figure 33 Example- PC-connected printer Printout (Accumulation) Configuring the Wireless Connect Gateway...
  • Page 46 CCESS ATEWAY Figure 34 Example- Account Generator Printer Printout (Time to Finish) Figure 35 Example- Account Generator Printer Printout (Accumulation) Configuring the Wireless Connect Gateway...
  • Page 47 CCESS ATEWAY Step 10: System Setting Figure 36 System Setting Screen Configuring the Wireless Connect Gateway...

  • Page 48: Advanced Setup

    CCESS ATEWAY Item Default Description Username admin Enter the user name. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Password admin Enter the user password. The password can consist of up to 80 alphanumeric characters and is case sensitive.
  • Page 49 CCESS ATEWAY AUTHENTICATION  AUTHENTICATION  RADIUS  BILLING  BILLING  ACCOUNTING  CREADIT CARD  MANAGEMENT  LAN DEVICES  SYSLOG  SESSION TRACE  BANDWIDTH  SNMP  SECURITY  PASS THROUGHT  FILTERING  SHARE  SECURE REMOTE ...

  • Page 50: Authentication

    CCESS ATEWAY ACCOUNT GENERATOR  Note: After changing the settings of device, please click apply button to save the new settings. AUTHENTICATION Authentication Figure 38 Authentication Setting Screen Configuring the Wireless Connect Gateway...
  • Page 51 CCESS ATEWAY Item Default Description Authentication Option: No Authentication, Built-in Authentication or User Type Authentication Agreement. No Authentication― Subscriber can have direct access to the Internet without entering username and password. Built-in Authentication― Wireless Connect Gateway provides “Built-in Authentication” for service provider to build an Internet service without any extra authentication software.
  • Page 52 Enables or disables SSL security of login page. User Idle Time 5 Minutes The user idle time out valid range is 1-1440. Click Apply button to save the new settings. Needs to be a Nomadix green Configuring the Wireless Connect Gateway...

  • Page 53: Radius

    CCESS ATEWAY RADIUS Figure 40 RADIUS Setting Screen Configuring the Wireless Connect Gateway...
  • Page 54 CCESS ATEWAY Item Default Description RADIUS Disable Option: No Authentication or RADIUS Server. Authentication Disable (No Authentication) ― Subscriber can have direct access the Internet without enter username and password. Enable (RADIUS Authentication) ― Wireless Connect Gateway provides “RADIUS Authentication” for service provider to build up an Internet service with RADIUS server.
  • Page 55 CCESS ATEWAY Item Default Description Share Secret Key Empty The share secret key, the key number also has to match with the secondary RADIUS Server setting. Up to 64 characters are allowed. Retry times when Specify the retry times when primary fail. Primary fail Retry Frequency ~ The field default value is 3 seconds.
  • Page 56 CCESS ATEWAY Item Default Description Access Code Disable Enable or Disable support Access Code Function. Empty The access code can consist of up to 30 alphanumeric characters and is case sensitive. Valid Date/Time Never Expire The option let service provider specify an expiry time or never expire for Internet Service...
  • Page 57 CCESS ATEWAY Standard Figure 41 Access Code Standard Login Page Customization Setting Screen For some service providers, they may hope to have a customized subscribers’ login page for the users. This function helps them to realize the ideal page presentation. The page elements include login page title, background color, subtitle etc.
  • Page 58 CCESS ATEWAY Item Default Description Copyright Enable The copyright is allowed the administrator to input a paragraph in the subscriber’s login page for copyright information. The maximum characters of the copyright are 80. Background FFFFFF The background text color can be specified color. For the Color specified text color format please view the color grid.
  • Page 59 CCESS ATEWAY Figure 44 Redirect Login Page Code Screen Configuring the Wireless Connect Gateway...
  • Page 60 CCESS ATEWAY Figure 45 Advanced Login Page Setting Screen Advanced Item Default Description Welcome Welcome The maximum allowed characters length is 80. Slogan Page None The page can be any specified color for the background Background color format. Please view the color grid. The allowed format is Hexadecimal.
  • Page 61 CCESS ATEWAY Item Default Description Information Empty Allows the administrator to input the text information such as address, telephone number and fax information. The maximum number of characters for the information is 80. Comments Empty Allows the administrator to input the text comments such as “Please contact to our Customer Service Center, EXT 141”.

  • Page 62: Billing

    CCESS ATEWAY www.caesarpark.com Figure 47 Frame Login Page Setting Screen Item Default Description Top Frame URL Empty The input format can be http://www.yahoo.com. The Link maximum characters for the URL Link are 200. Bottom Frame This frame will show the standard login page. BILLING Billing The function is used to setup a billing profile.
  • Page 63 CCESS ATEWAY Figure 48 Billing Setting Screen Item Default Description Enable Credit Card Disable Enables or disables the credit card service. Before Service you enable credit card service, make sure that your credit service is configured to work and the currency is American dollars.
  • Page 64 CCESS ATEWAY Figure 49 Credit Service Setting Screen Figure 50 Error Dialog Box (Credit Card Service=Enable) Configuring the Wireless Connect Gateway...
  • Page 65 CCESS ATEWAY Item Default Description Time to Enable The subscriber can access the Internet only for a single Finish session. After the subscriber logs in, Internet access is available until the session ends or time runs out, whichever comes first. Accumulation Accumulation Disable...
  • Page 66 CCESS ATEWAY Item Default Description Number of decimals Enter the number. The field maximum value is 3. places Tax Percentage Disable This check box is used to indicate the taxable status of the account. Enter the tax rate (i.e. a 5% sales tax is entered as 5).
  • Page 67 CCESS ATEWAY Click Apply button to save the new settings. Figure 53 Success Dialog Box Accounting This function allow service provider to generate the Connect accounts. Configuring the Wireless Connect Gateway...
  • Page 68 CCESS ATEWAY Figure 54 Accounting Setting Screen Configuring the Wireless Connect Gateway...
  • Page 69 CCESS ATEWAY Figure 55 Item Default Description Expiration Delete unused 24 hours Enter the number of hours/minutes/days. The field accounts maximum value is 30 hours/minutes/days. automatically after ~hours automatically Accumulation 3 months Enter the number and select time unit from list box. account will be The field maximum value is 30 month/ days/ hours.
  • Page 70 CCESS ATEWAY Can be replenished by subscriber=Enable Three-Button Printer/ Web-based Account Generator Panel Figure 57 Three-Button Printer/ Web-based Account Generator Panel Setting Screen Configuring the Wireless Connect Gateway...
  • Page 71 CCESS ATEWAY Item Default Description Button A~C Define each button’s billing profile. Select one billing profile by clicking in the list box. Print to… Account Select a printer to print out your account. Generator Printer Use ~ for Button A, Select one button (A~C) by clicking in the list Discount Price Disable...
  • Page 72 CCESS ATEWAY Figure 59 Web-based Account Generator Printout (Time to Finish) Configuring the Wireless Connect Gateway...
  • Page 73 CCESS ATEWAY Figure 60 PC-connected Printer Printout (Time to Finish) Configuring the Wireless Connect Gateway...
  • Page 74 CCESS ATEWAY Figure 61 Web-based Account Generator Printout (Accumulation) Configuring the Wireless Connect Gateway...
  • Page 75 CCESS ATEWAY Figure 62 PC-connected Printer Printout (Accumulation) Note: Before configuring the accounting, you have to setting the billing profile of Web-based account generator panel. Example: If press 7 times Discount Price Plan based on “Button Presses” is disabled. Configuring the Wireless Connect Gateway...
  • Page 76 CCESS ATEWAY Figure 63 Example 1 Figure 64 Account Printout Amount: 7 x $2.00= $14.00 Discount Price Plan based on “Button Presses” is enabled. The Charge by level is disabled. Configuring the Wireless Connect Gateway...
  • Page 77 CCESS ATEWAY Figure 65 Example 2 Amount: 7 x $ 1 = $ 7.00 Below is an example of the account printout. Configuring the Wireless Connect Gateway...
  • Page 78 CCESS ATEWAY Figure 66 Account Printout Discount Price Plan based on “Button Presses” is enabled. Charge by level is enabled. Configuring the Wireless Connect Gateway...
  • Page 79 CCESS ATEWAY Figure 67 Example 3 Amount: 2 x $2.00 + 4 x$ 1.50+1x$1= $11.00 Below is an example of the account printout. Configuring the Wireless Connect Gateway...
  • Page 80 CCESS ATEWAY Figure 68 Account Printout Discount Price Plan based on “Button Presses” Configuring the Wireless Connect Gateway...
  • Page 81 CCESS ATEWAY Figure 69 Discount Price Plan Setting Screen Item Default Description Charge by Enable Enables or disables the charge by levels function. levels Level 1~10 This field displays the level number of charge rate. Conditions When> The discount condition. Button Enter the times of pressing button.
  • Page 82 CCESS ATEWAY Figure 70 Success Dialog Box Credit Card Wireless Connect Gateway provides three credit card services (Authorize.net, iValidate.net, Secure Pay and Paypal) that allow service provider to authorize, process, and manage credit transactions directly from Internet. Configuring the Wireless Connect Gateway...
  • Page 83 CCESS ATEWAY Figure 71 Credit Card Setting Screen Item Default Description Authorize.net Version This field displays the merchant version. Configuring the Wireless Connect Gateway...
  • Page 84 CCESS ATEWAY Item Default Description Merchant ID Empty Enter your Merchant ID. This is a Merchant Identification Number that you have received from your Merchant Provider. The maximum characters of the Merchant ID is 50. Merchant Password This is a Merchant password that you have received from your Merchant Provider.
  • Page 85 CCESS ATEWAY Item Default Description Merchant ID Empty Enter your Merchant ID. This is a Merchant Identification Number that you have received from your Merchant Provider. The maximum characters of the Merchant ID are 20. Device ID Empty Enter your Device ID. This is a Device Identification Number that you have received from your Merchant Provider.
  • Page 86 CCESS ATEWAY Item Default Description Identity Token Empty Enter the Identities token from merchants profile in the PayPal site. The maximum characters of the Identity token is 160. Payment Gateway https:// Enter the address of Payment Gateway. www.paypal/cgi- The maximum characters of the payment gateway bin/webscr are 100.
  • Page 87 CCESS ATEWAY Click the Apply button, the success dialog box appears. Click on Back to return to Accounting setting screen. Figure 72 Success Dialog Box Please follow steps below to pay using credit card. Step 1: Choose Credit Card service on the login page. Click Click Figure 73 Login Page...
  • Page 88 CCESS ATEWAY Currency: American Dollars Figure 74 Service & Payment Information Setting Screen (Authorize.net) Configuring the Wireless Connect Gateway...
  • Page 89 CCESS ATEWAY Step 2: Select Service and enter payment information. Item Default Description Payment Information Credit card number Empty Enter your credit card number. Credit card expiration Empty Enter the credit card expiration date. The allowed date format is MMYY. Enter Email Address Empty Enter your email address.
  • Page 90 CCESS ATEWAY Figure 75 Service & Payment Information Setting Screen (iValidate.net) Item Default Description Payment Information Credit card number Empty Enter your credit card number. Configuring the Wireless Connect Gateway...
  • Page 91 CCESS ATEWAY Item Default Description Credit card expiration Empty Enter the credit card expiration date. The allowed date format is MMYY. Enter Email Address Empty Enter your email address. The system will e-mail your account information once your payment information has been successfully authorized. Billing Address ZIP Empty Enter the ZIP code.
  • Page 92 CCESS ATEWAY Figure 76 Service & Payment Information Setting Screen (Secure Pay) Item Default Description Payment Information Credit card number Empty Enter your credit card number. Configuring the Wireless Connect Gateway...
  • Page 93 CCESS ATEWAY Item Default Description Credit card expiration Empty Enter the credit card expiration date. The allowed date format is MMYY. Enter Email Address Empty Enter your email address. The system will e-mail your account information once your payment information has been successfully authorized. Figure 77 Service &...
  • Page 94 CCESS ATEWAY Figure 78 User Account Information Configuring the Wireless Connect Gateway...

  • Page 95: Management

    CCESS ATEWAY Figure 79 MANAGEMENT LAN Devices Administrator can control LAN Devices via the Wireless Connect Gateway. Configuring the Wireless Connect Gateway...
  • Page 96 CCESS ATEWAY Figure 80 LAN Devices Setting Screen Item Default Description Polling Interval 5 Min. The default value is 5 minutes. The Polling Interval valid range is 1 to 1440. Device Name Empty The LAN device name. The maximum characters of the device name are 20.
  • Page 97 CCESS ATEWAY Item Default Description Device MAC Empty The MAC address of LAN device. For inputting the device Address MAC address, please use this format such like”0050BA8D2296”. Application Select one protocol type for the LAN device by clicking in the list box. Click Apply button to save the new settings.
  • Page 98 CCESS ATEWAY Item Default Description Syslog Disable Enables or disables the syslog server function. Syslog on LAN Server IP Empty Enter syslog server’s IP address. The Wireless Connect Address Gateway will send all of its logs to the specified syslog server.
  • Page 99 CCESS ATEWAY Item Default Description Email Address Empty Enter your e-mail address. This is the address others will use to send email to Email Address 1/Email Address Email To Email Address 1 Empty Enter your first e-mail address to receive the logs. Email Address 2 Empty Enter your second e-mail address to receive the logs.
  • Page 100 CCESS ATEWAY Log Categories Figure 83 Log Settings Screen Configuring the Wireless Connect Gateway...
  • Page 101 CCESS ATEWAY Item Interval Time Description System Device 5~60 minutes Device information updated at specified interval time. Format: Information RODUCT=NWCG;VER=2.00.00;LOGNAME=DVI; DATE=07Mar26;TIME=11:30:00; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00- WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; SERIAL_NUMBER=12WG4P340001; SYS_UP_TIME=14D23H34M21S;WANTXOK=99999; WANRXOK=99999;WANTXERROR=99999;WANRXERROR =99999; LANTXOK=99999;LANRXOK=99999;LANTXERROR=99999 LANRXERROR=99999;WLAN_SSID1TXOK=99999; WLAN_SSID1RXOK=99999; WLAN_SSID1TXERROR=99999; WLAN_SSID1RXERROR=99999;WLAN_SSID2TXOK=9999 WLAN_SSID2RXOK=99999;WLAN_SSID2TXERROR=9999 9;WLAN_SSID2RXERROR=99999;WLAN_SSID3TXOK=99 999; WLAN_SS3D1RXOK=99999;WLAN_SSID3TXERROR=999 99; WLAN_SSID3RXERROR=99999; WLAN_SSID4TXOK=99999; WLAN_SS3D4RXOK=99999;...
  • Page 102 At system Updated when system manager (Administrator) logs in or out Account manager login from the device Activity or logout Format： Information PRODUCT=NWCG;VER=2.00.00;LOGNAME=SUN; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00- WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; SYS_NAME=Cafehotspot;LOCATION=East;CITY=Taipei; COUNTRY=Taiwan; FIRMWARE=v1.01.02;MESSAGE=System_Up; Account Name = Admin | Supervisor | Operator Status= Login | Logout | Idle_Time_Out...
  • Page 103 CCESS ATEWAY Item Interval Time Description User Login At user login Updated with user login events Format: PRODUCT=NWCG;VER=2.00.00;LOGNAME=ULI; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00- IP_ADDRESS=210.66.37.21; USER_NAME=asdfg12;USER_IP=10.59.1.1;USER_MAC=0 2-34-3e-01-00; INTERFACE=Ethernet; USER_TYPE=Dynamic; INTERFACE=Ethernet / ESSID 1 / ESSID 2/ ESSID 3 / ESSID4 User Type = Dynamic / Super / User Agreement / Radius /...
  • Page 104 CCESS ATEWAY Item Interval Time Description User Logout At user logout Updated with user logout events Format: PRODUCT=NWCG;VER=2.00.00;LOGNAME=ULO; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00- WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; USER_NAME=asdfg12;USER_IP=10.59.1.1;USER_MAC=0 2-34-3e-01-00; INTERFACE=Ethernet;USER_TYPE=Dynamic;RXDATA=12 34;TXDATA=1234; USED_TIME=24:00:00;LOGOUT_TYPE=Time_Up;TIME_LE FT=24:00:00 User Type = Dynamic / Super / User Agreement / Radius /...
  • Page 105 CCESS ATEWAY Item Interval Time Description Current User 5~60 minutes Updated with current user information at specified interval List time Format: PRODUCT=NWCG;VER=2.00.00;LOGNAME=CUL; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00- WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21;USER_NUM=0;SEQ=1-5; USER_NAME=asdfg12,USER_IP=10.59.1.2, USER_MAC=02-34-3e-01-00,INTERFACE=Ethernet; USER_TYPE=Dynamic, RXDATA=1234,TXDATA=1234,USED_TIME=24:00:00,SESS ION=100,WLAN_SIG=N/A; USER_NAME=dk6uf2eg,USER_IP=10.59.1.3, USER_MAC=02-34-3e-01- 02,INTERFACE=Wireless,USER_TYPE= Dynamic,RXDATA=1234,TXDATA=1234,USED_TIME=24:00 :00,SESSION=100,WLAN_SIG=100%; INTERFACE=Ethernet / ESSID 1 / ESSID 2/ ESSID 3 /...
  • Page 106 Item Interval Time Description Account and Billing Account At account Updated when an account is created Information creation Format: PRODUCT=NWCG;VER=2.00.00;LOGNAME=ACI;DATE=07 Mar26; TIME=15:23:32;WANMAC=09-00-0e-00-00-01; LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00- IP_ADDRESS=210.66.37.21;USER_NAME=asdfg12; ACCOUNT_TYPE=TimetoFinish; ACCOUNT_SERIAL=000002; ACCOUNT_PRICE= USD20.00; ACCOUNT_USAGE_TIME=10:59:59; BILLING_INDEX=1;BILLING_UNIT=2; Account Type = TimeToFinish / Accumulation Account Price = Currencyxx.xx...
  • Page 107 CCESS ATEWAY Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Logs setting screen. Figure 84 Success Dialog Box Session Trace Session Trace is an intelligent function to help service provider to trace every user’s access behavior.
  • Page 108 CCESS ATEWAY Figure 85 Session Trace Setting Screen Item Default Description Session Trace Disable Disables or enables session trace function. Primary TFTP Empty Enter the IP address of the primary TFTP server. Server IP Address Secondary TFTP Empty Enter the IP address of the second TFTP server. Server IP Address Send Session Trace The field means to send the session trace log file...
  • Page 109 CCESS ATEWAY Item Default Description Send to Email Disable Enables or disables the send to e-mail function. E-mail Server IP Address or Empty Enter the SMTP server IP address or domain name. Domain Name The maximum allowed characters length is 50. SMTP Port Empty The SMTP port allowed range is 25 or 2500 to 2599.
  • Page 110 CCESS ATEWAY Figure 86 Bandwidth Setting Screen Defa Item Description Bandwidth Disab Enables or disables Bandwidth Management. Maximum 64Kb Specify the amount of upstream bandwidth. Upstream Maximum 128K Specify the amount of downstream bandwidth. Downstream SNMP The SNMP Agent Configuration screen enables you to access to your device via Simple Network Management Protocol.
  • Page 111 CCESS ATEWAY Figure 87 SNMP Setting Screen Item Default Description SNMP Disable Disables or enables the SNMP management. SNMP Port If the SNMP is enabled, it can specify the SNMP port number via NAT. The allowed SNMP port numbers are Trap Port 161 (default), 16100-16199 and Trap port numbers are 162 (default), 16200-16299.

  • Page 112: Security

    CCESS ATEWAY Item Default Description Privileges Read/ Choose “Read”, “Write”, “Trap Recipients” and “All” for Write different privileges. The default setting of the entry 2 is “write” and others are “read”. Status Valid/ Chosen “Valid” or “Invalid”. The default setting of entry Invalid 1, 2 are valid and others are invalid.
  • Page 113 CCESS ATEWAY Item Default Description Pass Through Disable Enables or disables the pass through function. Destination URL/IP Address Pass Through URL or Empty Enter the URL Page; please use this format such like Website “http://www.yahoo.com”. The maximum character of the URL Page is 50.
  • Page 114 CCESS ATEWAY Item Default Description Mask Empty Enter the subnet mask of you want to pass through. Pass Through Display the pass through Information of Wireless Connect Gateway. List The index number of pass through address. Active Disable Click on check box, active or inactive the pass through address.
  • Page 115 CCESS ATEWAY Figure 89 Filtering Setting Screen Item Default Description Filtering Disable Enables or disables filtering function. HTTP The Web Enter the http message. The maximum character of the Message to Site is HTTP message is 200. display when blocked a website is by System blocked...
  • Page 116 CCESS ATEWAY Item Default Description Restrict Destination URL or Enter the URL Page of you wants to filter; please use this format Website Empty such like “http://www.yahoo.com”. The maximum character of the URL Page is 50. Start IP Empty Enter the start IP address of you wants to filter. Address End IP Empty...
  • Page 117 CCESS ATEWAY Item Default Description Click Apply button to save the new settings. Click Delete All & Apply button to delete all entries. Note: The priority of "pass through" is higher than "Filtering". Share This feature allows sharing the network devices after Connect successful login. Figure 91 Share Device Setting Screen Item Default...
  • Page 118 CCESS ATEWAY Item Default Description Resource MAC Empty Enter the MAC address of device. For input the Address device MAC address, please use this format such like”0050BA8D2296”. Interface Wired Select the interface. Share LAN resource List The index number of share LAN device. Active Disable Click on check box, active or inactive the share LAN...
  • Page 119 CCESS ATEWAY Figure 92 Secure Remote Setting Screen Item Default Description Auto-connect at Disable Enable the check box to automatically establish the Start-up (Always PPTP connection. connect) PPTP Server IP Empty Enter the PPTP server IP address provided by your address ISP.

  • Page 120: System

    CCESS ATEWAY Item Default Description VPN Tunnel Display the status. Client IP Display the IP address. SYSTEM System Define the Wireless Connect Gateway System configuration. Figure 93 System Setting Screen Configuring the Wireless Connect Gateway...
  • Page 121 CCESS ATEWAY Figure 94 System Setting Screen Configuring the Wireless Connect Gateway...
  • Page 122 CCESS ATEWAY Item Default Description System/Host Name Empty The system name can consist of up to 40 alphanumeric characters. Domain Name Empty The Domain name can consist of up to 80 alphanumeric characters. Location Information Empty Enter your location information. Date/Time Date (Year/Month/Day) System...
  • Page 123 CCESS ATEWAY Item Default Description Daylight Saving Time Disable Enables or disables Daylight Saving Time (DST). Month/ Set the Daylight Saving Time (DST) on the Wireless Connect Gateway. Adjust the begin time and end time. NAT (Network Address Translation) Enable Enables or disables NAT Network Address Translation function.
  • Page 124 CCESS ATEWAY Item Default Description SSL Certificate Default Option: default or customize certificate, These are two ways to create a certificate, one is purchase a certificate from a certificate authority (Ex. Verisign or Thawte), and another is creating a self-certificate (For example: Uses OpenSSL tool).
  • Page 125 CCESS ATEWAY WAN/LAN Figure 96 WAN/LAN Setting Screen Click Apply button to save the new settings. Click Apply button, then configuration successful box will appear. Figure 97 Configure Successful Dialog Box Configuring the Wireless Connect Gateway...
  • Page 126 CCESS ATEWAY Device IP (LAN IP) Setting Figure 98 Device IP (LAN IP) Setting Item Default Description Item Default Description IP Address 10.59.1.1 The internal LAN IP address of your Wireless Connect Gateway. Subnet 255.255.255.0 Enter the subnet mask for the IP address. Mask WAN MAC Address Figure 99 WAN MAC Address Setting...
  • Page 127 CCESS ATEWAY Item Description MTU (Maximum Transmission Unit) specifies maximum transmission MTU Setting unit size. WAN Port Mode Figure 101 WAN Port Mode Setting DHCP Client The device can work as a DHCP client. This allows the device to obtain the IP address and other TCP/IP settings from your ISP.
  • Page 128 CCESS ATEWAY Item Description IP Address Enter the IP address for the WAN connection (provided by your ISP). Subnet Mask Enter the subnet mask for the IP address. Gateway IP Enter the Gateway IP address for the WAN connection Gateway (provided by your ISP).
  • Page 129 CCESS ATEWAY Item Default Description User Name Empty Enter your PPPoE account name. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Password Empty Enter your PPPoE password. The password can consist of up to 80 alphanumeric characters and is case sensitive.
  • Page 130 CCESS ATEWAY PPTP Figure 105 PPTP Setting Screen Item Default Description My IP Address Empty A PPTP local IP address for the WAN connection (provided by your ISP). My Subnet Mask Empty Enter the PPTP local IP address for the WAN connection.
  • Page 131 CCESS ATEWAY Item Default Description Password Empty Enter your PPTP password. The password can consist of up to 80 alphanumeric characters and is case sensitive. PPP MTU Setting 1460 MTU (Maximum Transmission Unit) specifies maximum transmission unit size. TCP MSS Setting 1400 MSS (Maximum Segment Size) specifies maximum segment size.
  • Page 132 CCESS ATEWAY Server Figure 106 Server Setting Screen Item Default Description Web Server HTTP Port Enter the HTTP port number. The HTTP port allowed range is 80 or 8010 to 8060. For access the Wireless Connect Gateway system under NAT. HTTPS Port Enter the HTTPS port number.
  • Page 133 CCESS ATEWAY Item Default Description Administrator Idle- 5 Minutes The idle time out valid range is 1-1440. If the idle Timeout time out is set as 5 minutes, it means if the administrator doesn’t send packet in 5 minutes, the administrator will logout automatically. DHCP Server Enable There are three types of DHCP Services.
  • Page 134 CCESS ATEWAY Item Default Description IP Address or Domain Empty Enter the E-mail server IP address or domain Name name. SMTP Port Enter the SMTP port number for mail server. The SMTP port allowed range is 25 or 2500 to 2599. Click Apply button to save the new settings.
  • Page 135 CCESS ATEWAY Item Default Description IP Address Empty Enter the IP address that the administrator wants to assign to the computer on LAN. Empty Enter the MAC address of a computer on your LAN Address Click Apply button to save the new settings. Customization Login Page ...
  • Page 136 CCESS ATEWAY Figure 108 Standard Login Page Customization Setting Screen Item Default Description Logo Disable Select the check box to display service provider’s logo. Title Welcome Enter the title name of subscriber login page. The maximum allowed characters length is 80. Subtitle Hot Spot Enter the subtitle name of subscriber login page.
  • Page 137 CCESS ATEWAY Item Default Description Copyright Enable The copyright is allowed the administrator to input a paragraph in the subscriber login page for copyright information. The maximum character of the copyright is Background FFFFFF The background text color can be specified color. For the Color specified text color format please view the color grid.
  • Page 138 CCESS ATEWAY Redirect This allow service provider to redirect the subscribers browser to a specified home page. Figure 111 Redirect Login Page Setting Screen Copy and paste the following HTML Code into your home page to produce redirect subscriber login page. Figure 112 Redirect Login Page Code Screen Advanced This function allow user to design login page of Wireless Connect Gateway.
  • Page 139 CCESS ATEWAY Figure 113 Advanced Login Page Setting Screen Item Default Description Welcome Welcome The maximum allowed characters length is 80. Slogan Page None The page background can be none or specified color. For Background the background color format please view the color grid. The allowed format is Hexadecimal.
  • Page 140 CCESS ATEWAY Figure 114 Color Grid Frame If “Frame” is selected the subscriber login page will be separate into Top Frame and Bottom Frame. Bottom Frame is a default format for username and password input, Top Frame is allowed to be specified a URL to link. www.caesarpark.com Figure 115 Frame Login Page Setting Screen Item...
  • Page 141 CCESS ATEWAY Logo This function allows the administrator to upload the customer’s logo image file which can be shown on the standard login page and account printout of PC-connected printer. Figure 117 Logo Setting Screen Configuring the Wireless Connect Gateway...
  • Page 142 CCESS ATEWAY Figure 118 Login Page Item Default Description File Path Empty Enter the file pathname of the logo file in the File Path field. Click Apply button to save the logo file to system. Click Delete button to delete the logo file. Information Window This function allows administrator to decide whether they want an “Information Window”...
  • Page 143 CCESS ATEWAY Figure 119 Information Setting Screen Figure 120 Example-Login Page Screen Configuring the Wireless Connect Gateway...
  • Page 144 CCESS ATEWAY Billing Type=Time to Finish Can be replenished by Subscriber=Disable Figure 121 Information Window Billing Type=Time to Finish Can be replenished by Subscriber=Enable Figure 122 Information Window Billing Type=Accumulation Can be replenished by Subscriber =Disable Configuring the Wireless Connect Gateway...
  • Page 145 CCESS ATEWAY Figure 123 Information Window Billing Type=Accumulation Can be replenished by Connect=Enable Figure 124 Information Window Account Printout This function allow administrator to specified text of account printout. Configuring the Wireless Connect Gateway...
  • Page 146 CCESS ATEWAY Figure 125 Account Printout Customization Setting Screen Configuring the Wireless Connect Gateway...
  • Page 147 CCESS ATEWAY Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Account Printout Customization setting screen. Figure 126 Success Dialog Box Figure 127 PC-connected Printer Printout Configuring the Wireless Connect Gateway...
  • Page 148 CCESS ATEWAY Figure 128 Account Generator Printer Printout Credit Card Standard Login Page This function allow administrator to customize the additional credit card message for  the standard login page. Figure 129 Credit Customization Setting Screen Configuring the Wireless Connect Gateway...
  • Page 149 CCESS ATEWAY Figure 130 Standard Login Page (Enable Credit Card Service=enable) Figure 131 Billing Setting Screen Service Selection Page This function allow service provider to customize the additional credit card message  for the standard login page. Configuring the Wireless Connect Gateway...
  • Page 150 CCESS ATEWAY Customer Information Figure 132 Service Selection Page Setting Screen (Authorize.net) Configuring the Wireless Connect Gateway...
  • Page 151 CCESS ATEWAY Figure 133 Service Selection Page Setting Screen (iValidate.net) Figure 134 Service Selection Page Setting Screen (Secure Pay) Configuring the Wireless Connect Gateway...
  • Page 152 CCESS ATEWAY Figure 135 Service Selection Page Setting Screen (PayPal and WorldPay) Configuring the Wireless Connect Gateway...
  • Page 153 CCESS ATEWAY Configuring the Wireless Connect Gateway...
  • Page 154 CCESS ATEWAY Figure 136 Service Selection Page Setting Screen (Authorize.net) Figure 137 Service Selection Page Setting Screen (iValidate.net) Configuring the Wireless Connect Gateway...
  • Page 155 CCESS ATEWAY Figure 138 Service Selection Page Setting Screen (Secure Pay) Configuring the Wireless Connect Gateway...
  • Page 156 CCESS ATEWAY Figure 139 Service Selection Page Setting Screen (PalPay and WorldPay) Configuring the Wireless Connect Gateway...
  • Page 157 CCESS ATEWAY Successful Page Figure 140 Successful Page Setting Screen Configuring the Wireless Connect Gateway...
  • Page 158 CCESS ATEWAY Figure 141 Example-Successful Page Fail Page This function allow service provider to customize the message for the fail page.  Figure 142 Fail Page Setting Screen Click Apply button to save the new settings. Configuring the Wireless Connect Gateway...
  • Page 159 CCESS ATEWAY Figure 143 Fail Page Click Apply button, the success dialog box appears. Click on Back to return to Credit Card Customization setting screen. Figure 144 Success Dialog Box User Agreement Page This function allow user to design user agreement page of Wireless Connect Gateway ...
  • Page 160 CCESS ATEWAY Figure 145 User Agreement Page Setting Screen Figure 146 User Agreement Page Portal Page This feature allows redirecting subscriber’s browser to a specified portal page after successful login. Configuring the Wireless Connect Gateway...
  • Page 161 CCESS ATEWAY Figure 147 Portal Page Setting Screen Item Default Description Empty Enter the URL Link page. The input format can be “http:// Link www.yahoo.com”. The maximum characters of the URL Link are 200. Click Apply button to save the new settings. Click Apply button, the success dialog box appears.
  • Page 162 CCESS ATEWAY Figure 149 Advertisement URL Link Setting Screen Item Default Description Frequency One Time One Time Only—One Time Only means to send the Only advertisement link once after the subscriber Login. Every~Min(s)—The field means to send the advertisement link every interval minutes.
  • Page 163 CCESS ATEWAY Figure 150 Success Dialog Box Walled Garden We prepare ten URL links that allows subscriber to access the specific Web pages even they didn’t have a username or password. It’s free Internet access that can be used for advertising. Yahoo www.yahoo.com Name...
  • Page 164 CCESS ATEWAY Figure 152 Login Page Item Description Link 1~10 Name The name is for the administrator to identify the URL. The maximum allowed characters length is 80. URL 1~10 The input format can be “http://www.yahoo.com”. The maximum characters of the Link is 200. Click Apply button, the success dialog box appears.
  • Page 165 CCESS ATEWAY Figure 153 Success Dialog Box DDNS The DDNS service (Dynamic Domain Name Service), allows for public mapping for host name to IP address when IP address is assigned dynamically. This is important if the Wireless Connect Gateway uses a dynamic IP address.. When the ISP assigns the Wireless Connect Gateway a new IP, the Wireless Connect Gateway must inform the DDNS server the change of this IP so that the server can update its IP-to-DNS entry.
  • Page 166 CCESS ATEWAY Figure 154 DDNS Setting Screen Configuring the Wireless Connect Gateway...
  • Page 167 CCESS ATEWAY Item Default Description Force to update 1 day Enter a number in the field to set the force update every ~day(s) when interval in days. WAN IP address does not change 01~03 The index number of a DDNS account. Active Disable Click on check box, enable or disable the DDNS...
  • Page 168 CCESS ATEWAY Click Apply button to save the new settings Click Apply button, the success dialog box appears. Click on Back to return to DDNS setting screen. Figure 155 Success Dialog Box Wireless Figure 156 Wireless Setting Screen Configuring the Wireless Connect Gateway...
  • Page 169 CCESS ATEWAY Item Default Description General Settings Wireless Enable To Enable or Disable wireless connection. Connection Channel Select the channel ID for wireless connection. Note: Channel 12~13 are not allowed to use in North America area. 802.11 Mode 802.11n+8 Select the 802.11 mode of following:： 02.11g+80 -802.11n+802.11g+802.11b 2.11b...
  • Page 170 CCESS ATEWAY Item Default Description RTS Threshold 2342 This value valid range is 256-2342. This setting determines the packet size at which the Wireless Connect Gateway issues a request to send (RTS) before sending the packet. A low RTS Threshold setting can be useful in areas where many client devices are associating with the Wireless Connect Gateway, or in areas where the clients are far apart...
  • Page 171 CCESS ATEWAY Multiple ESSID Setting > ESSID 1 Configuration Figure 158 Wireless ESSID 1 Configuration Setting Screen Item Default Description ESSID The ESSID is the unique name that is shared among all points in a wireless network. It is case sensitive and must not exceed 32 characters.
  • Page 172 CCESS ATEWAY Item Default Description Pre-Shared Key Empty Enter a pre-shared key from 8 to 63 case sensitive ASCII characters. Use WPA or Disable WPA2 with 802.1x Server IP Empty Enter the RADIUS server IP address or domain name. The maximum allowed characters length is Authentication 1812 Enter the authentication port number.
  • Page 173 CCESS ATEWAY Item Default Description ESSID The ESSID is the unique name that is shared among all points in a wireless network. It is case sensitive and must not exceed 32 characters. Broadcast Enable Enable or Disable to show the presence of the ESSID Access Code Disable...
  • Page 174 CCESS ATEWAY Figure 160 Wireless ESSID 3 Configuration Setting Screen Multiple ESSID Setting> ESSD 3 Configuration Item Default Description ESSID The ESSID is the unique name that is shared among all points in a wireless network. It is case sensitive and must not exceed 32 characters. Broadcast Enable Enable or Disable to show the presence of the...
  • Page 175 CCESS ATEWAY Item Default Description Pre-Shared Key Empty Enter a pre-shared key from 8 to 63 case sensitive ASCII characters. Use WPA or Disable WPA2 with 802.1x Server IP Empty Enter the RADIUS server IP address or domain name. The maximum allowed characters length is Authentication 1812 Enter the authentication port number.
  • Page 176 CCESS ATEWAY Item Default Description ESSID The ESSID is the unique name that is shared among all points in a wireless network. It is case sensitive and must not exceed 32 characters. Broadcast Enable Enable or Disable to show the presence of the ESSID Access Code Disable...
  • Page 177 CCESS ATEWAY Note Any ESSID can be configured to use Access Codes. Voucher cannot be used with Access Codes. Account Generator Figure 162 Account Generator Printer Setting Screen Configuring the Wireless Connect Gateway...
  • Page 178 CCESS ATEWAY Figure 163 Application Configuring the Wireless Connect Gateway...

  • Page 179: System Status

    CCESS ATEWAY System Status Display Wireless Connect Gateway system basic status, including, System  Account List  Account Log  Current User  DHCP Clients  Session List  LAN Devices  Figure 164 System Status Item Screen System The System Information Menu displays current system basic information including the service connection message, host name, LAN, WAN, DHCP Configuration, DNS, E-mail Redirection, SSL Certificate, network traffic Information and the system firmware version number.
  • Page 180 CCESS ATEWAY Figure 165 System Status Screen Configuring the Wireless Connect Gateway...
  • Page 181 CCESS ATEWAY Figure 166 System Status Screen Configuring the Wireless Connect Gateway...
  • Page 182 CCESS ATEWAY Account List You can display a list of all the account information on this device. This table includes the username, password, usage time, time created, login time, expiration time and status. Figure 167 Account List Click on refresh button to update the account list page. Click the column button to sort the column in ascending/descending order.
  • Page 183 CCESS ATEWAY Account Log The account log shows the accounts’ log information.  Figure 168 Account Log This allows you to export the account logs to a text file format. (export.log) Click on Clear Log to remove all account log entries. Click on refresh button to update the account log page.
  • Page 184 CCESS ATEWAY Figure 169 Current User List Figure 170 Current User List (super account) Figure 171 Current User List (No Authentication) Configuring the Wireless Connect Gateway...

  • Page 185: Dhcp Clients

    CCESS ATEWAY Figure 172 Current User List (Access Code) Click on refresh button to update the current user list page. Type Username IP Address MAC Address Click the column button to sort the column in ascending/descending order. Select the check boxes and click ‘Disconnect’ to disconnect accounts. Disconnect all accounts in current user list.

  • Page 186: Session List

    CCESS ATEWAY Figure 173 Current User Screen Session List The remote site administrator could monitor the real time usage status of Wireless  Connect Gateway via this page. Figure 174 Session List Screen LAN Devices Figure 175 LAN Devices Status Screen Configuring the Wireless Connect Gateway...

  • Page 187: System Tools

    CCESS ATEWAY Figure 176 Example- Ethernet Switch Management Screen You can manage all devices by clicking on device name to access the device’s Web-based interface. System Tools This allows service provider or administrator to process Firmware upgrade, change password and backup or restore configuration. Configuration ...

  • Page 188: Configuration

    CCESS ATEWAY Configuration Use the Configuration item to save, restore or reset configuration parameters of the Wireless Connect Gateway. Figure 178 Configuration Setting Screen Item Default Description Backup Click it to save the system configuration to your computer. (export.cfg) Remote TFTP Empty Enter the IP address of TFTP Server.

  • Page 189: Firmware Upgrade

    CCESS ATEWAY Item Default Description Reset the system Erase all configurations and revert back to factory settings back to factory defaults Keep subscriber Disable Click the keep subscriber profile to change all the profile parameters into factory settings but still reserve the subscriber profiles.
  • Page 190 CCESS ATEWAY Item Default Description Remote TFTP Server Empty Enter the IP address of TFTP Server. IP Address File Name Empty Enter the file name in the File Name field. Note: 1. Before downloading the new firmware, administrator must save the configuration file to restore configuration parameters of the device.

  • Page 191: Extended

    CCESS ATEWAY Item Default Description File Empty Enter the file name and location in the File Synchronization Synchronization field. Click the button to display synchronization file example. Frequency Weekly Set the firmware upgrade time. The default value is “Weekly”. Figure 181 Synchronization File Sample Code Note: Do not turn the power off during the upgrade process.

  • Page 192: Boot Code

    CCESS ATEWAY Item Default Description This allow administrator to extended device service, if service expires the device will stop service until administrator enters the activation code Status Expiration Date DD/MM/YYYY Activation Code Enter the Activation Code License Code and click the “Active”...
  • Page 193 CCESS ATEWAY Figure 184 System Account Setting Screen Configuring the Wireless Connect Gateway...
  • Page 194 CCESS ATEWAY Item Description Username The username can consist of up to 20 alphanumeric characters and is case sensitive. Password The password can consist of up to 20 alphanumeric characters and is case sensitive. Confirm Reenter the password for confirmation. Super Disables or enables the super account function.
  • Page 195 CCESS ATEWAY Username: admin Password: admin Figure 186 Administrator Account Login Screen (First Time) Configuring the Wireless Connect Gateway...
  • Page 196 CCESS ATEWAY Figure 187 System Quick View Web-Based Accounting Manager Figure 188 Web Browser Location Field (Factory Default) Start your Web browser and enter the factory default IP address 10.59.1.1 in your browser’s location box. Press Enter. Configuring the Wireless Connect Gateway...
  • Page 197 CCESS ATEWAY The Wireless Connect Gateway configuration main menu will appear. Enter account as the Username and account as the password and click Login. Username: account Password: account Figure 189 Web-Based Accounting Manager Login Screen After a valid user name and password have been provided, the account Generator Panel homepage will appear.
  • Page 198 CCESS ATEWAY Start your Web browser and enter the factory default IP address 10.59.1.1 in your browser’s location box. Press Enter. The Wireless Connect Gateway configuration main menu will appear. Enter supervisor as the Username and supervisor as the password and click Login. Username: supervisor Password:...

  • Page 199: Ssl Certificate

    CCESS ATEWAY Super Connect Account Start your Web Browser; a Connect login page will appear. Enter super as the Username and super as the password and click Enter, you can use Internet now Username: super Password: super Figure 194 Connect Login Page SSL Certificate The function allows you to download the registered CA certificate into the Wireless Connect Gateway.

  • Page 200: Ping Command

    CCESS ATEWAY Ping Command The Ping function can check the Wireless Connect Gateway networking connective or  not. Figure 196 Ping Command Screen Item Description IP or Enter the IP address or the URL link. Restart If your Wireless Connect Gateway is not operating correctly, you can choose this option to display the restart Wireless Connect Gateway screen.

  • Page 201: Logout

    CCESS ATEWAY Figure 197 Restart Screen Logout If you would like to leave the configuration page, please click apply to exit.  Figure 198 Logout Screen Configuring the Wireless Connect Gateway...
  • Page 202 CCESS ATEWAY Configuring the Wireless Connect Gateway...

  • Page 203: Chapter 4: Appendices

    CCESS ATEWAY Appendices Appendix A Signal Connection Arrangements RJ-45 Ethernet Port The Wireless Connect Gateway RJ-45 Ethernet port can connect to any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router. Use unshielded twisted- pair (UTP) or shield twisted-pair (STP) cable to connect the networking device to the RJ-45 Ethernet port.

  • Page 204: Nomadix Wireless Connect Gateway

    Changes or modification not expressly approved be the party responsible for compliance could void the user’s authority to operate the equipment. Nomadix Wireless Connect Gateway The Nomadix product support overview and policy is available on the Nomadix website under the support tab: http://www.nomadix.com/support_overview.php...
