Adding Aftermarket Actuators

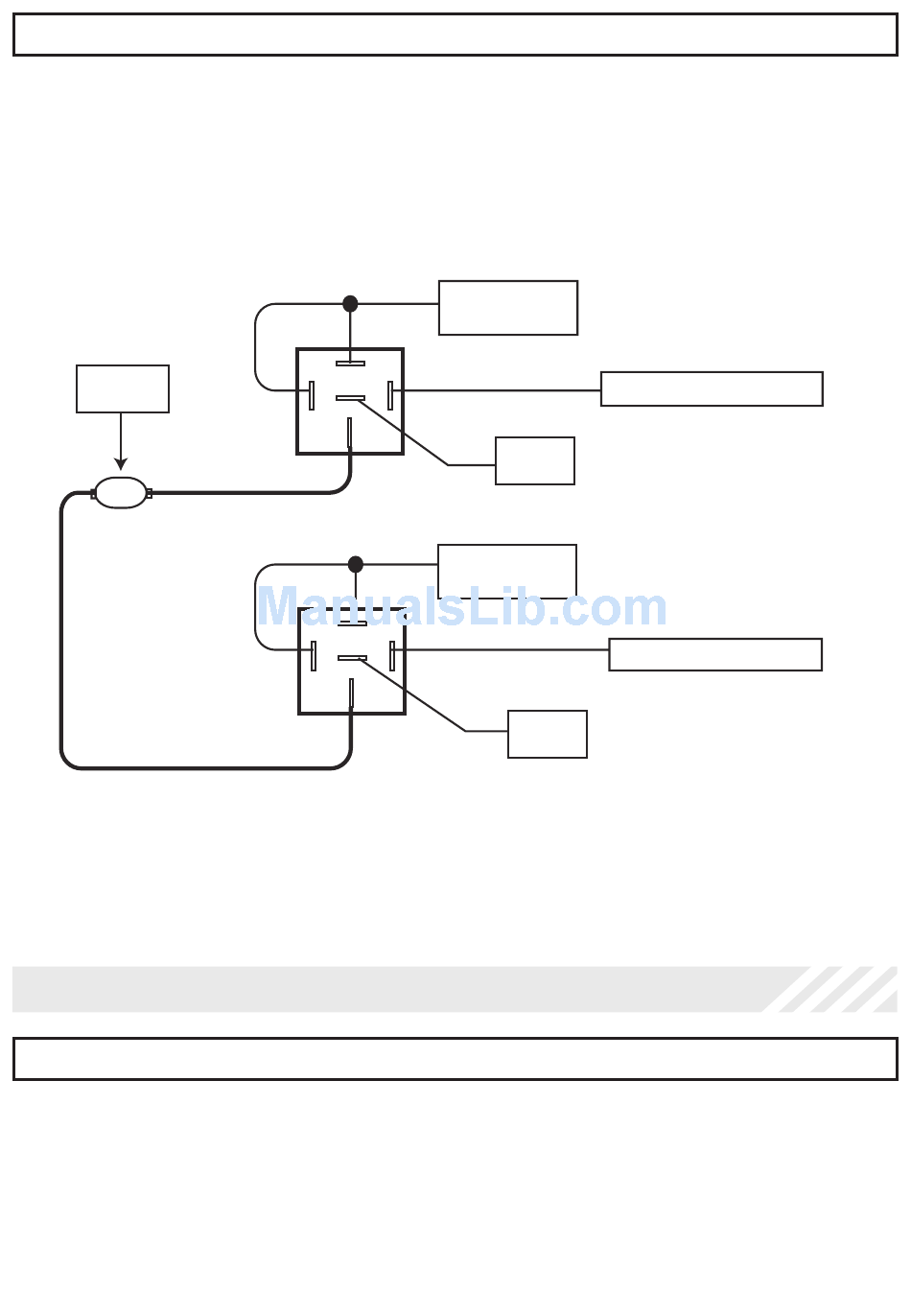

After installing aftermarket actuators, (not supplied). Connect the GREEN and
BLUE wires shown in the diagram below using (2) SPDT relays (not supplied).
Door Lock
Actuator
M

Additional Ports

Antenna Port

Mount the supplied antenna/receiver to a clear spot on the vehicle's windshield
that will not block the driver's vision. A good location is usually high on the
windshield near the rear view mirror. Be careful not to mount the antenna/receiver
on any metallic window film, as this will effect system range. Route the antenna/
receiver cable to the control module and plug in to the antenna port.
24
87
87a
85
86
30
87
87a
85
86
30
Fused +12 Volt
Battery Source
GREEN (-) Lock Output
Chassis
Ground
Fused +12 Volt
Battery Source
Chassis
Ground
