Code Alarm professional series PROCOMP Installation Manual page 20

Positive Switching and Positive Switching with 2-step unlock
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: These wires will register positive voltage when the Lock and
Unlock switches are activated.
Driver's Door Unlock: Locate the unlock motor wire directly from the actuator
inside the driver's door.
Verification: This wire will rest at ground and register positive voltage when
the driver's door is unlocked.

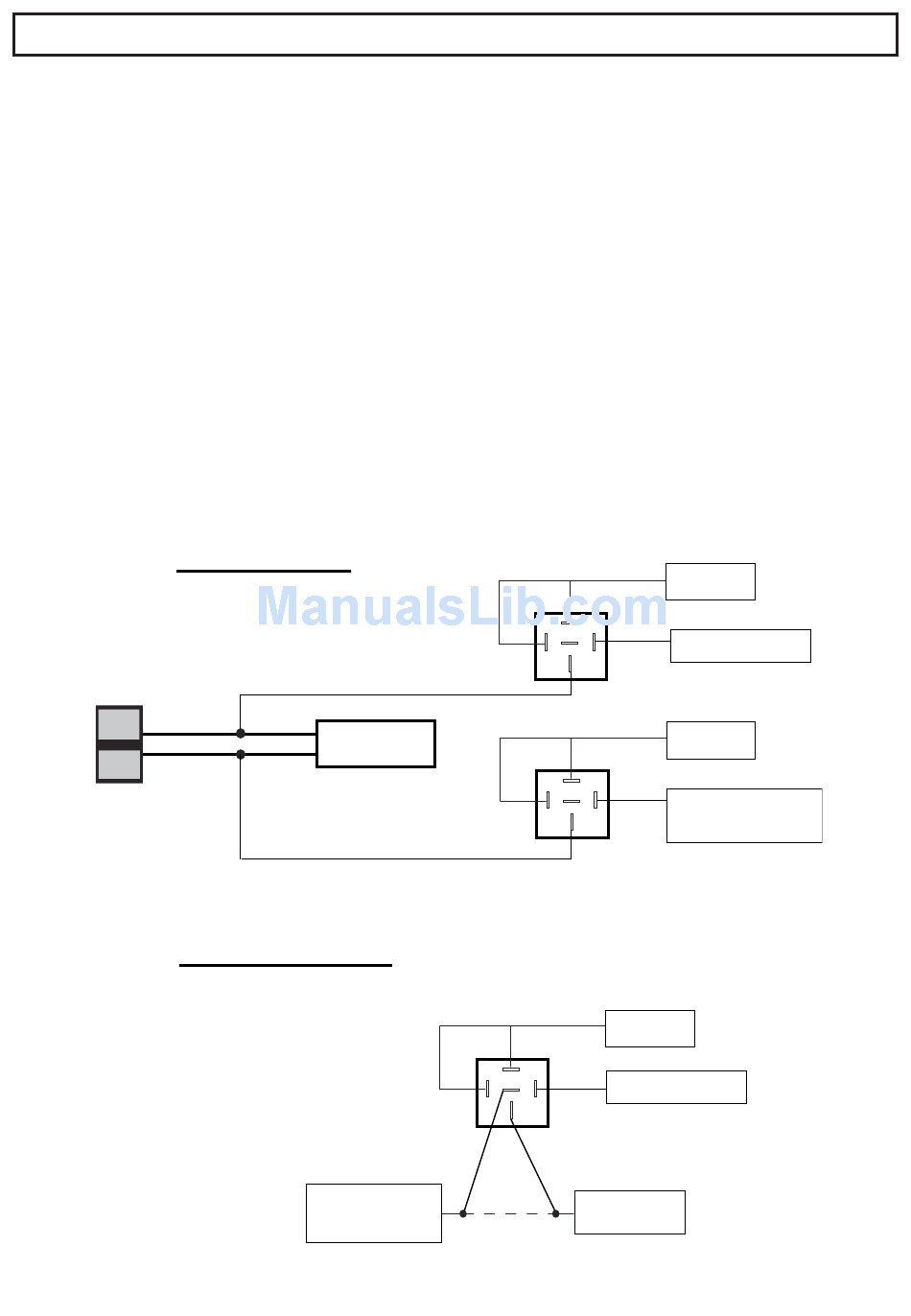

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram
below.
NOTE: When adding the 2 step unlock feature the BLUE/GREEN 2nd door unlock
wire will be used to unlock all vehicle doors on the second press of unlock. Two
additional SPDT relays (not supplied) are required. Connect the relays as shown
in the diagram below to unlock the driver's door on the first press of unlock.
Lock
Unlock
20
Positive Locks:
Vehicle Door Lock
Control Relays
For 2 Step Unlock:
From Keyless Entry
Module or Door
Unlock Relay
87
87a
86
85
30
87
87a
86
85
30
Fused +12 Volt
Battery Souce
87
87a
BLUE (-) Unlock Output
86
85
30
X
Drivers Door
Unlock Motor Wire
Cut
2012 Audiovox Electronics Corporation. All rights reserved.
Fused +12 Volt
Battery Souce
GREEN (-) Lock Output
Fused +12 Volt
Battery Souce
BLUE (-) Unlock Output or
BLUE/GREEN 2nd Unlock
Output for 2 Step Unlock
