Pin Door Lock Harness - Code Alarm professional series PROCOMP Installation Manual

3 Pin Lock Harness
1 BLUE/GREEN
2 BLUE
3 GREEN
The door lock / unlock outputs are designed to control several different types of
systems which may require additional parts. Please review the wire and location
chart to see which type of door lock system is in your vehicle. The most common
types are shown in the following diagrams.
Negative Switching and Negative Switching with 2-step unlock
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: These wires will register ground when the Lock and Unlock
switches are activated.
Driver's Door Unlock: Locate the unlock motor wire directly from the actuator
inside the driver's door.
Verification: This wire will rest at ground and register positive voltage when
the driver's door is unlocked.
Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram
below.
NOTE: When adding the 2 step unlock feature the BLUE/GREEN 2nd door unlock
wire will be used to unlock all vehicle doors on the second press of unlock. An
additional SPDT relay (not supplied) is required. Connect the relay as shown in
the diagram below to unlock the driver's door on the first press of unlock.

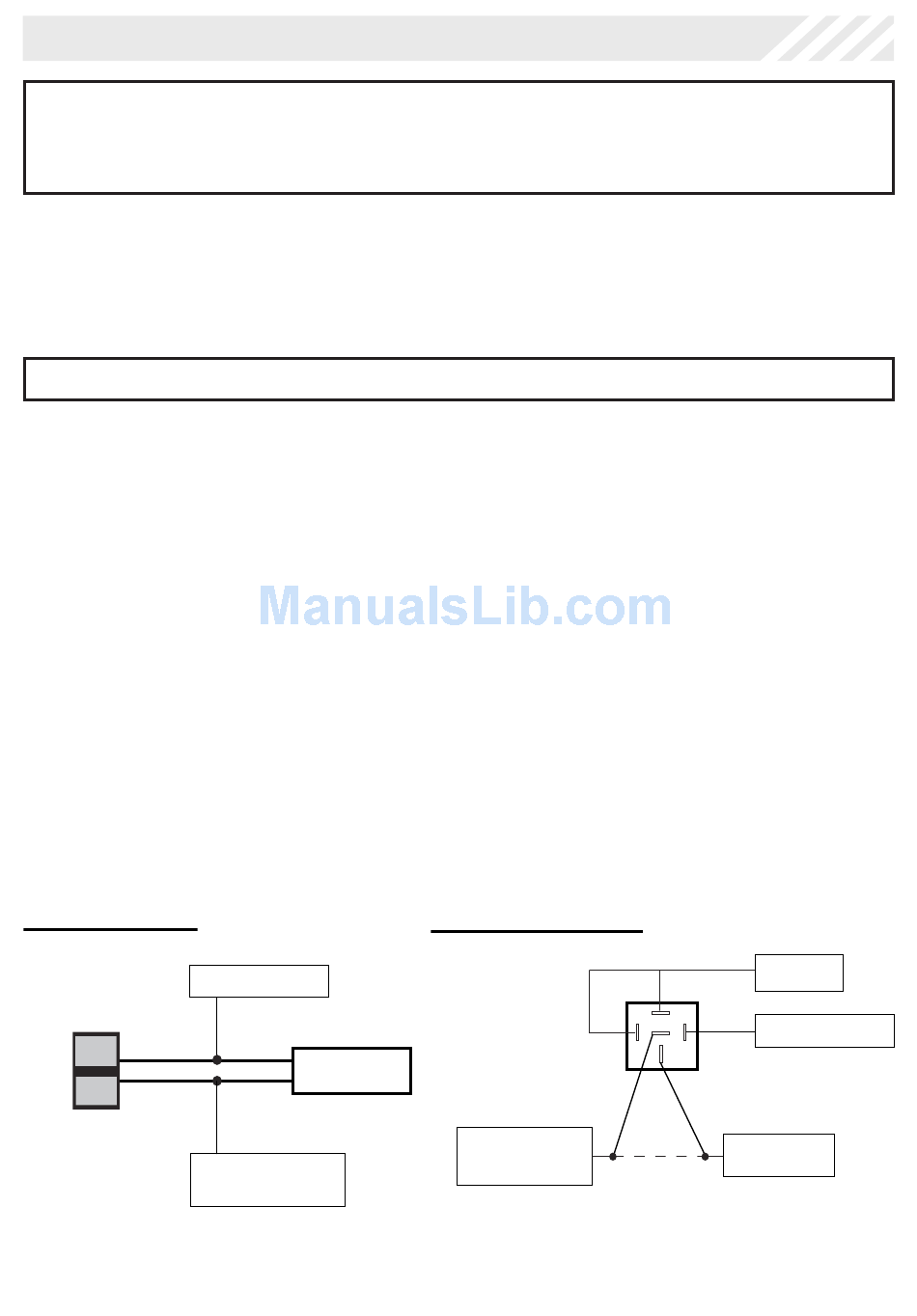

Negative Locks:
Lock
Unlock
