Pin Auxiliary Harness - Code Alarm professional series PROCOMP Installation Manual

3 GREEN/WHITE
This wire will supply a ( - ) 500mA pulse after the remote start shuts down. This
is typically used to re-lock the vehicle's doors if they unlock upon remote start
shutdown. It can also be used to pulse a door pin-switch wire to prevent the
vehicle's accessories from remaining on after remote start shutdown.
4 BLACK/YELLOW
Locate the vehicle's second starter (crank) wire at the ignition switch. (if equipped)
Verification: This wire registers voltage only in the start (crank) position of
the ignition switch.

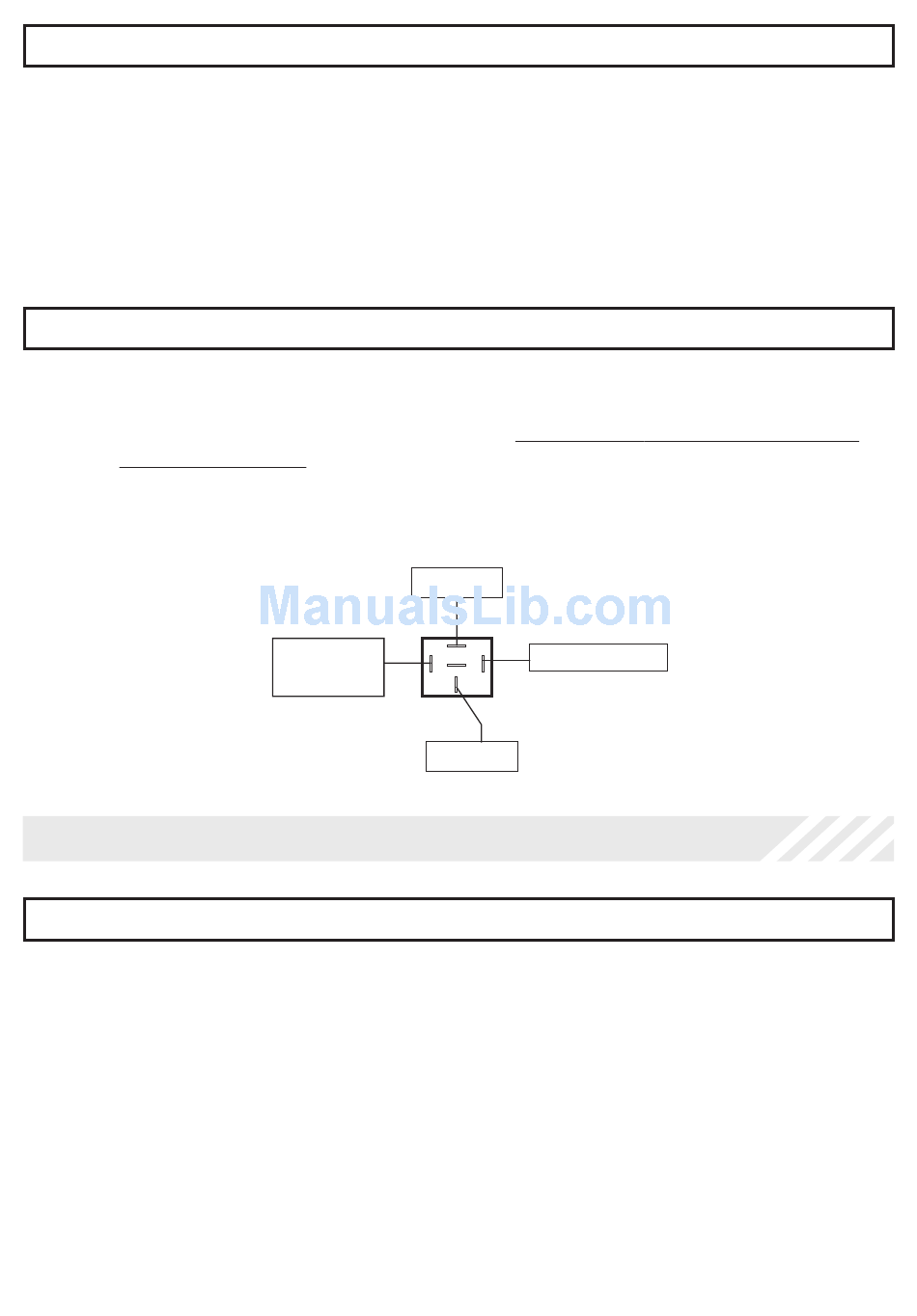

Connect the BLACK/YELLOW wire as shown in the diagram below. Use an SPDT
relay (not supplied).

4 Pin Auxiliary Harness

1 ORANGE/BLACK
This wire provides a ( - ) 500mA output capable of driving relays. For Control of
optional accessories (i.e. Power Window/Sunroof, etc.).
To activate refer to the transmitter button configuration chart. Please refer to the
selectable options for timing.
Selectable timing: Push & Hold, 10 Seconds, 20 Seconds, Latched ON until
ignition ON, Latched ON until button press.
2012 Audiovox Electronics Corporation. All rights reserved.
PULSE AFTER SHUTDOWN ( - )
PULSE DURING CRANK ( - )
Fused +12 Volt
Battery Source
87
Jump To PURPLE
87a
Starter Output
86
Wire From The
Control Module 30
To Vehicle's 2nd
Starter Wire
AUX 4 OUTPUT ( - )
BLACK/YELLOW Pulse
During Crank Wire
85
