15 LT GREEN/ORANGE
Locate the vehicle's headlight wire.
Verification: This wire will register either positive voltage or ground when the
headlights are turned on.
Connect the LT. GREEN/ORANGE to the vehicle's headlight wire if the system is
negative. (LOW CURRENT ONLY)

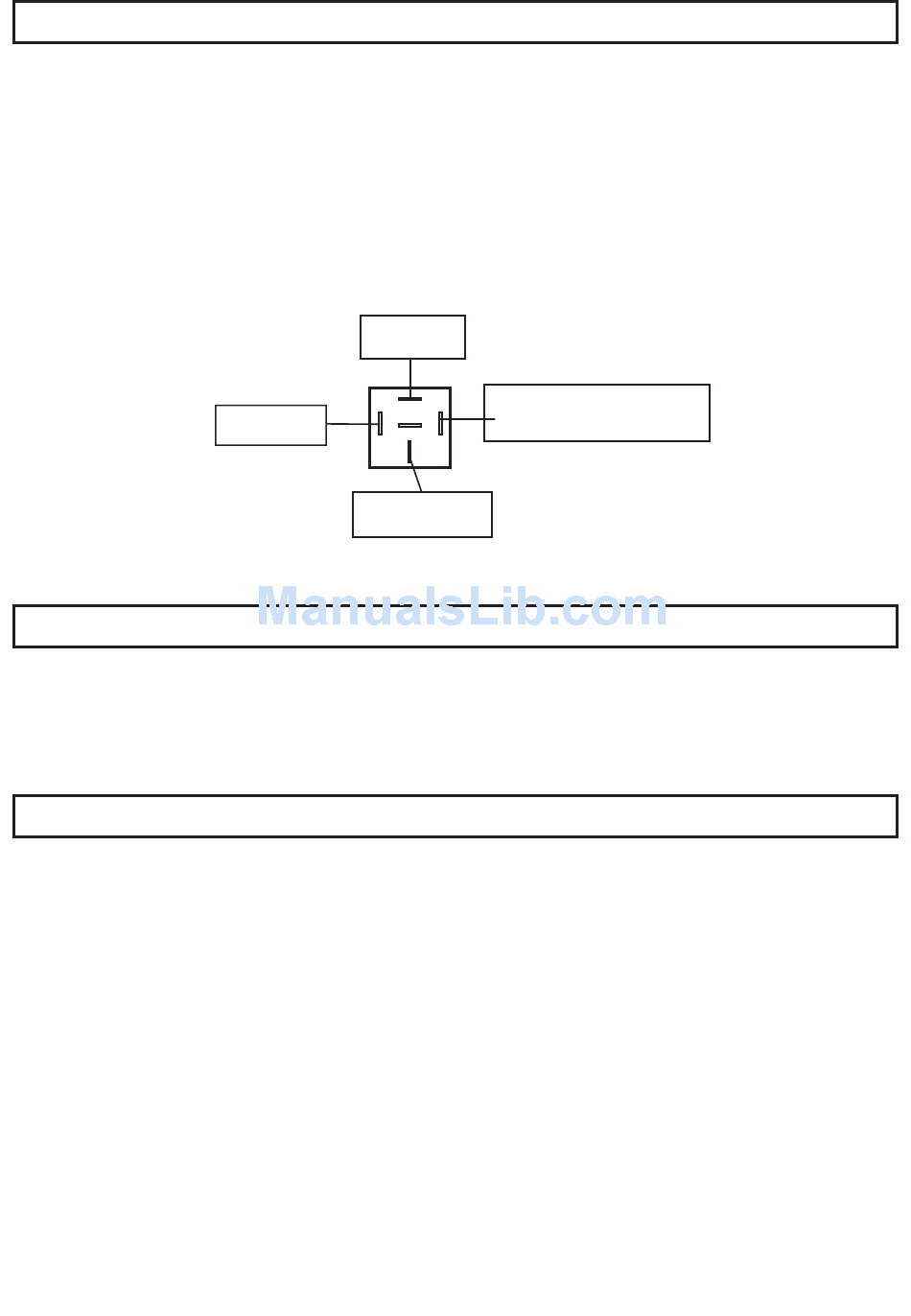

See the following diagram when connecting to a Positive Headlight Output:
16 ORANGE/WHITE
This wire will have a continuous ( - ) 500mA output when the system is disarmed.
This wire is typically used for normally open starter kill circuits.
17 PURPLE/WHITE
Locate the vehicle's ignition coil or fuel injector in the engine compartment.
Verification: Test using the following procedure:
1. Set voltmeter to AC VOLTS.
2. Attach positive lead of a volt meter to a constant 12-volt source.
3. Attach negative lead of a volt meter to the wire to be tested.
4. Start the engine.
5. Have someone press on the gas pedal slightly as you monitor the meter. If
connected to the correct wire, the voltage reading will increase as the engine's
RPM increases.
Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil
or fuel injector.
12
Fused +12 Volt
Battery Feed
87
Fused +12 Volt
Battery Feed
86
30
To Vehicle Headlight
TACH INPUT
HEADLIGHT OUTPUT ( - )
Lt. GREEN/ORANGE Headlight
87a
Output From Control Module
85
Wire
GROUND WHEN DISARMED OUTPUT
