Code Alarm Procomp Owner's Manual

Code Alarm Procomp Owner's Manual

Professional series deluxe vehicle security and remote start system with 900 mhz 2 way confirming oled remote control
Hide thumbs Also See for Procomp:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
professional
series
Owner's Guide
PROCOMP
Deluxe Vehicle Security and Remote
Start System with 900 Mhz 2 Way
Confirming OLED Remote Control
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
2012 Audiovox Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Procomp and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Code Alarm Procomp

Summary of Contents for Code Alarm Procomp

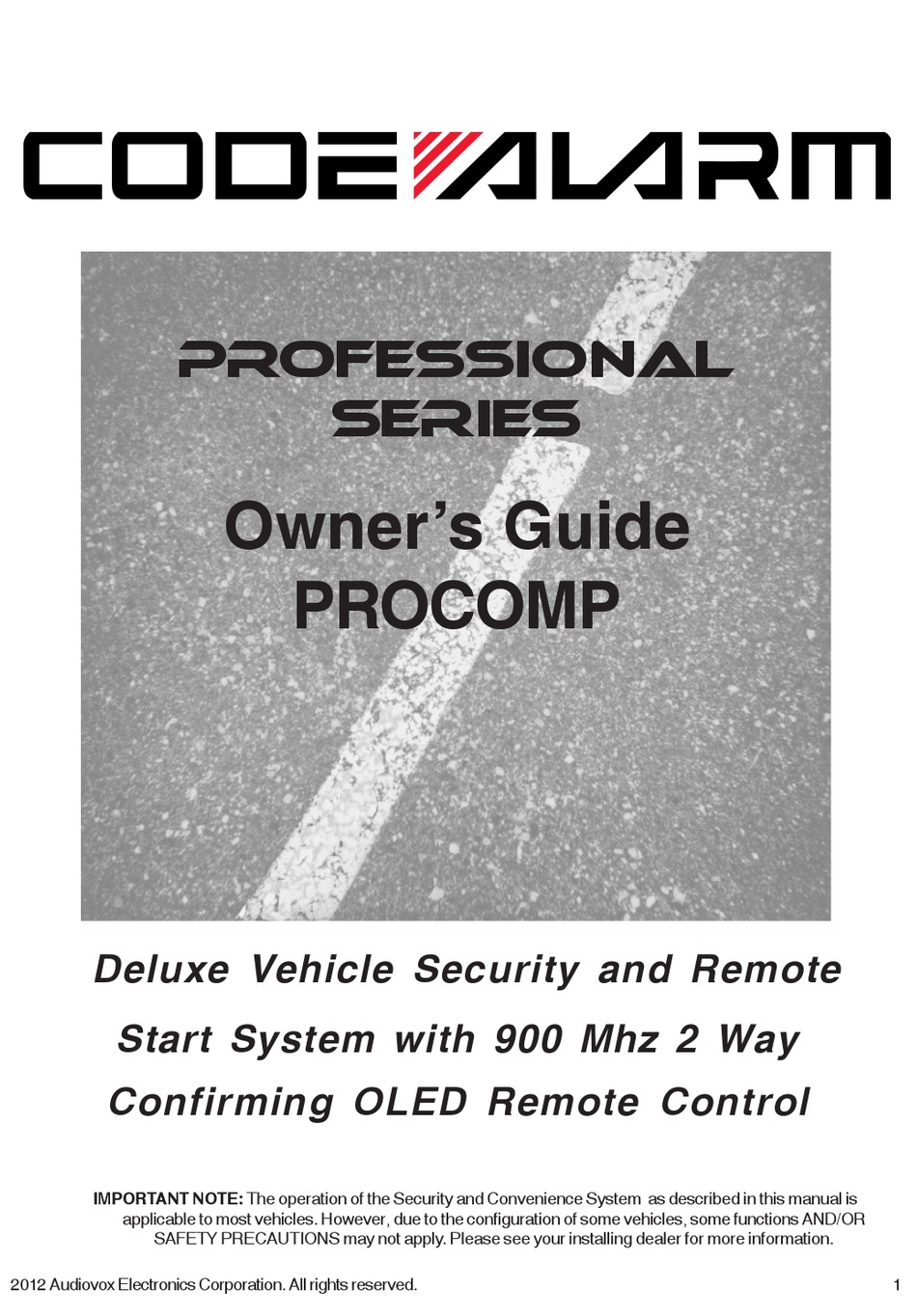

  • Page 1 Owner’s Guide PROCOMP Deluxe Vehicle Security and Remote Start System with 900 Mhz 2 Way Confirming OLED Remote Control IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply.

  • Page 2: Table Of Contents

    Table of Contents Using Your Remote Control ............... 3 Using the 2 Way Remote Control for the First Time ......3 Arming the Security System ............3 Bypassing the Shock Sensor ............3 Disarming the Security System ............4 Two Stage Door Unlock (optional) ........... 4 Eliminating Arm / Disarm Notification Chirps ........

  • Page 3: Using Your Remote Control

    Using Your Remote Control Using the 2 Way Remote Control for the First Time. The 2 way remote control has been shipped in Battery Save Mode to conserve battery power and will be necessary for you to turn off battery save mode before using the remote for normal operation.

  • Page 4: Disarming The Security System

    Disarming the Security System To disarm the system press the button. The parking lights will flash 1 time, indicating the system is disarmed and has unlocked the doors (if equipped and connected). NOTE: The system is defaulted with Silent Choice enabled, which requires a second press of the button to activate an audible arming response from the vehicle.

  • Page 5: Activating Trunk Release (Optional)

    Activating the Trunk Release Feature (Optional) If this feature is enabled on your system, pressing and holding the button for 3 seconds will open the vehicle’s trunk or hatch. Activating Optional AUX 1 (Optional) This feature can be programmed for a wide range of functions like power window or sunroof automation, please consult your installing dealer to determine the functionality of your system.

  • Page 6: Valet Mode

    Valet Mode To engage valet mode: 1. Turn the ignition key to the ON position. 2. Press and hold the valet button for 5 seconds. 3. The LED will light solid indicating that the system is in valet mode. When valet mode is activated the status LED will light solid, and all security functions will be disabled.

  • Page 7: Programming Your Personal Override Code

    Coded Emergency Override Procedure: The system has an optional override mode that allows you to program a 2 digit personal code using the emergency override button offering a higher level of security. This feature must be enabled by your installing dealer, the default override code is 11.

  • Page 8: Using Your Remote Vehicle Starter

    Using Your Remote Vehicle Starter Remote Starting Your Vehicle To activate the remote vehicle start function, press and release the button 2 times within 2 seconds. The system will sound, the parking lights will flash 1 time and the system will check the vehicle to ensure it is safe to start. If all safety parameters are correct, the vehicle will start within 5 seconds.

  • Page 9: Turbo Timer Mode (Optional)

    Turbo Timer This option will keep the engine running to allow the vehicle’s turbo to properly cool down before shutting the engine off. To engage the turbo timer feature: 1. With the vehicle running via the ignition key and your foot off of the brake pedal.

  • Page 10: Operating The 2 / 4 Hour Start Up Timer Mode

    Operating the 2 / 4 Hour Start Up Timer Mode The system has the ability to start the vehicle every 2 or 4 hours over a 48 hour period. This feature is especially useful in cold climates where the only means to keep the engine and engine fluids warm is to periodically start the engine.

  • Page 11: Manual Transmission Mode

    Manual Transmission Mode Remote starting a vehicle equipped with a manual transmission will require a 2 step safety sequence, Enter Ready Mode and Activate Ready Mode. The steps for entering and activating ready mode are programmable, see your installing dealer for details.

  • Page 12: Remote Start Valet Mode

    Remote Start Valet Mode Remote Start Valet Mode is used to disable the system from remote starting. To enter or exit remote start valet mode simply follow the 4 steps outlined below: 1. Push and hold the programming/valet button. 2. Cycle the ignition ON/OFF, ON/OFF, ON/OFF. 3.

  • Page 13: Additional 2 Way Oled Remote Control Features

    Additional 2 Way OLED Remote Control Feature Descriptions The following features / menus are activated through the 2 way remote control’s additional advanced level menus, refer to the activating 2 way remote control features section of this manual. AUX Menu Controls the 4 optional auxiliary outputs Battery Save Mode While in Battery Save Mode the 2 way remote control will NOT look for any...
  • Page 14 Fahrenheit / Celsius Display the current temperature in Fahrenheit or Celsius. Clock Set Adjust the clock displayed on the screen. Alarm Tones Selectable tones used for the alarm clock feature. Remote Start Tones Selectable tones used to indicate remote start activation. Remote Start Shutdown Tones Selectable tones used to indicate remote start has shutdown.

  • Page 15: Activating 1 Way Remote Control Features

    Activating 1 Way Remote Control Features Basic Remote Control Functions Advanced Level 1 Remote Control Functions Press and release 2 times to access level 1 menu functions, the AUX LED will turn on solid. The menu will time out after 3 seconds on inactivity. 2012 Audiovox Electronics Corporation.
  • Page 16 Advanced Level 2 Remote Control Functions Press and release 3 times to access level 2 menu functions, the AUX and Siren LED will turn on solid. The menu will time out after 3 seconds on inactivity. Advanced Level 3 Remote Control Functions Press and release 4 times to access level 3 menu functions, the AUX, Siren and Lock LED will turn on solid.

  • Page 17: Activating 2 Way Remote Control Features

    Activating 2 Way OLED Remote Control Features Basic Remote Control Functions 2 Way OLED Start / Transmitter - Basic Lock Unlock Trunk Function Operation Method Functions Lock Press and Release Unlock Press and Release Headlight Press and Hold (3 Sec) Trunk Press and Hold (3 Sec) Press and Release...
  • Page 18 Advanced Level 1 Remote Control Functions Press and release 2 times to access level 1 menu functions, AUX Controls will be displayed on the screen. The menu will time out after 10 seconds on inactivity. Level 1 - AUX Start / Press and release "F"...
  • Page 19 Advanced Level 2 Remote Control Functions Press and release 3 times to access level 2 menu functions, System Controls will be displayed on the screen. The menu will time out after 10 seconds on inactivity. Press and release "F" 3 times - Level 2 - System Start / Lock...
  • Page 20 Advanced Level 3 Remote Control Functions Press and release 4 times to access level 3 menu functions, Fuel Saver will be displayed on the screen. The menu will time out after 10 seconds on inactivity. Level 3 - Remote Start / Press and release "F"...

  • Page 21: Led And Siren/Horn Indications

    LED and Siren/Horn Indications LED Display Indications Function DISARMED SLOW FLASH ARMED FAST FLASH PASSIVE ARMING ON (SOLID) VALET MODE 1 FLASH... PAUSE ZONE 1 TRIGGER, SHOCK 2 FLASH... PAUSE ZONE 2 TRIGGER, TRUNK 3 FLASH... PAUSE ZONE 3 TRIGGER, DOOR 4 FLASH...

  • Page 22: Replacing Remote Control Batteries

    Replacing Remote Control Batteries CAETX91 1 Way 6 Button Remote Control: The battery (model CR2032) inside each remote control should last approximately 1 year under normal use. When the battery becomes weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim.

  • Page 23: Warranty Information

    Code Systems, Inc. Limited Lifetime Warranty Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as provided below) should this Product under normal use and conditions, be proven defective in material or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGI- NALLY INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for parts directly related to repairs of the defect(s).

  • Page 24: Customer Service

    Audiovox Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
