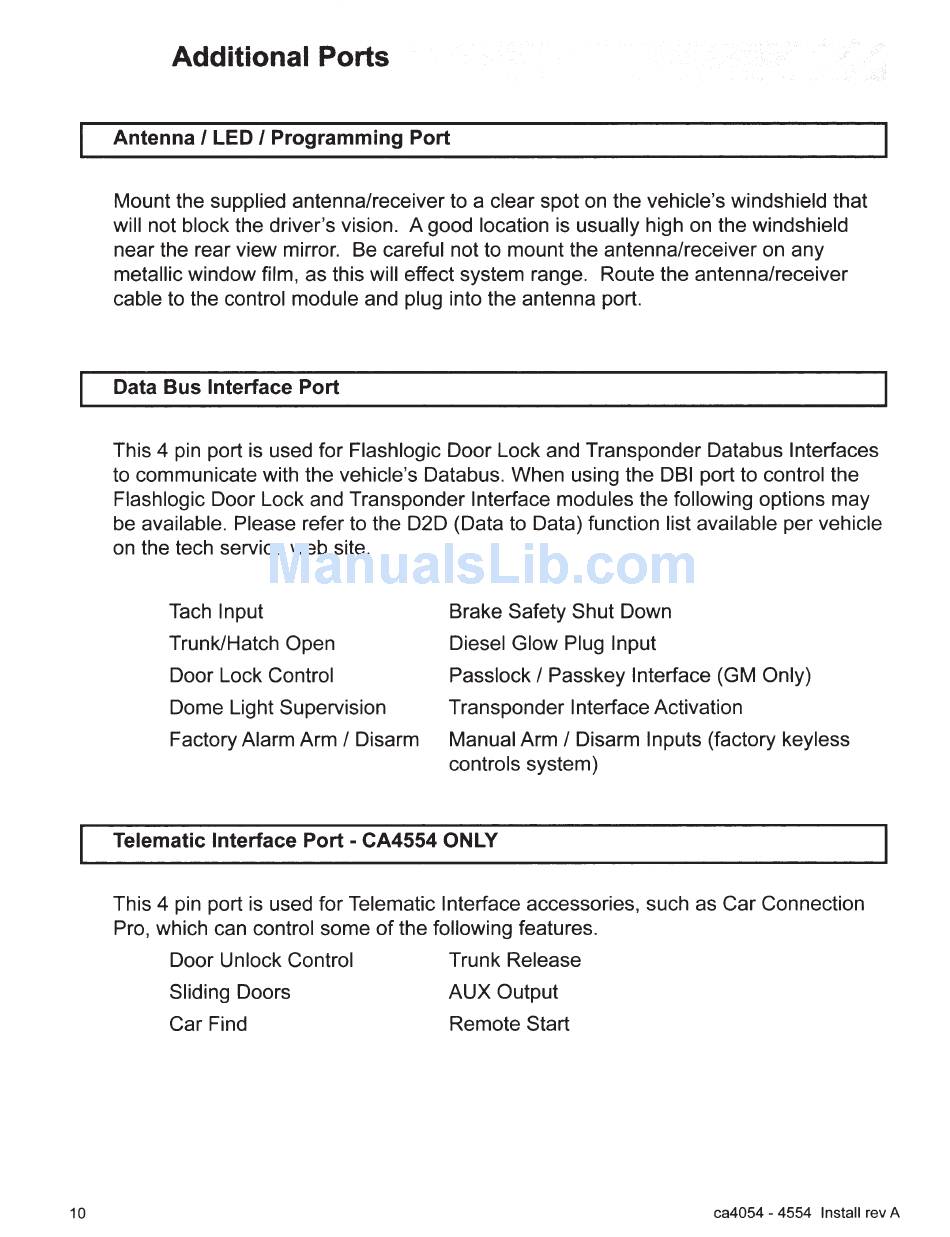

Additional Ports
Antenna I LED I Programming Port
Mount the supplied antenna/receiver to a clear spot on the vehicle's windshield that
will not block the driver's vision. A good location is usually high on the windshield
near the rear view mirror. Be careful not to mount the antenna/receiver on any
metallic window film, as this will effect system range. Route the antenna/receiver
cable to the control module and plug into the antenna port.
Data Bus Interface Port
This 4 pin port is used for Flashlogic Door Lock and Transponder Databus Interfaces
to communicate with the vehicle's Databus. When using the OBI port to control the
Flashlogic Door Lock and Transponder Interface modules the following options may
be available. Please refer to the 020 (Data to Data) function list available per vehicle
on the tech service web site.
Tach Input Brake Safety Shut Down
Trunk/Hatch Open Diesel Glow Plug Input
Door Lock Control
Passlock I Passkey Interface (GM Only)
Dome Light Supervision Transponder Interface Activation
Factory Alarm Arm I Disarm Manual Arm I Disarm Inputs (factory keyless
controls system)
Telematic Interface Port - CA4554 ONLY
This 4 pin port is used for Telematic Interface accessories, such as Car Connection
Pro, which can control some of the following features.
Door Unlock Control Trunk Release
Sliding Doors
Car Find
AUX Output
Remote Start
ca4054- 4554 Install rev A
