Reverse Polarity (5-Wire Door locks) and Reverse Polarity with 2-step Unlock
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock /
unlock switch.
Verification: These wires will rest at ground and register positive
voltage when the Lock and Unlock switches are activated.
Driver's Door Unlock: Locate the unlock motor wire directly from the actuator
inside the driver's door.
Verification: This wire will rest at ground and register positive voltage when
the driver's door is unlocked.

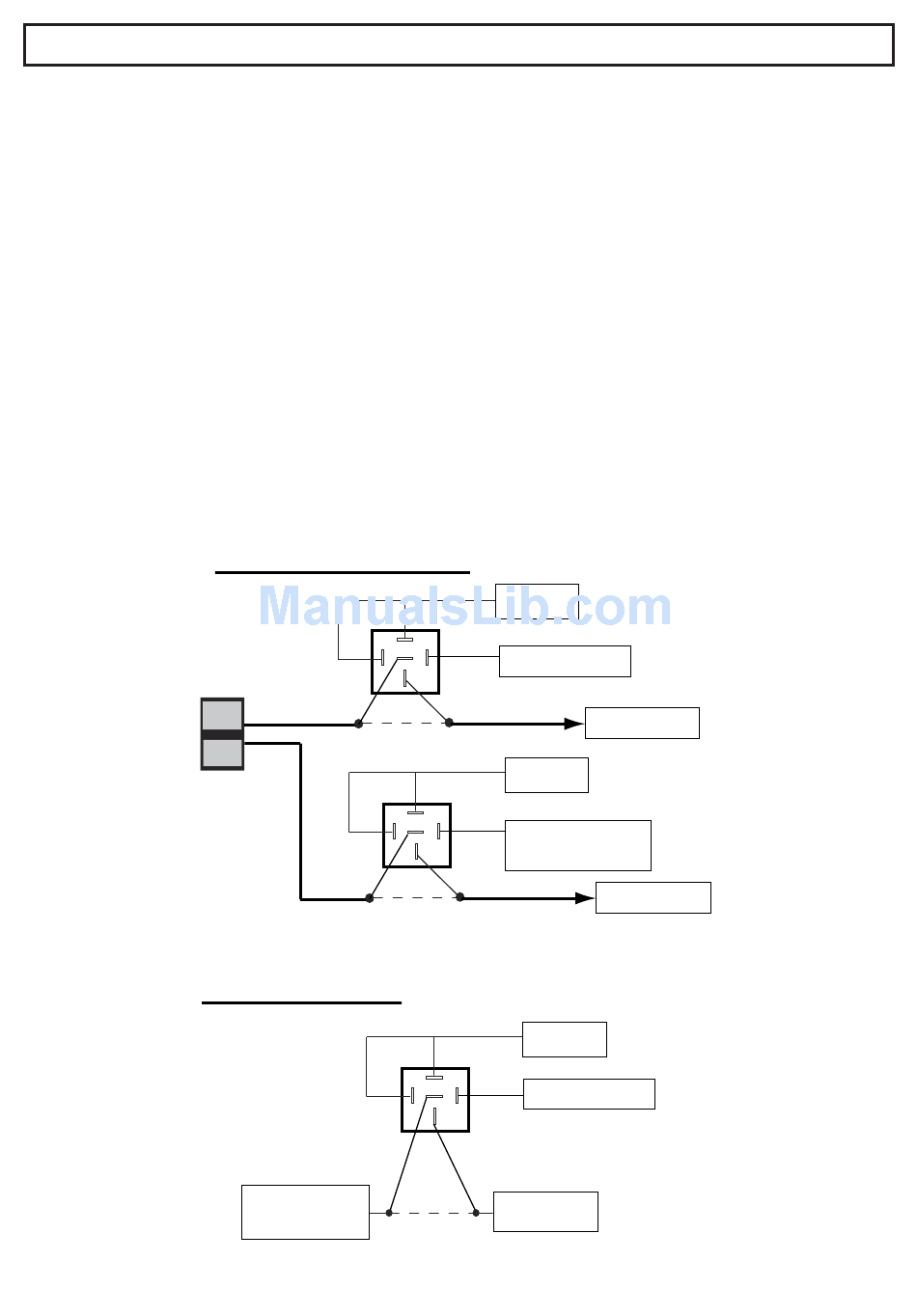

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram
below using (2) SPDT relays (not supplied).
NOTE: When adding the 2 step unlock feature the BLUE/GREEN 2nd door unlock
wire will be used to unlock all vehicle doors on the second press of unlock. An
additional SPDT relay (not supplied) is required. Connect the relays as shown in
the diagram below to unlock the driver's door on the first press of unlock.
2012 Audiovox Electronics Corporation. All rights reserved.
Reverse Polarity Locks:
86
Lock
Unlock
86
For 2 Step Unlock:
From Keyless Entry
Module or Door
Unlock Relay
Fused +12 Volt
Battery Souce
87
87a
GREEN (-) Lock Output
85
30
X
Cut
Fused +12 Volt
Battery Souce
87
87a
BLUE (-) Unlock Output or
85
BLUE/GREEN 2nd Unlock
30
Output for 2 Step Unlock
X
Cut
Fused +12 Volt
Battery Souce
87
87a
BLUE (-) Unlock Output
86 85
30
X
Drivers Door
Unlock Motor Wire
Cut
To Door Lock Motor
To Door Lock Motor
