SHB212 PICMG1.3 Half-Size SBC User's Manual

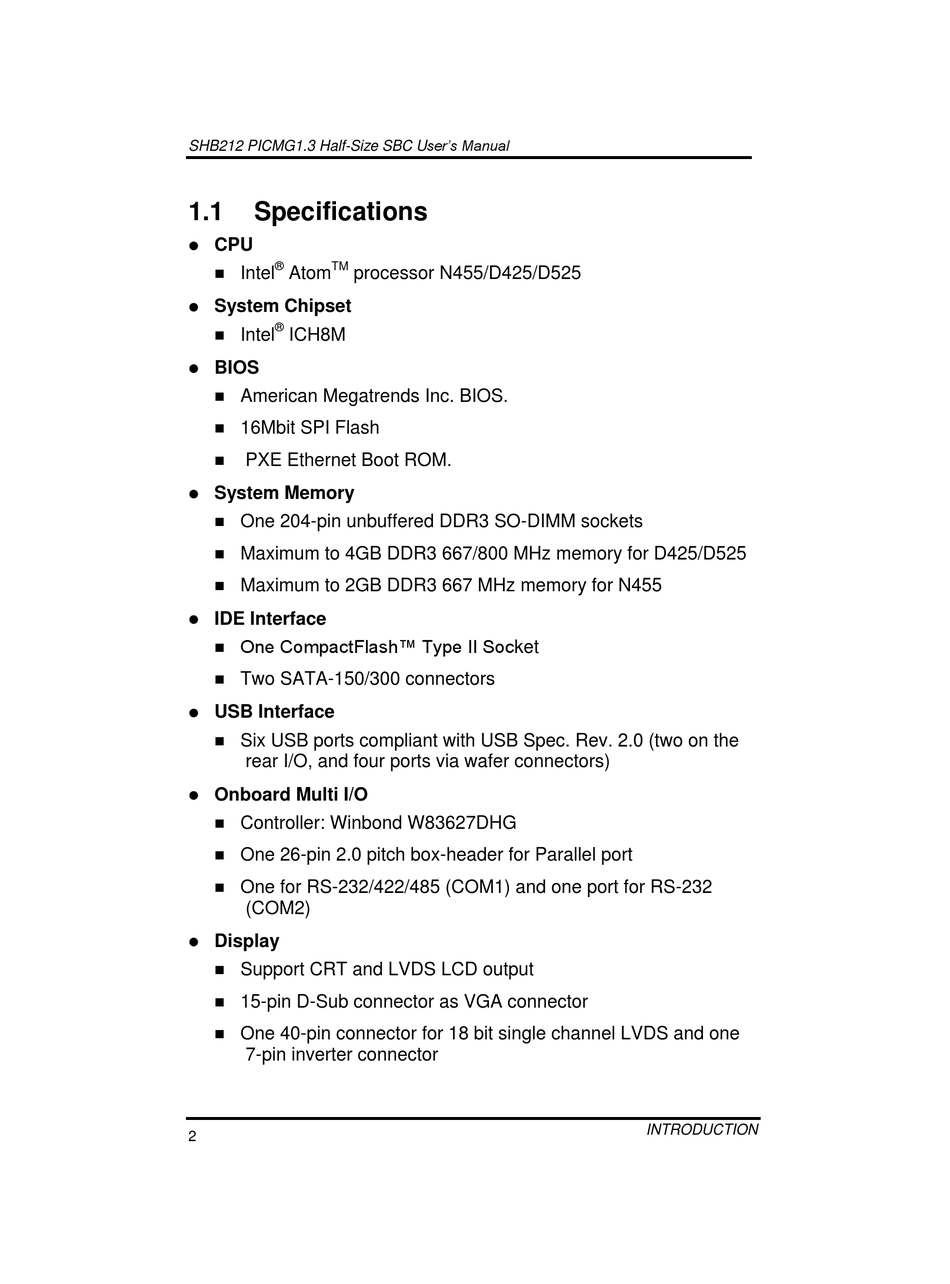

1.1

Specifications

 CPU
® TM
 Intel Atom processor N455/D425/D525
 System Chipset
®
 Intel ICH8M
 BIOS
 American Megatrends Inc. BIOS.
 16Mbit SPI Flash
 PXE Ethernet Boot ROM.
 System Memory
 One 204-pin unbuffered DDR3 SO-DIMM sockets
 Maximum to 4GB DDR3 667/800 MHz memory for D425/D525
 Maximum to 2GB DDR3 667 MHz memory for N455
 IDE Interface
One CompactFlash™ Type II Socket

 Two SATA-150/300 connectors
 USB Interface
 Six USB ports compliant with USB Spec. Rev. 2.0 (two on the
rear I/O, and four ports via wafer connectors)
 Onboard Multi I/O
 Controller: Winbond W83627DHG
 One 26-pin 2.0 pitch box-header for Parallel port
 One for RS-232/422/485 (COM1) and one port for RS-232
(COM2)
 Display
Support CRT and LVDS LCD output

 15-pin D-Sub connector as VGA connector
 One 40-pin connector for 18 bit single channel LVDS and one
7-pin inverter connector
2
INTRODUCTION
