CHAPTER 1
INTRODUCTION

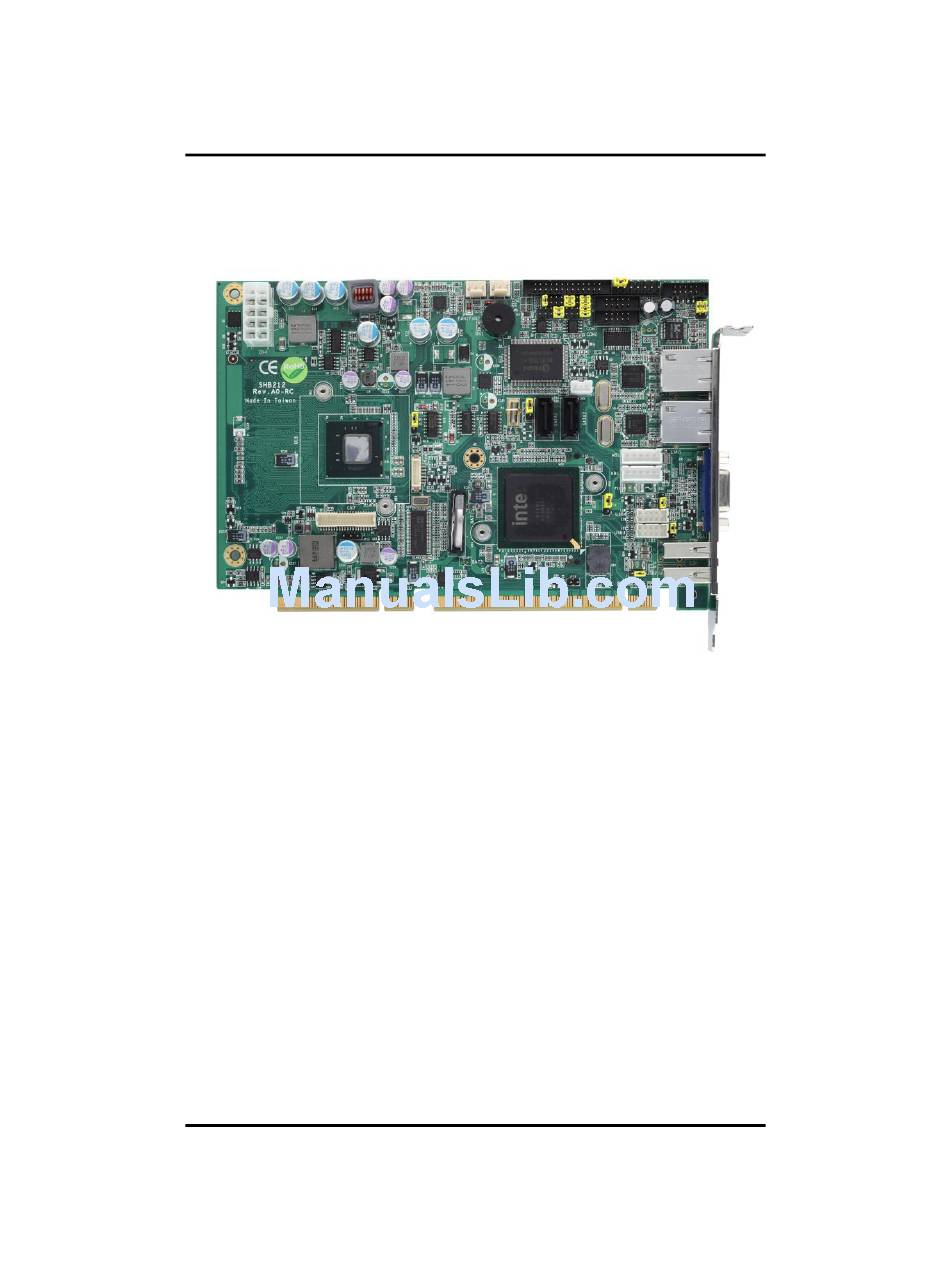

The SHB212 is a PICMG1.3 half-size Single Board Computer to
support Intel® Atom™ processor N455/D425/D525. The board
integrates chipset ICH8-M that delivers outstanding system
performance through high-band width interfaces, multiple I/O
functions for interactive applications and various embedded
computing solutions. There is one 204-pin unbuffered SO-DIMM
socket for single channel DDR3-667/800 MHz memory, maximum
memory capacity up to 4GB. (N455 is only for DDR3-667, maximum
memory capacity up to 2GB). It also features two Gigabit/Fast
Ethernet, two Serial ATA channels for total two Serial ATA hard drives
at maximum transfer rate up to 150/300MB/sec, six USB 2.0 high
speed compliant, built-in High Definition Audio Codec that can
achieve the best stability and reliability for industrial applications.
