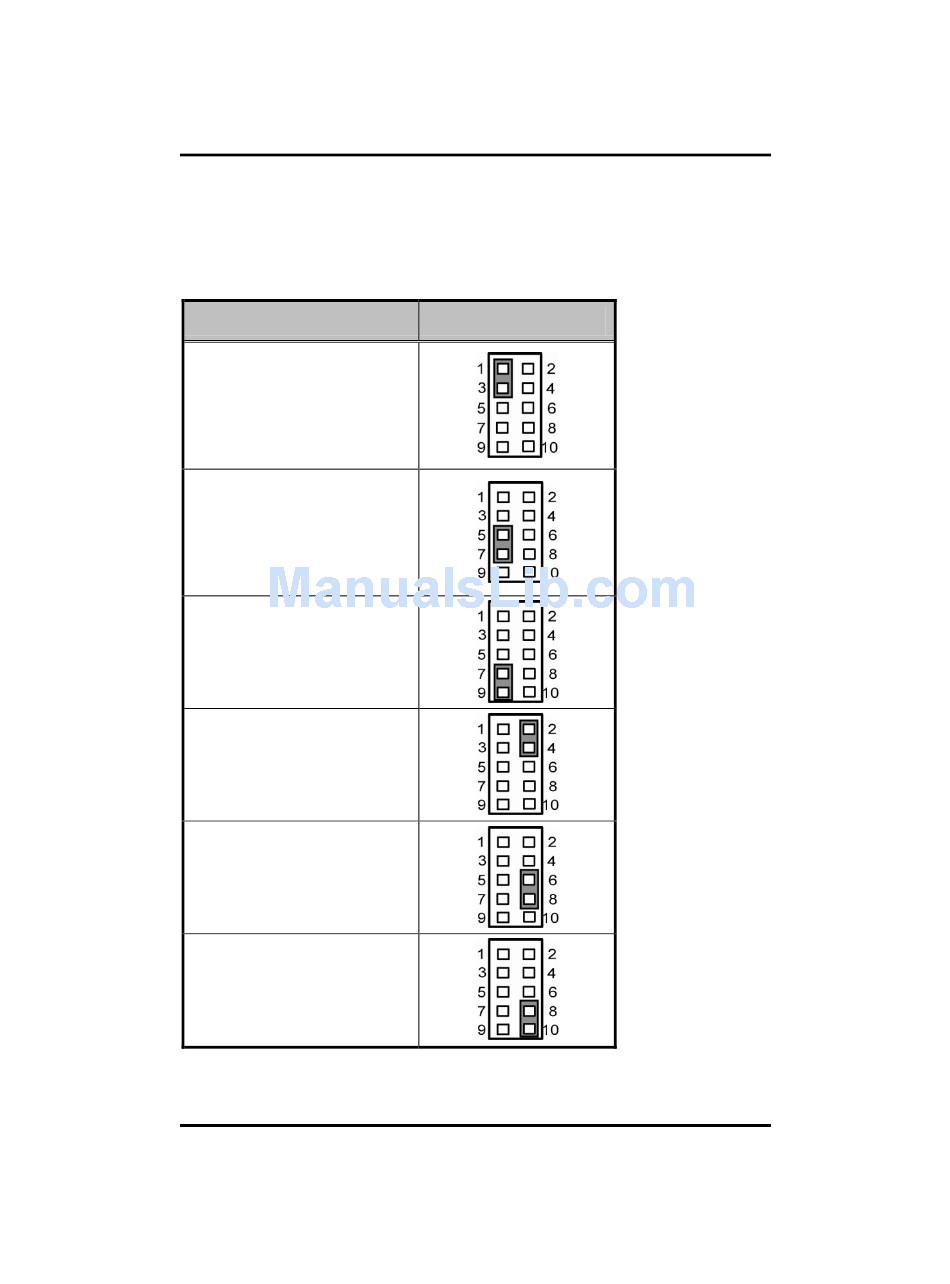

2.3.2 COM1 Data / Power Mode Selection (JP6)

The COM1 port have +5V or +12V level power capability on DCD and

+5V or +12V level power capability for RI, depending on the JP6

setting.

Function

COM1 Pin 1 is +12V level

COM1 Pin 1 is +5V level

COM1 Pin1 is DCD

(Default)

COM1 Pin 8 is +12V level

COM1 Pin 8 is +5V level

COM1 Pin 8 is RI

(Default)

JUMPERS AND CONNECTORS

SHB212 PICMG1.3 Half-Size SBC User's Manual

Jumper Setting
