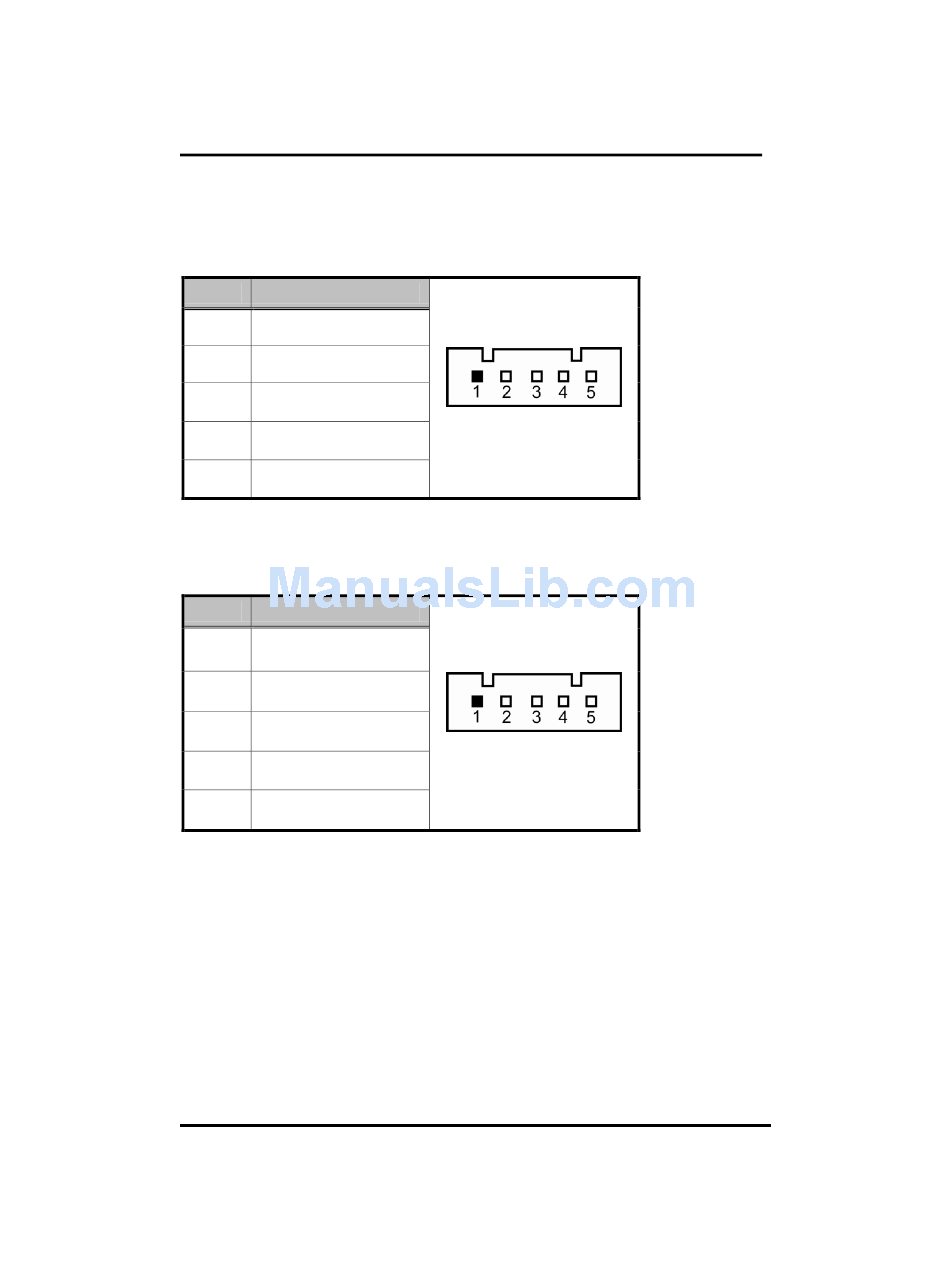

2.4.11 PS/2 Keyboard Internal Connector (KB1)
The board provides the Internal Keyboard interface with a 5-pin wafer
connector.
Pin
Signal
1
Keyboard Clock
2
Keyboard Data
3
N.C
4
GND
5
Power For K/B
2.4.12 PS/2 Mouse Internal Connector (MS1)
The board provides the Internal Mouse interface with a 5-pin wafer
connector.
Pin
Signal
1
Mouse Clock
2
Mouse Data
3
N.C
4
GND
5
Power For M/S
24
