Pin Signal
31 Channel A D1+
33 GND
35 Channel A D2-
37
Channel A D2+
39
GND

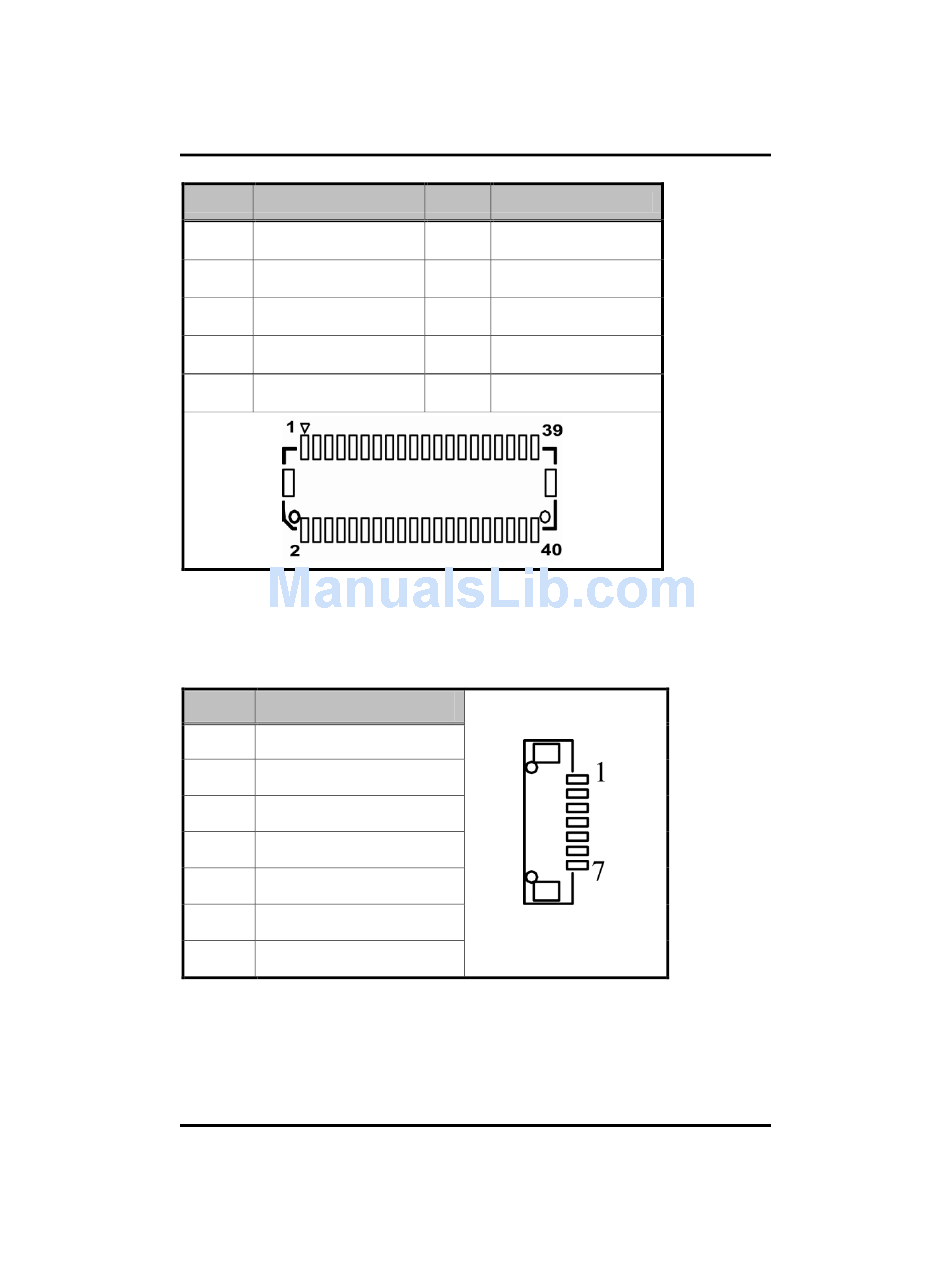

2.4.7 LVDS LCD Backlight Connector (CN7)

The 7-pin inverter connector on the SHB212 is with Hirose connector.
The matching connector is strongly recommended to use Hirose DF13-
7S-1.25C.
Pin Signal
1 12V(Only for LCD)
2 12V(Only for LCD)
3 5V(Only for LCD)
4 ENABLE
5 GND
6 GND
7 GND
