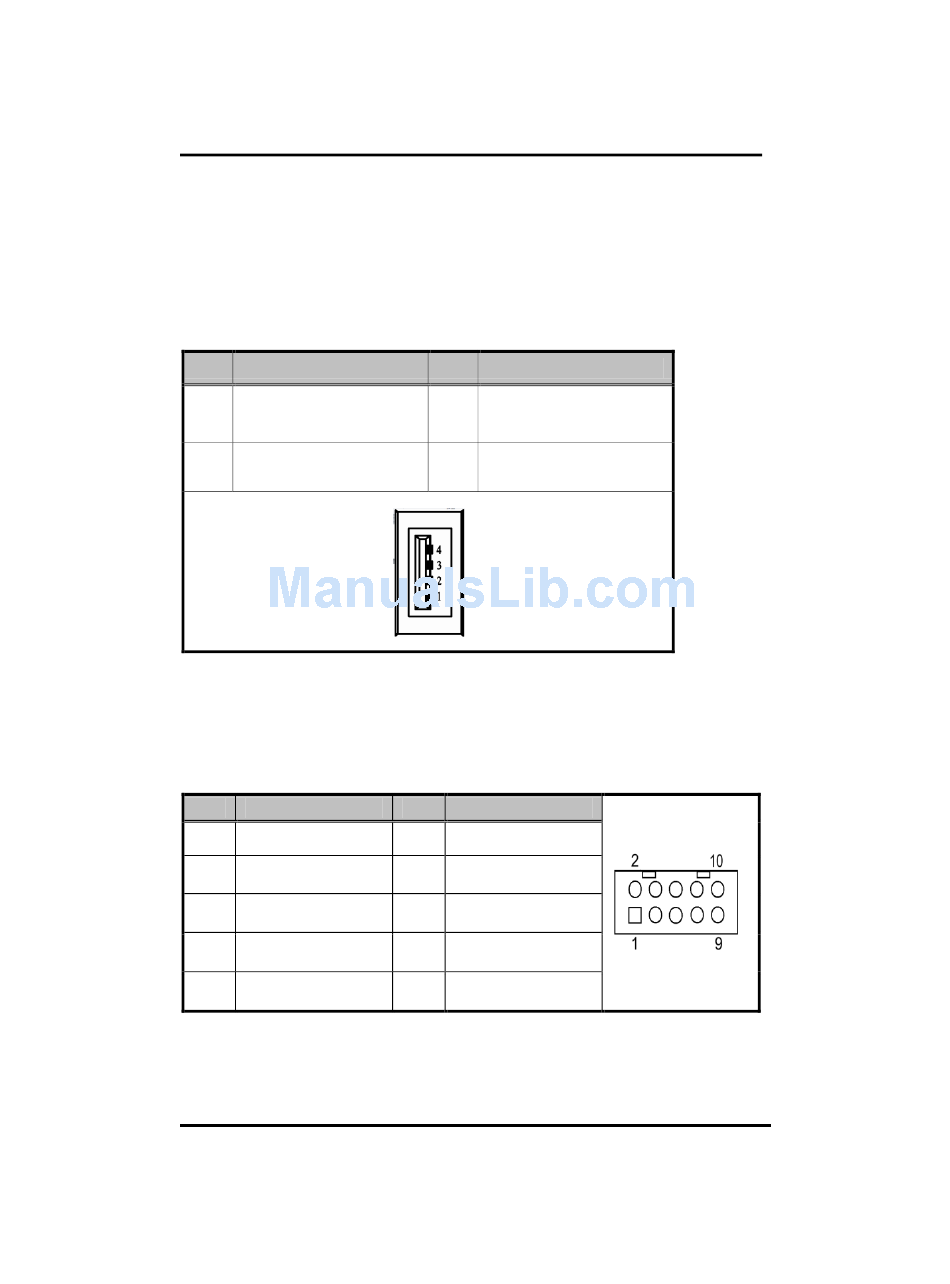

2.4.16 USB Connector (USB1, USB2)

The board features Universal Serial Bus (USB) connectors, compliant
with USB 2.0 (480Mbps) that can be adapted to any USB peripherals,
such as monitor, keyboard and mouse.
USB1, USB2 is a singal-deck USB port connector that consists of two
4-pin standard USB ports.
Pin Signal
1 USB POWER
3 USB DATA+

2.4.17 USB Connector (USB3, USB4)

The board features Universal Serial Bus (USB) connectors, compliant
with USB 2.0 (480Mbps) that can be adapted to any USB peripherals,
such as monitor, keyboard and mouse.
USB3 is a 10-pin 2.0pitch wafer connector.
Pin Signal
1 USB POWER
3 USB DATA(A)-
5 USB DATA(A)+
7 GND
9 GND
28
Pin Signal
2 USB DATA-
4 GND
Pin Signal
2 USB POWER
4 USB DATA(B)-
6 USB DATA(B)+
8 GND
10 GND
