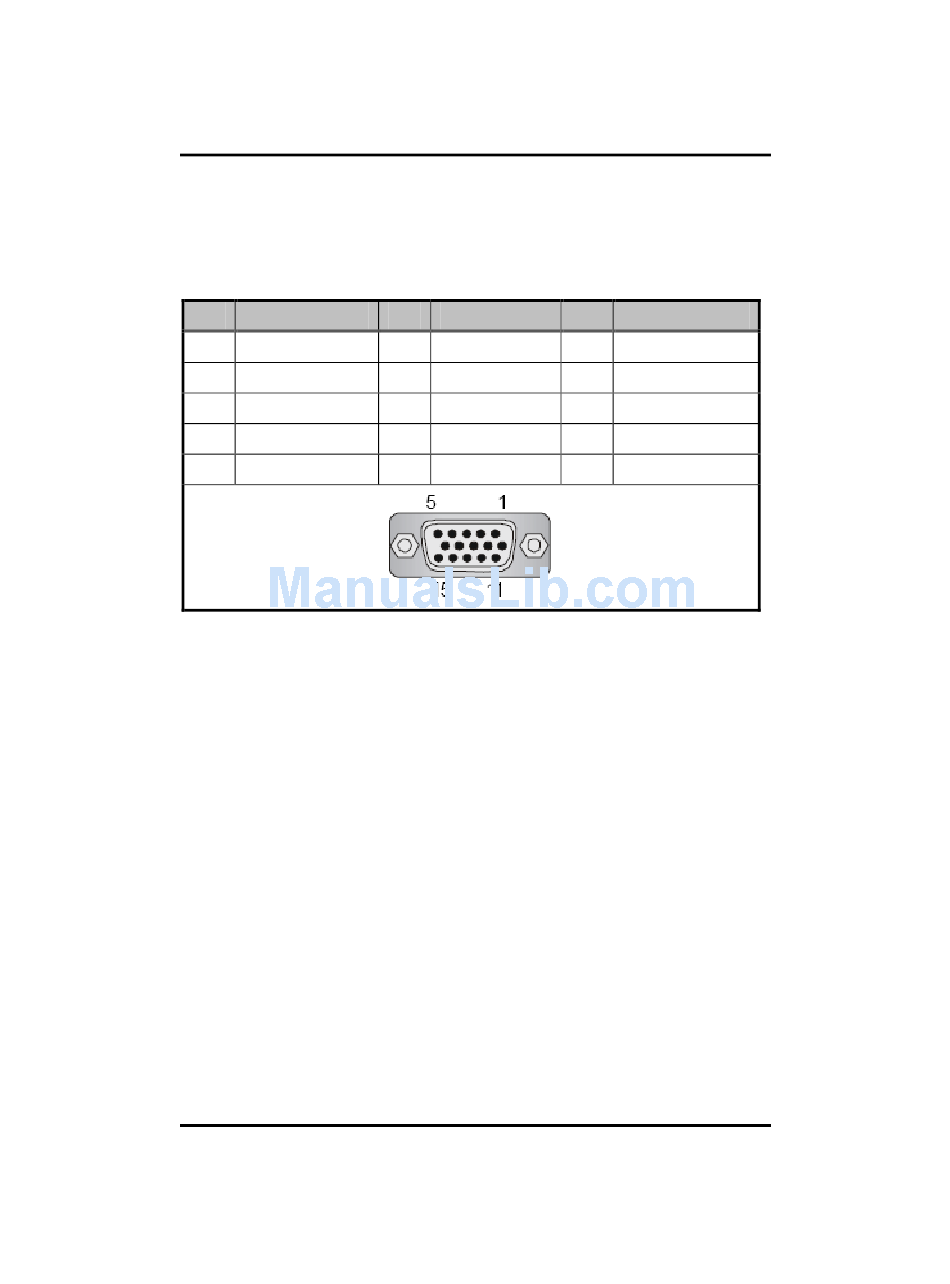

2.4.18 VGA Connector (VGA1)

VGA1 is a slim type 15-pin D-Sub connector which is common for CRT
VGA display. The interface configuration can be configured via the
software utility.
Pin Signal
1 RED
4 N.C
7 GND
10 GND
13 Horizontalync
JUMPERS AND CONNECTORS
SHB212 PICMG1.3 Half-Size SBC User's Manual
Pin Signal
2 GREEN
5 GND
8 GND
11 N.C
14 Vertical Sync
Pin Signal
3 BLUE
6 DETECT
9 Power
12 DDC DATA
15 DDC CLOCK
