Summary of Contents for Barco RLM-W14

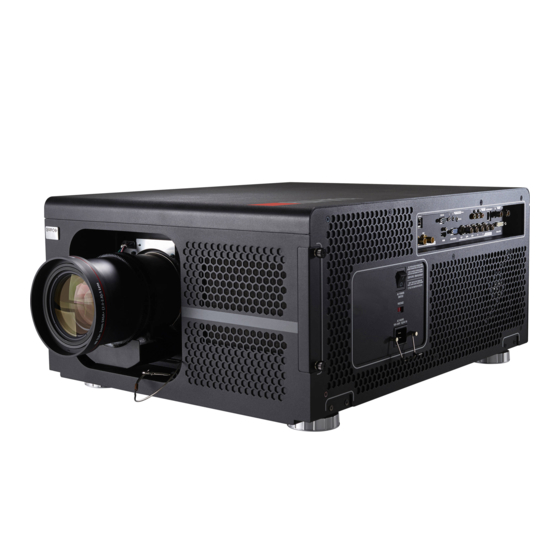

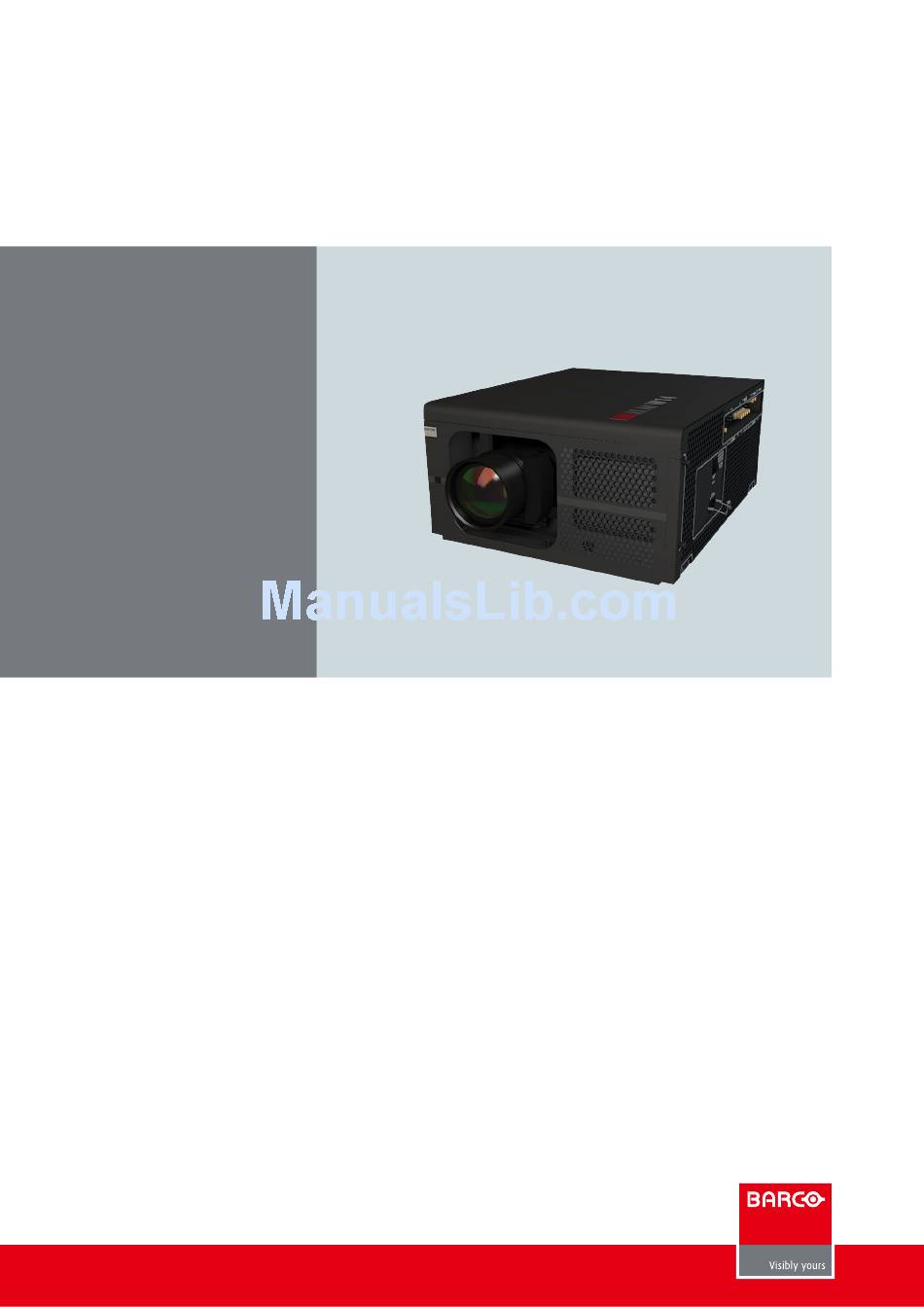

  • Page 1 RLM-W14 User manual...
  • Page 2 Barco nv Projection Division Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.883.86 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in China Revision: 02...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY 1.1 General considerations 1.2 Important safety instructions 2. GENERAL 2.1 Installation requirements 2.2 Unpacking the projector 2.3 Initial inspection 2.4 Projector configurations 2.5 Projector air inlets and outlets 2.6 Installation process overview 3. PHYSICAL INSTALLATION 3.1 Remote control unit (RCU) 3.2 Lenses 3.3 Connecting the projector with the power net...
  • Page 5 TABLE OF CONTENTS 5. GETTING STARTED 5.1 RCU & Local keypad 5.2 Power on projector 5.3 Switching to standby 5.4 Power off projector 5.5 Range of effective remote control signal reception 5.6 Source selection 5.7 Changing OSD language 5.8 Adjusting the lens by horizontal and vertical lens shift 6.
  • Page 6 TABLE OF CONTENTS 8. IMAGE 8.1 Image menu overview 8.2 Contrast 8.3 Brightness 8.4 Sharpness 8.5 Noise Reduction 8.6 Color Temperature 8.7 Input Balance 8.8 Aspect Ratio 8.9 Timings 8.10 Auto Image 9. LAYOUT 9.1 Layout menu overview 9.2 Zoom 9.3 Main Select 9.4 PIP Select 9.5 PIP Position...
  • Page 7 TABLE OF CONTENTS 11. ALIGNMENT 11.1 Alignment menu overview 11.2 Adjusting screen orientation 11.3 Rear Projection 11.4 Ceiling Mode 11.5 Lens Control 11.6 Lens To Midposition 11.7 Lens Calibration 11.8 Lens Memory 11.10 Keystone 11.11 Dynamic Contrast 11.12 Gamma 11.13 Internal Patterns Color Space 11.14 Color Space...
  • Page 8 TABLE OF CONTENTS 13. SERVICE 13.1 Service menu overview 13.2 Service message of the projector 13.3 Lamp Hour Reset 13.4 Blue Only 13.4 Factory Reset 14. MAINTENANCE 14.1 Lamp Replacement 14.2 Replace the filter (for inlet Ventilation) 14.3 Clean the dust filter(for outlet Ventilation) 14.4 Cleaning the lens 14.5 Cleaning the exterior of the projector 14.6 Simple troubleshooting...

  • Page 9: Safety

    General safety instructions • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 10: Important Safety Instructions

    1.SAFETY Users definition Throughout this manual, the term SERVICE PERSONNEL refers to persons having appropriate technical training and experience necessary to be knowledgeable of potential hazards to which they are exposed (including, but not limited to HIGH VOLTAGE ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons.
  • Page 11 • Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 12 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part.

  • Page 13: General

    • Projector air inlets and outlets • Installation process overview ARNING: Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guar- antee. Observing the specification mentioned in this chapter is critical for projector performance.

  • Page 14: Projector Weight

    2.General Main Power requirements The RLM W14 projector operates from a nominal mono phase power net with a separate earth ground PE. Projector Power requirements RLM W14 AC INPUT 100-240V 9.2A 50/60Hz The power cord required to connect the projector with the power net is delivered with the projector. Projector weight Do not underestimate the weight of the RLM W14 projector.

  • Page 15: Initial Inspection

    Save all packing material until the inspection is completed. If damage is found, file claim with carrier immediately. The Barco Sales and Service office should be notified as soon as possible.

  • Page 16: Projector Configurations

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified as soon as possible if this is not the case.

  • Page 17: Positioning The Projector

    2.General Positioning the projector SCREEN FLOOR Positioning projector The projector should be installed at right angles (horizontally and vertically) to the screen at a distance PD. Note the distance (A) between lens centre and table surface is slightly variable. This distance (A) is nominal 14 cm in case all feet are turned in completely and the vertical lens shift is set to zero (0).

  • Page 18: Projector Air Inlets And Outlets

    2.General It is mechanical possible to shift outside the recommended field of view, but it will result in a decline of image quality depending on the used lens and the zoom position of the used lens. Furthermore, shifting too much in both directions will result in a blurred image corner. Best image quality is projected in the On-Axis configuration.

  • Page 19: Installation Process Overview

    2.General 2.6 Installation process overview Quick setup The following steps describe briefly how to setup your RLM W14 projector in a table mount front projection. Note that each step refers to a corresponding procedure, which is more detailed and illustrated. 1.

  • Page 20: Physical Installation

    3.Physical Installation 3. PHYSICAL INSTALLATION About this projector This chapter describes how the mechanical set up of the projector has to be done and how to realize the electrical connections. Overview • Remote control unit (RCU) • Lenses • Connecting the projector with the power net • Alignment of a table mounted projector • Mounting the ceiling mount 3.1 Remote control unit (RCU)

  • Page 21: Remote Control Overview

    3.Physical Installation Remote Control overview INPUT IR LED’S ASPECT MENU RATIO AUTO IMAGE PAUSE TEXT SHARPN PHASE COLOR TINT SWAP ADDRESS Wired remoted connect to IR Ext. Basic Remote Command RCU action Remark result start the projector press "on" turn off the projector press "off"...
  • Page 22 3.Physical Installation Basic Remote Command RCU action Remark result return to previous menu without press "menu" MENU selecting move through menu press "arrow keys" The enter button selects a item when in the menu. select button press "enter" When not in the menu the enter button will activate the lens adjust function.

  • Page 23: Lenses

    3.Physical Installation 3.2 Lenses Available lenses for the RLM W14 projector projector • R9862000-TLD+ (0.73:1) • R9840775-TLD+ (1.2:1) • R9862010-TLD+ (1.5 - 2.0:1) • R9862020-TLD+ (2.0 - 2.8:1) • R9862030-TLD+ (2.8 - 4.5:1) • R9862040-TLD+ (4.5 - 7:5:1) • R9829997-TLD+ (7.5 - 11.2) • R9862005-TLD+ Ultra (1.25-1.6) Projection lenses are optional accessories.
  • Page 24 3.Physical Installation 2. Follow below image to install the lens. Click Carefully align the connectors while installing the lens. Don’t forget to attach the hook at the lensholder How to remove the lens 1. Follow the drawing to press the button 2.
  • Page 25 3.Physical Installation Lens zoom Press the button on the remote control or MENU on the projector panel, Choose OSD -> LENS ZOOM , then use the buttons to adjust the size of the image that is projected onto the screen. Original image size Zoom out Zoom in...

  • Page 26: Connecting The Projector With The Power Net

    3.Physical Installation • Moving the lens horizontally The distance of horizontal lens movement is 30% of half the screen width in both directions. For instance, if you are using a 80" × 50" screen, you will be able to move the image left or right by no more than 12". This illustration shows normal horizontal lens shift without the use of special specification lens or projector.
  • Page 27 3.Physical Installation For Europe and Korea For USA For China aution: Ensure that the power net meets the power requirements of the projector. ARNING: Do not attempt operation if the AC supply and cord are not within the specified voltage and power range.

  • Page 28: Alignment Of A Table Mounted Projector

    3.Physical Installation 3.4 Alignment of a table mounted projector How to align the projector 1. Place the projector in the desired location. Take into account the zoom range of the used lens and the size of the screen. 2. Project one of the internal hatch patterns on the screen. 3.

  • Page 29: Mounting The Ceiling Mount

    3.Physical Installation 3.5 Mounting the Ceiling mount Necessary tools Open wrench 17 mm How to mount 1. Turn the projector upside down. 2. Adjustment knob to the back of the projector. Make sure that the mounting holes matches the holes in the projector. 3.

  • Page 30: Projector Parts And Functions

    4. Input & Communication 4. PROJECTOR PARTS AND FUNCTIONS Overview • Projector front view • Projector Rear view • Input and Communication • Status lights of LED • Connecting the projector to other devices 4.1 Projector front view Ventilation slot The hot air generated inside the projector is dispersed through the...

  • Page 31: Input And Communication

    4. Input & Communication 4.3 Input and Communication 200mA . HDBaseT Supports Full HD uncompressed video transmission from image devices compatible with HDBaseT. Audio and network are not supported. For network connection refer to Page 24 "6. 10/100 BASE-T" 2. RS232 RS232 input The communication interface of the RLM W14 projector supports RS232 serial communication.
  • Page 32 4. Input & Communication 4. IR EXT. Receives input signal from compatible Niles or Xantech IR repeater systems. 5. YUV1 Standard and high definition (480i/480p/576i/576p/720p/1080i/1080p) component input, connects to DVD/HD-DVD/BD player, HD set-top-box or other SD/HD input source.Also connects to RGB input from RGBS input source. 6.

  • Page 33: Status Lights Of Led

    4. Input & Communication 4.4 Status lights of LED MENU ERROR STBY STBY INPUTS OFF/STAND BY The LED indicator shows solid RED when the projector is off and at standby mode. The LED indicator is off when the projector is on. ERROR The LED indicator is blinking at a 0.25 second interval when there is error occurred in projector.

  • Page 34: Connecting The Projector To Devices

    4. Input & Communication 4.5 Connecting the projector to devices HDBaseT Supports Full HD uncompressed video transmission from image devices compatible with HDBaseT. Audio and network are not supported. For network connection refer to Page 24 "6. 10/100 BASE-T" Hi-Def Source 200mA HDBaseT Transmitter...

  • Page 35: V Trigger Connection

    4. Input & Communication 12V Trigger connection If your home theatre system includes a projector screen, screen cover or other 12V Trigger equipment, please connect such device/equipment to the projector’s 12V Trigger output as illustrated.After you have done so, Your screen will lower automatically whenever you turn on your projector for your convenience.
  • Page 36 4. Input & Communication VGA connection Connect your PC or other devices with VGAoutput to the VGAinput connectors on the projector to be used as the source of image input. 200mA Desk Top or Notebook AC POWER AC MAINS SWITCH 100-240 Volts 50/60Hz B/Pb...

  • Page 37: Ir Input Connection

    4. Input & Communication IR INPUT connection If the projector is unable to pick up the IR signals from the remote controle due to distance or obstacles (i.e. wall or cabinet doors), you can connect an external IR repeater to the projector’s IR INPUT jack to extend the effective signal reception range. IR sensor Remote control IR repeater...
  • Page 38 4. Input & Communication 10/100 BASE-T Connects the projector to your PC via network to have direct control of the projector from the PC. Desk Top or Notebook Stereo DVI Connect the Stereo DVI to a stereo 3D source - it is usually a computer with 3D Graphics card and 3D applications. IR Emitter 3D Glasses EMITTER L/R signals...
  • Page 39 4. Input & Communication 3D with a Barco RLM W14 1. You need: RLM W12 + ImagePRO II with option "dual output card. 3rd party IR Transmitter and 3D glasses. 2. Connection: Connect the DVI out ImagePRO II to DVI connector (3D) of RLM W14.

  • Page 40: Getting Started

    5. Getting Started 5. GETTING STARTED Overview • RCU & Local keypad • Power on projector • Switching to standby • Power off projector • Range of effective remote control signal reception • Source selection • Changing OSD language • Adjusting the lens by horizontal and vertical lens shift 5.1 RCU &...

  • Page 41: Switching To Standby

    5. Getting Started 5.3 Switching to standby How to switch to standby 1. Press Power button on keypad or remote control for 3 seconds for projector to go into standby. 2. Wait until the projector completes the cooling process – at least 3~5 minutes. 3.

  • Page 42: Source Selection

    5. Getting Started 5.6 Source selection Press No. 1-5 on the remote control to activate the input source that define in control OSD Or press on the keypad to select the input source. 5.7 Changing OSD language By factory default, the OSD menu of the projector is displayed in English. If you want to change default language. Press the MENU on Remote control or keypad, then go to Control ->...

  • Page 43: Advanced Osd Menu

    6. Introduction the Advanced OSD menu 6. ADVANCED OSD MENU Overview The Advanced menu is the further function to control and align the projector, the following functions can be done: • Advanced OSD introduction. • Input setup: different Input settings can be adjusted such as specific input slot settings, locking, native resolution and no signal settings.

  • Page 44: How To Navigate In The Advanced Menu Structure

    6. Introduction the Advanced OSD menu 6.1 How to navigate in the Advanced menu structure? Once in the Advanced menu structure, use the key on the remote control or on the local keypad to scroll through the items in the displayed menu. The selected item will get a background color. To activate a selected submenu or function, press on the remote or ENTER on the projector.

  • Page 45: Input

    7.Input 7. INPUT Overview • Input menu overview • Input Selection • Input Locking • Auto Power Off • Auto Power On • No Signal • Auto Image Adjust 7.1 Input menu overview HDMI HDBaseT RGB D-15 Input Selection YUV1 RGBHV/YUV2 SDI/HD SDI/3G Stereo DVI...

  • Page 46: Input Selection

    7.Input 7.2 Input Selection Use this function to specify the source of image connected to the rear of the projector. For instance, if you have connected your PC as the video input source, you can choose RGB D-15(RGB-HV/SOG) to be the input for image projection. Options of HDMI1, HDMI2, RGB D-15(RGB-HV/SOG), YUV1(RGB-S), YUV2(RGBHV/ input available on the projector include: YUV2), SDI/HD SDI/3G, Stereo DVI.

  • Page 47: Auto Power Off

    7.Input 7.5 Auto Power Off The default value is OFF. If you set it to ON, the projector will automatically shut down after 20 minutes without input signal. 7.6 Auto Power ON The default value is Off.If you set it to ON, the projector will automatically start up when it is connected to AC power. If you plug the projector’s power cord into an AC socket with a switch, you can use this function to start up the projector using the socket’s switch instead of the remote.

  • Page 48: Image

    8.Image 8. IMAGE Overview • Image menu overview • Contrast • Brightness • Sharpness • Noise Reduction • Color Temperature • Input Balance • Aspect Ratio • Timings • Auto Image 8.1 Image menu overview Contrast 0~200 Brightness 0~200 Sharpness 0~200 Noise Reduction 0~200 3200K...

  • Page 49: Contrast

    8.Image RLM W14 8.2 Contrast The contrast function is used to adjust the contrast between the light and the dark areas of the displayed image. It applies a gain to the red, green and blue signals. Contrast adjustment can be done with the Contrast key on the RCU or via the menu structure. The following image illustrates the results of direct contrast adjustment using a random image: Lowered contrast Original image...

  • Page 50: Sharpness

    8.Image 8.4 Sharpness The adjustment of sharpness primarily changes the value of high frequency detail. You can connect the projector to an external image source to display an image resembling the one shown below to adjust the image sharpness. The following image illustrates the results of direct sharpness adjustment using a random image: Reduced sharpness Original image Enhancedsharpness...

  • Page 51: Input Balance

    8.Image 8.7 Input Balance Unbalanced color signals When transporting signals, there is always a risk of deterioration of the information contained in the signals. In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 9-29 , we are quite sure that the amplitude of these color signals is subject to alterations.

  • Page 52: Adjusting The Input Balance

    8.Image Black level setting : brightness White level setting : contrast The same absolute black and white level for the three colors allows the same reference for Brightness and Contrast control of the picture ! These two references also set the range in which the ADC will work for that particular source (this explains also why each input balance setting is linked to a particular source and thus saved in the image file).

  • Page 53: White Balance

    8.Image Black Balance Offset This function involves the adjustment of the following red, green and blue offsets. The text itself is decorative. • Red Offset Press to adjust the offset of red in dark scales. • Green Offset Press to adjust the offset of green in dark scales. • Blue Offset Press to adjust the offset of blue in dark scales.

  • Page 54: Timings

    8.Image Native input Output aspect ratio Output aspect ratio Output aspect ratio 16:9 Output aspect ratio Output aspect ratio Output aspect ratio Output aspect ratio 1.88 2.35 Letterbox Native Cropped portion of the image that when used for commercial purposes, including: projection of image in movie theatres, hotels, cafeteria and other public venues, compression or extension of image achieved through the change of aspect ratio may constitute copyright infringement to the rightful owner of the image.

  • Page 55: Auto Image

    8.Image H Start to adjust the projected image’s horizontal position. If the projected image is not at the center of the screen (i.e. shifted to right or left) and ends up being cropped, use this function to adjust the image’s horizontal position.The following image is an example of test image from an external signal source: Native picture...

  • Page 56: Layout

    9.Layout 9. LAYOUT Overview • Layout menu overview • Zoom • Main Select • PIP Select • PIP Position • PIP 9.1 Layout menu overview Zoom Crop Zoom HDMI HDBaseT RGB D-15 Main Select YUV1 RGBHV/YUV2 SDI/HD SDI/3G Stereo DVI HDMI LAYOUT HDBaseT...

  • Page 57: Zoom

    9.Layout 9.2 Zoom Due to the fact that some consumers may still be using older television systems, some TV programs may not display the edges of the image. Use this function to hide the image edge by choosing one of the following three options: • Off Setting it to off makes no change to the projected image.

  • Page 58: Pip Select

    9.Layout 9.4 PIP Select Use this function to select the source for the sub window. Main picture Sub picture You can choose from HDMI1, HDMI2, VGA, YUV1, RGBHV/YUV2. PiP stands for "Picture in Picture" and allows to display multiple windows containing each of them an image.

  • Page 59: Lamp

    10.Lamp 10. LAMP Overview • Lamp menu overview • Lamps Single and Dual setup • High Altitue Mode setup • Power saving setup • Lamp1 and Lamp2 on or off setup • Lamp1 and Lamp2 Run Time display • Lamp Performance 10.1 Lamp menu overview Mode Normal...

  • Page 60: Mode

    10.Lamp 10.2 Mode This chapter covers information on the projector lamp. Mode • ECO When set to Eco mode, the wattage of the lamp will be at 360W. If the surrounding environment is sufficiently dark or if you do not require intense brightness, you can set the lamp to Eco mode to prolong its usage life. • Normal When set to Normal mode, the wattage of the lamp will be at 465W.

  • Page 61: High Altitude Mode

    10.Lamp 10.4 High Altitude Mode Use this function to control the projector's cooling fan. You can set it to Off or On. The default setting is Off. Under normal circumstances, the projector will operate normally with this function set to Off. By default, the projector will detect the temperature of the surrounding environment to regulate the speed of the cooling fan.

  • Page 62: Alignment

    11.Alignment 11. ALIGNMENT Overview • Alignment menu overview • Adjusting screen orientation(Rear Projection, Ceiling Mode on of off setup) • Lens Control for zoom, focus and V/H Shift setup • Keystone adjustment • Dynamic Contrast setup • Gammy adjustment • Internal Patterns setup • Custom Color Space select • Setup lens to midposition 11.1 Alignment menu overview...

  • Page 63: Adjusting Screen Orientation

    11.Alignment 11.2 Adjusting screen orientation By default, the projector is configured for “frontal projection - desktop installation”. If you choose to install your projector in other setups, be sure to adjust the screen orientation to achieve the correct projection mode. Front projection - ceiling mode Press MENU...

  • Page 64: Rear Projection

    11.Alignment Rear projection - ceiling mode Press MENU  Advanced ALIGNMENT  Rear Projection and choose ON; press MENU once more  Advanced ALIGNMENT  Ceiling Mode and choose ON Correct Picture canoe   11.3 Rear Projection The default of the Rear Projection setting is Off. See 11.2 Adjusting screen orientation, refer to page 55: 11.2 Adjusting screen orientation 11.4 Ceiling Mode...

  • Page 65: Lens Memory

    11.Alignment 11.8 Lens Memory There are three functions available after adjusting zoom, focus and lens shift position. Save Memory it is used to store current zoom, focus, and lens shift position settings into the designated memory among 3 memories. Users can repeat the above procedure to store up to 3 lens memories.

  • Page 66: Gamma

    11.Alignment 11.12 Gamma Different Gamma settings will affect viewers' perception of the image. Generally speaking, for images that are darker, it is recommended that Gamma be set higher to yield better image quality in darker regions by sacrificing details in brighter areas.

  • Page 67: Wrap

    11.Alignment 11.16 Wrap Warp The function provides distortion correction on projected images. Horizontal Keystone Press  to correct horizontal keystone due to projection angle. Please refer to “Page 16: 7. Correcting keystone caused by projection angle ". Vertical Keystone Press  to correct Vertical keystone due to projection angle. Please refer to " Page 16 : 7. Correcting keystone caused by projection angle".
  • Page 68 11.Alignment Top Left Corner Press  to correct top left corner image bias. —> Press  to correct Top left corner image bias to correct image. Top Right Corner Press  to correct top right corner image bias. —> Press  to correct Top Right corner image bias to correct image.

  • Page 69: Blanking

    11.Alignment 11.17 Blanking Press  on the remote control to adjust the top blanking area on the projected image  Bottom Press  on the remote control to adjust the Bottom blanking area on the projected image Left Press  on the remote control to adjust the Left blanking area on the projected image Right Use left blanking...
  • Page 70 11.Alignment for black level adjustment a black image needs to be connected on the 2 projectors. Zone B will have the sum of the blacks of the 2 projectors. Set the adjustment line of the black level to the position where the non active DMD's of the right projector ends.
  • Page 71 11.Alignment Note1: Please note that the following allowable warp, blanking and ScenergiX combination based on the underlying chip specification Note2: ScenergiX / 4 corner combination is available when black level is not adjusted. Note3: Blend along corners is available when black level is not adjusted. ScenergiX White Level...

  • Page 72: Control

    12.Control 12. CONTROL Overview • Control menu overview • ECO Network Power setup • Network address setup • OSD Menu position • Projector start up display Logo or not • Projector start up Chime on or off • Setup the trigger • Setup the projector auto select the source or not • Setup the Advanced menu's language 12.1 Control menu overview...

  • Page 73: Ir Address

    12.Control 12.2 IR Address Use this function to configure the projector’s IR code receive commands from the remote control. The default value is 1.If you have other equipment in your home that could pick up the command from the projector’s remote control, it is recommended that you set the remote control code to 2.

  • Page 74: Subnet Mask

    12.Control IP Address Internet Protocol. The network layer of TCP/IP. Required for communication with the internet. This for subnet and gateway hdcp. Subnet mask A number that is used to identify a subnetwork so that IP addresses can be shared on a local area network. Subnet for Wired and Wifi must be different ! Gateway A router that serves as an entry point into and exit point out of a network.

  • Page 75: Menu Position

    Bottom Left Bottom Right 12.6 Start Up Logo You can use this function to have the projector display the Barco logo in the start up screen. Set to display the Barco logo during start up and to display a blank image.

  • Page 76: Trigger1 ~2

    12.Control 12.9 Trigger1 ~2 The projector comes with two sets of Trigger output. You can configure two different devices connected to the projector via the trigger ports to be automatically turned on when the projector is on. There will be a 2-3 second delay prior to activation to prevent operation of this function when the user is choosing the desired aspect ratio.

  • Page 77: Service

    13.Service 13. SERVICE Overview • Service menu overview • Use this function to display the projector's message. 13.1 Service menu overview Model Serial Number Software Version Active/PIP source Pixel Clock Read-only information Signal Format H/V Refresh Rate Lamp1 Run Time SERVICE Lamp2 Run Time Lamp1 Hour Reset...

  • Page 78: Service Message Of The Projector

    13.Service 13.2 Service message of the projector The functions covered in this unit relate to the display of some basic information about the projector. Memory of the custom timing files will be erased in the Factory Reset operation • Model: the designated model number of the projector. • Serial Number: the designated serial number of the projector.

  • Page 79: Maintenance

    14.Lamp and Filter Maintenance 14. MAINTENANCE 14.1 Lamp Replacement The lifecycle of ordinary projection lamp typically lasts for 2500 hours before requiring replacement (different lamp configurations will affect lamp life). From the OSD Menu, you can go to " page 53: 10.8 Lamp1 Run Time ".
  • Page 80 14.Lamp and Filter Maintenance 4. Grasp the metal rod on the lamp cover and pull the lamp out. 5. Insert the new lamp in the direction shown in the illustration into the lamp assembly; tighten the two screws using a screw diver and make sure the lamp is firmly secured to prevent the lamp from shaking or poor contact.

  • Page 81: Replace The Filter (For Inlet Ventilation)

    14.Lamp and Filter Maintenance 14.2 Replace the filter (for inlet Ventilation) Make sure to replace the filter when it is required to keep the air intake clear of dust, and prevent possible over temperature issue of the projector due to the clog of filter. AUTION: The high density filter must be replaced on a regular basis, depending on the environment condi- tions of the projector.
  • Page 82 14.Lamp and Filter Maintenance 3. Insert new filter. Black side White side White side Black side 4. Tighten the five screws of left side cover. RLM W14 08/20/2014...

  • Page 83: Clean The Dust Filter(For Outlet Ventilation)

    14.Lamp and Filter Maintenance 14.3 Clean the dust filter(for outlet Ventilation) 1. Remove most contamination with a vacuum cleaner. 2. Blow remaining dust away with compressed air in an other room or outside. 14.4 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces, we have developed recommendations for cleaning.

  • Page 84: Simple Troubleshooting

    14.Lamp and Filter Maintenance 14.6 Simple troubleshooting The following table offers a list of common problems with projectors and how to troubleshoot. If the recommended solutions fail to resolve your problem, contact your local dealer to arrange for servicing; do not attempt to service the projector by yourself.
  • Page 85 14.Lamp and Filter Maintenance Problem Possible cause Solution 1. The lens may not be in focus. 1. Adjust Lines focus. 2. The temperature or humidity of the 2. Turn of the projector first and wait for the projector's working environment may have moisture in the projector to evaporate.

  • Page 86: Projector Specification

    15.Projector Specifications 15. PROJECTOR SPECIFICATION 15.1 Specifications Description Specifications Projector type 3-chip DLP projector Technology 0,96" DMD x 3 Resolution 1920 × 1200 (Native) Brightness 13500 ANSI lumen 14500 center Contrast ratio 1650 : 1 Brightness uniformity ANSI Aspect Ratio 16:10 Lens type TLD+ lens...

  • Page 87: Standard Source Files

    15.Projector Specifications 15.2 STANDARD SOURCE FILES HDMI / HDBaseT Frame Signal Resolution Format Rate 640×480 59.94 640×480 74.99 640×480 800×600 60.32 800×600 800×600 85.06 848×480 47.95 848×480 59.94 1024×768 1024×768 1024×768 1280×720 47.95 1280×1024 60.02 1280×1024 75.02 1280×1024 85.02 1600×1200 1920×1080 47.95 1680×1050...

  • Page 88: Dimension

    15.Projector Specifications 15.3 Dimension 504.8mm 631mm 277mm RLM W14 08/20/2014...

  • Page 89: Environmental Information

    Mercury Notice Lamp(s) Contain Mercury. Dispose According to Local, State, Federal Law. This Barco product consists of materials that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws: • Within this system, the lamp in the projector contains mercury. 16.2 Rohs compliance Turkey RoHS compliance Türkiye Cumhuriyeti: EEE Yönetmeli ine Uygundur.
  • Page 90 16.Environmental information 本产品中包含的有毒有害物质/成分的名称和含量。 RLM W14 08/20/2014...
