PANEL DESCRIPTION

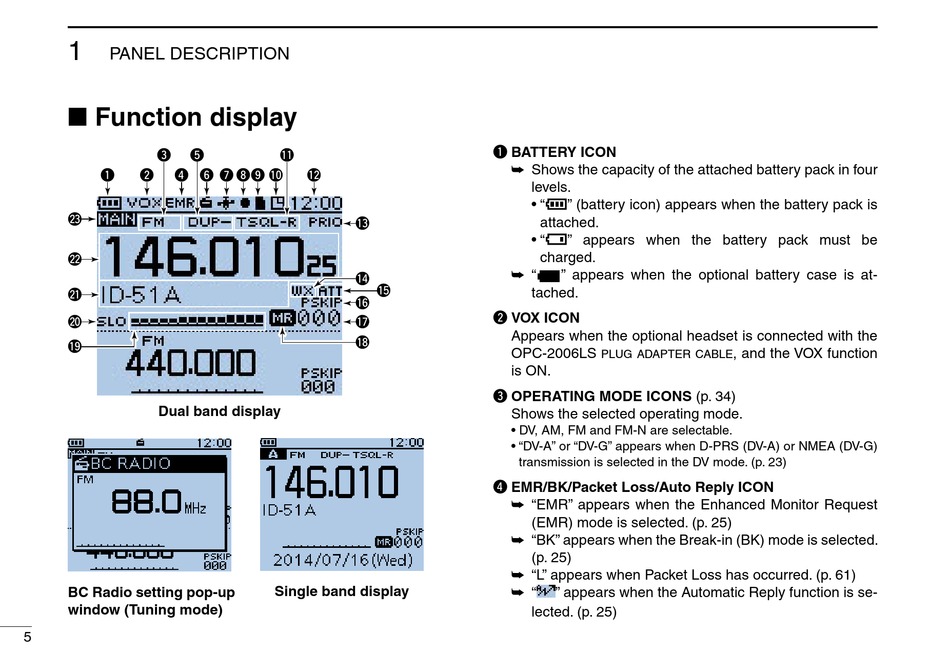

■ Function display

e t
q w r y u io !0
@3
@2
@1
@0
!9
Dual band display
BC Radio setting pop-up
window (Tuning mode)
5
!1
!2
!3
!4
!5
!6
!7
!8
Single band display
q BATTERY ICON
Shows the capacity of the attached battery pack in four
➥
levels.
• " " (battery icon) appears when the battery pack is
attached.
• " " appears when the battery pack must be
charged.
" " appears when the optional battery case is at-
➥
tached.
w VOX ICON
Appears when the optional headset is connected with the
OPC-2006LS
plug adapter cable
is ON.
e OPERATING MODE ICONS (p. 34)
Shows the selected operating mode.
• DV, AM, FM and FM-N are selectable.
• "DV-A" or "DV-G" appears when D-PRS (DV-A) or NMEA (DV-G)
transmission is selected in the DV mode. (p. 23)
r EMR/BK/Packet Loss/Auto Reply ICON
"EMR" appears when the Enhanced Monitor Request
➥
(EMR) mode is selected. (p. 25)
"BK" appears when the Break-in (BK) mode is selected.
➥
(p. 25)
"L" appears when Packet Loss has occurred. (p. 61)
➥
" " appears when the Automatic Reply function is se-
➥
lected. (p. 25)
, and the VOX function
