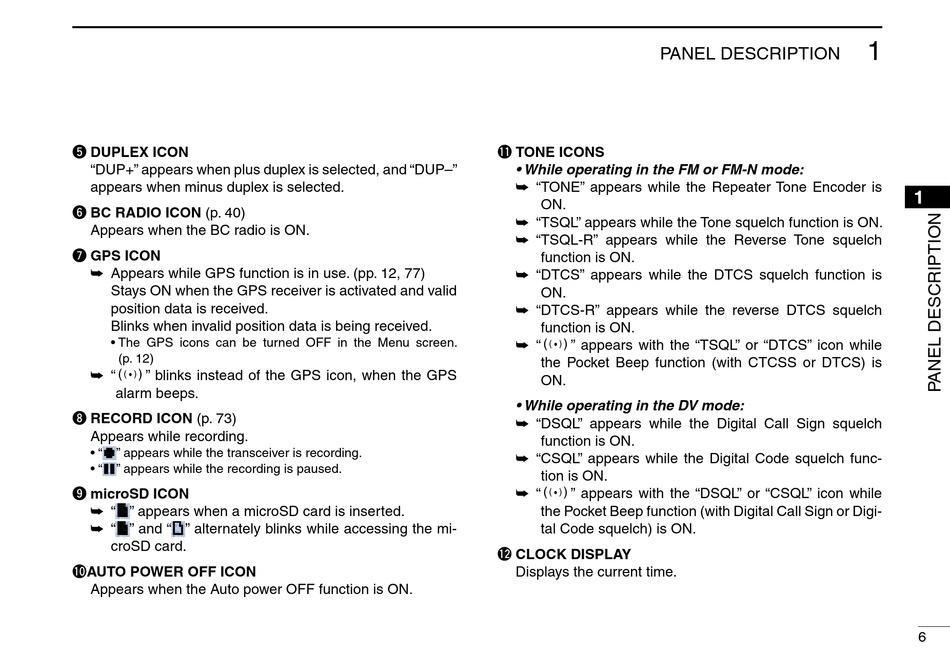

t DUPLEX ICON
"DUP+" appears when plus duplex is selected, and "DUP–"
appears when minus duplex is selected.
y BC RADIO ICON (p. 40)
Appears when the BC radio is ON.
u GPS ICON
Appears while GPS function is in use. (pp. 12, 77)
➥
Stays ON when the GPS receiver is activated and valid
position data is received.
Blinks when invalid position data is being received.
• The GPS icons can be turned OFF in the Menu screen.
(p. 12)
➥ S" blinks instead of the GPS icon, when the GPS
"
alarm beeps.
i RECORD ICON (p. 73)
Appears while recording.
• " " appears while the transceiver is recording.
• " " appears while the recording is paused.
o microSD ICON
" " appears when a microSD card is inserted.
➥
" " and " " alternately blinks while accessing the mi-
➥
croSD card.
!0 A UTO POWER OFF ICON
Appears when the Auto power OFF function is ON.
PANEL DESCRIPTION
!1 TONE ICONS
• While operating in the FM or FM-N mode:
" TONE" appears while the Repeater Tone Encoder is
➥
ON.
"TSQL" appears while the Tone squelch function is ON.
➥
"TSQL-R" appears while the Reverse Tone squelch
➥
function is ON.
" DTCS" appears while the DTCS squelch function is
➥
ON.
" DTCS-R" appears while the reverse DTCS squelch
➥
function is ON.
➥ S" appears with the "TSQL" or "DTCS" icon while "
the Pocket Beep function (with CTCSS or DTCS) is
ON.
• While operating in the DV mode:
"DSQL" appears while the Digital Call Sign squelch
➥
function is ON.
"CSQL" appears while the Digital Code squelch func-
➥
tion is ON.
➥ S" appears with the "DSQL" or "CSQL" icon while
"
the Pocket Beep function (with Digital Call Sign or Digi-
tal Code squelch) is ON.
!2 CLOCK DISPLAY
Displays the current time.
