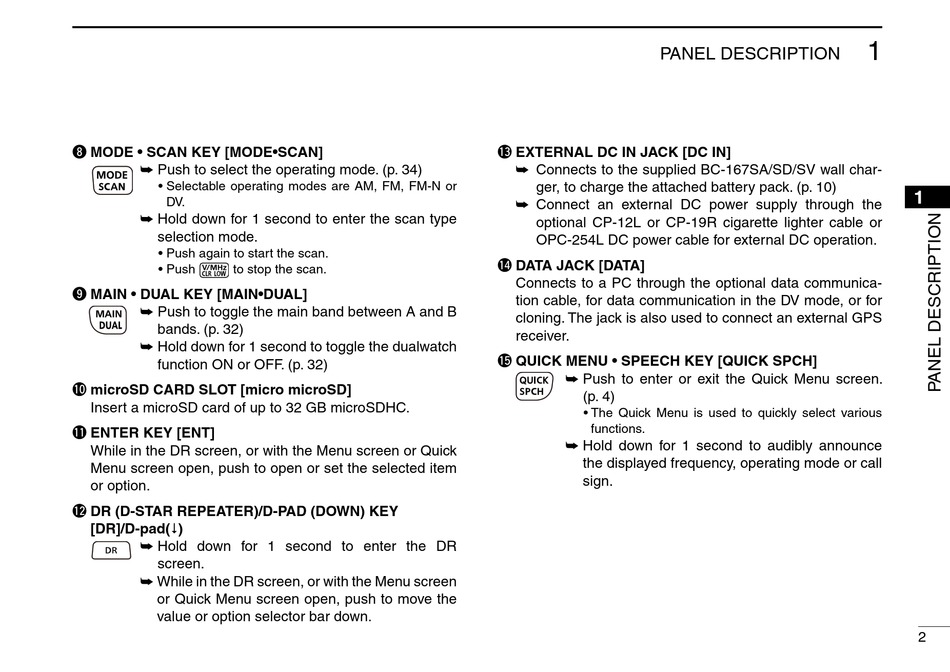

Icom ID-51A Basic Instructions page 15

i MODE • SCAN KEY [MODE•SCAN]
➥ Push to select the operating mode. (p. 34)
• Selectable operating modes are AM, FM, FM-N or
DV.
➥ Hold down for 1 second to enter the scan type
selection mode.
• Push again to start the scan.
• Push to stop the scan.
o MAIN • DUAL KEY [MAIN•DUAL]
➥ Push to toggle the main band between A and B
bands. (p. 32)
➥ Hold down for 1 second to toggle the dualwatch
function ON or OFF. (p. 32)
!0 microSD CARD SLOT [micro microSD]
Insert a microSD card of up to 32 GB microSDHC.
!1 ENTER KEY [ENT]
While in the DR screen, or with the Menu screen or Quick
Menu screen open, push to open or set the selected item
or option.
!2 DR (D-STAR REPEATER)/D-PAD (DOWN) KEY
[DR]/D-pad()
➥ Hold down for 1 second to enter the DR
screen.
➥ While in the DR screen, or with the Menu screen
or Quick Menu screen open, push to move the
value or option selector bar down.
PANEL DESCRIPTION
!3 EXTERNAL DC IN JACK [DC IN]
Connects to the supplied BC-167SA/SD/SV wall char-
➥
ger, to charge the attached battery pack. (p. 10)
Connect an external DC power supply through the
➥
optional CP-12L or CP-19R cigarette lighter cable or
OPC-254L DC power cable for external DC operation.
!4 DATA JACK [DATA]
Connects to a PC through the optional data communica-
tion cable, for data communication in the DV mode, or for
cloning. The jack is also used to connect an external GPS
receiver.
!5 QUICK MENU • SPEECH KEY [QUICK SPCH]
➥ Push to enter or exit the Quick Menu screen.
(p. 4)
• The Quick Menu is used to quickly select various
functions.
➥ Hold down for 1 second to audibly announce
the displayed frequency, operating mode or call
sign.
