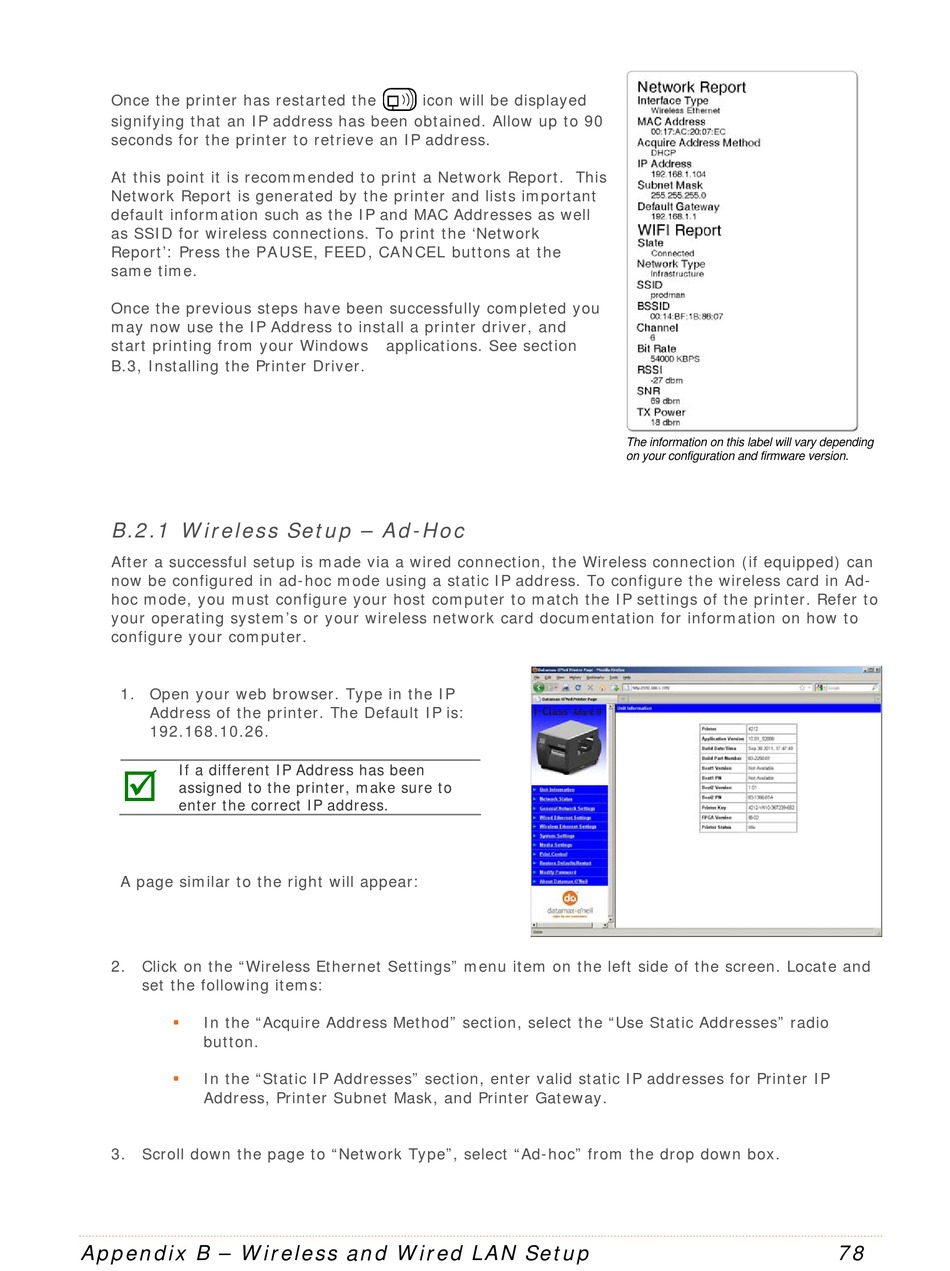

B.2.1 Wireless Setup – Ad-Hoc - Datamax I-Class Mark II Operator's Manual

Once the printer has restarted the
signifying that an IP address has been obtained. Allow up to 90
seconds for the printer to retrieve an IP address.
At this point it is recommended to print a Network Report. This
Network Report is generated by the printer and lists important
default information such as the IP and MAC Addresses as well
as SSID for wireless connections. To print the 'Network
Report': Press the PAUSE, FEED, CANCEL buttons at the
same time.
Once the previous steps have been successfully completed you
may now use the IP Address to install a printer driver, and
start printing from your Windows
B.3, Installing the Printer Driver.
B.2.1 Wireless Setup – Ad-Hoc
After a successful setup is made via a wired connection, the Wireless connection (if equipped) can
now be configured in ad-hoc mode using a static IP address. To configure the wireless card in Ad-
hoc mode, you must configure your host computer to match the IP settings of the printer. Refer to
your operating system's or your wireless network card documentation for information on how to
configure your computer.
1. Open your web browser. Type in the IP
Address of the printer. The Default IP is:
192.168.10.26.
If a different IP Address has been

assigned to the printer, make sure to
enter the correct IP address.
A page similar to the right will appear:
2. Click on the "Wireless Ethernet Settings" menu item on the left side of the screen. Locate and
set the following items:
In the "Acquire Address Method" section, select the "Use Static Addresses" radio

button.
In the "Static IP Addresses" section, enter valid static IP addresses for Printer IP

Address, Printer Subnet Mask, and Printer Gateway.
3. Scroll down the page to "Network Type", select "Ad-hoc" from the drop down box.
Appendix B – Wireless and Wired LAN Setup
icon will be displayed
applications. See section
The information on this label will vary depending
on your configuration and firmware version.
78
