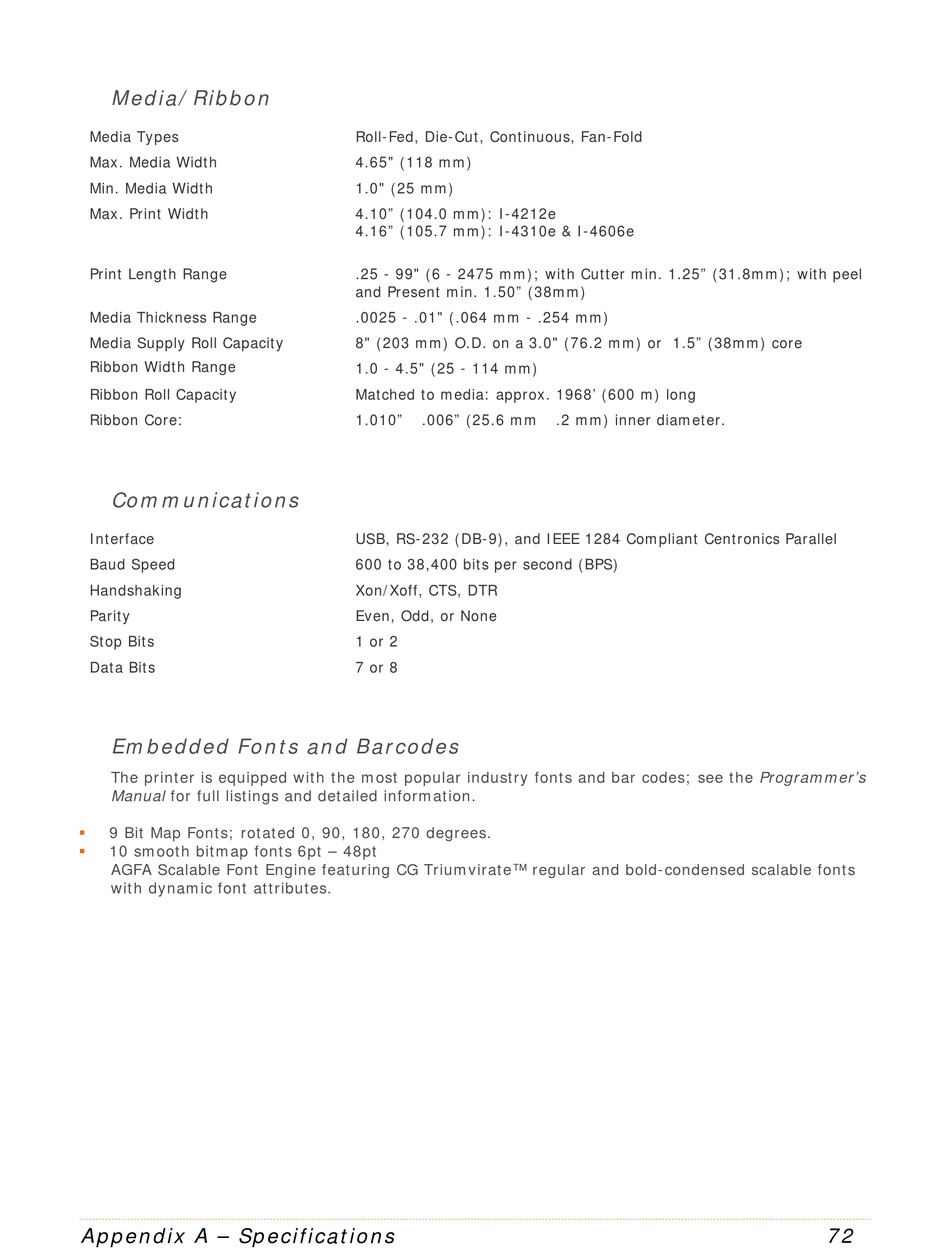

Datamax I-Class Mark II Operator's Manual page 78

Media/Ribbon
Media Types
Max. Media Width
Min. Media Width
Max. Print Width
Print Length Range
Media Thickness Range
Media Supply Roll Capacity
Ribbon Width Range
Ribbon Roll Capacity
Ribbon Core:
Communications
Interface
Baud Speed
Handshaking
Parity
Stop Bits
Data Bits
Embedded Fonts and Barcodes
The printer is equipped with the most popular industry fonts and bar codes; see the Programmer's
Manual for full listings and detailed information.
9 Bit Map Fonts; rotated 0, 90, 180, 270 degrees.

10 smooth bitmap fonts 6pt – 48pt

AGFA Scalable Font Engine featuring CG Triumvirate™ regular and bold-condensed scalable fonts
with dynamic font attributes.
Appendix A – Specifications
Roll-Fed, Die-Cut, Continuous, Fan-Fold
4.65" (118 mm)
1.0" (25 mm)
4.10" (104.0 mm): I-4212e
4.16" (105.7 mm): I-4310e & I-4606e
.25 - 99" (6 - 2475 mm); with Cutter min. 1.25" (31.8mm); with peel
and Present min. 1.50" (38mm)
.0025 - .01" (.064 mm - .254 mm)
8" (203 mm) O.D. on a 3.0" (76.2 mm) or 1.5" (38mm) core
1.0 - 4.5" (25 - 114 mm)
Matched to media: approx. 1968' (600 m) long
1.010" .006" (25.6 mm
USB, RS-232 (DB-9), and IEEE 1284 Compliant Centronics Parallel
600 to 38,400 bits per second (BPS)
Xon/Xoff, CTS, DTR
Even, Odd, or None
1 or 2
7 or 8
.2 mm) inner diameter.
72
