Printhead Pressure Adjustment - Datamax I-Class Mark II Operator's Manual

5 . 4 P r i n t h e a d
5 . 4 P r i n t h e a d
5 . 4 P r i n t h e a d
Printhead Pressure Adjustment should only be performed after attempting to improve print quality
through the use of other print quality controls.
A. With media loaded, download your label format (or use a Test Menu format) then begin
printing a small batch of labels.
B. While observing the printed output, turn each Pressure Adjustment Screw (use a small coin or
screwdriver) by the same amount until the image is complete, with even contrast:
Counterclockwise (+) to increase applied pressure, or;

Clockwise (-) to decrease applied pressure.


Ensure that each arrow points in the same direction.
Chapter 5 – Maintenance and Adjustments
P r e s s u r e A d j u
P r e s s u r e A d j u
P r e s s u r e A d j u
s t m e n t
s t m e n t
s t m e n t


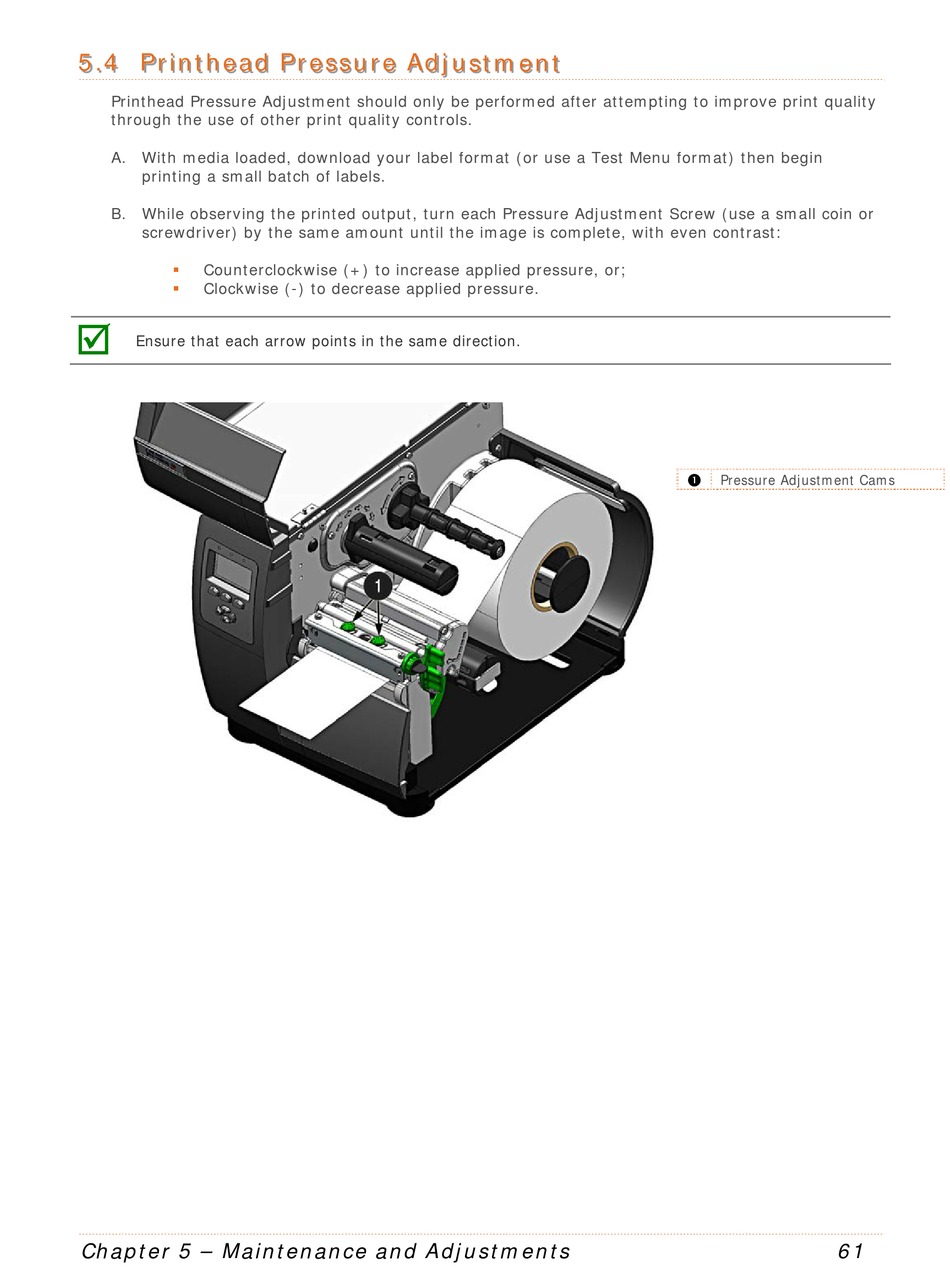

Pressure Adjustment Cams
